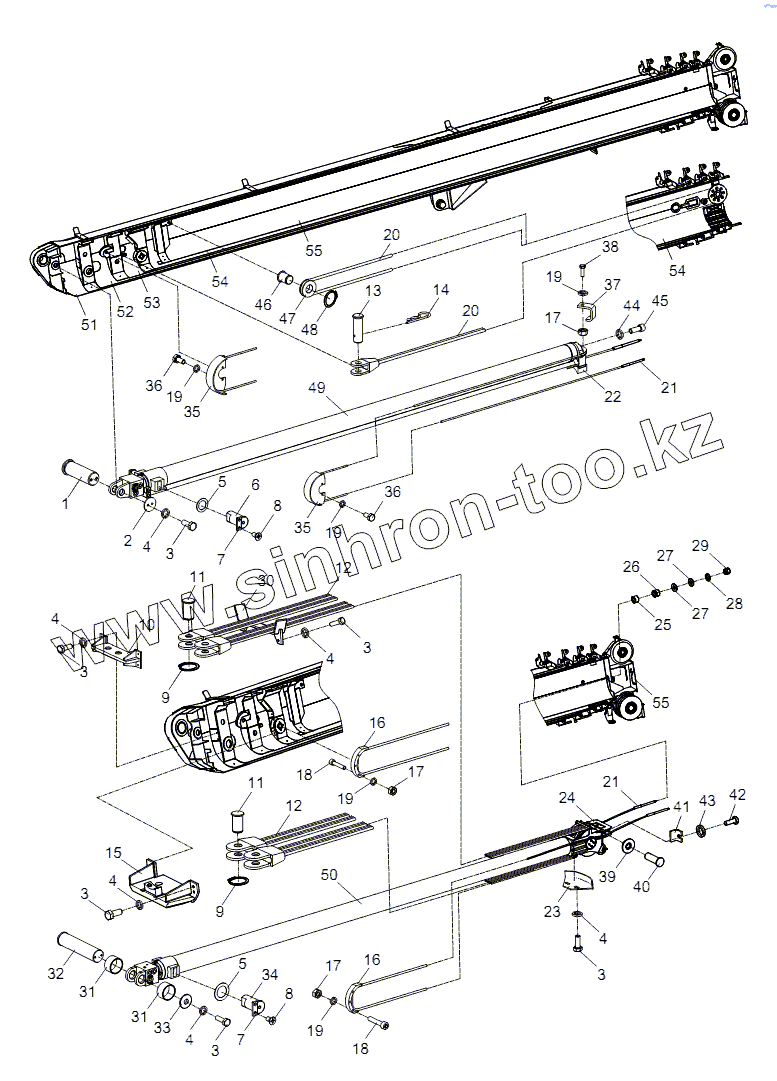

Каталог запасных частей к технике: Zoomlion RT-551 (4x4). TELESCOPING SYSTEM D00631171810000000Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
3
3
3
3
4
4
4
4
4
4
5
5
6
7
7
8
8
9
9
10
11
11
12
12
13
14
15
16
16
17
17
17
18
18
19
19
19
19
19
20
20
21
21
22
23
24
25
26
27
27
28
29
30
31
31
32
33
34
35
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
55
55
Позиция на иллюстрации Заводской номер детали Название детали
00631171810000000 00631171810000000 Telescoping system
1 00631221800001010 Pin
2 006340000072 Retaining ring
3 1040000114 Bolt
4 1040300067 Washer
5 00631201801600000 Adjusting pad block
6 00631141800001010 Pin
7 00633091800001080 Baffle
8 1040100075 Screw
9 1040300184 Retainer ring
10 00631141800200000 Securing bracket for wire rope
11 00633230000000064 Shaft
12 00631171800200000 Extension rope I
13 00633230000000030 Pin
14 1040500137 Pin
15 00631141810200001 Wire rope support
16 00631001800001020 Guard board
17 1040200192 Nut
18 1040100031 Screw
19 1040300063 Washer
20 00631171800400000 Boom extension rope II
21 00631171800800000 Retraction rope II
22 00631141801400000 Guide seat
23 00633141802800000 Wire rope protection cover
24 00631141810400000 Roller head assy
25 1040200097 Nut
26 1040200172 Nut
27 00633091800001170 Washer
28 1040300053 Washer
29 1040200170 Nut
30 00633101801400000 Wire rope protection
31 00630931810001020 Spacer sleeve
32 00631141800001020 Shaft
33 00633141800001100 Plate
34 00631141810001010 Pin
35 00633141802000000 Pulley housing
36 1040000098 Bolt
37 00633141800001120 Plate
38 1040000199 Bolt
39 00633230000000053 Roller assy
40 00633230000000049 Shaft
41 00633230000000047 Angle iron
42 1040000109 Bolt
43 1040300062 Washer
44 1040300054 Washer
45 1040100089 Screw
46 00633141802200000 Wheel
47 00633141800001130 Pin
48 1040300096 Retainer ring
49 CylinderI Telescoping cylinder I
50 CylinderII Telescoping cylinder II
51 Basicboom Basic boom assy
52 Boomsection1 Telescopic boom section 1 assy
53 Boomsection2 Telescopic boom section 2 assy
54 Boomsection3 Telescopic boom section 3 assy
55 Boomsection4 Telescopic boom section 4 assy
