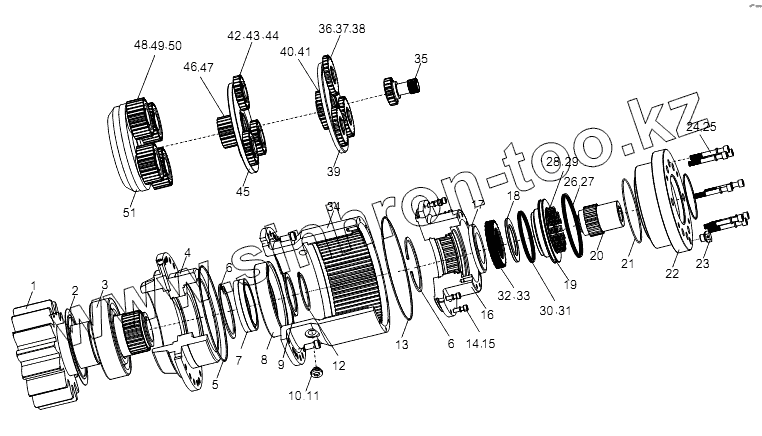

Каталог запасных частей к технике: Zoomlion RT-35. REDUCER D1030200843_100014Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
Позиция на иллюстрации Заводской номер детали Название детали
1030200843 1030200843 Reducer
1 1039802437 Output gear
2 1039800668 Bearing dust cover
3 1039801996 Bearing
4 1039802438 Bearing seat
5 1039800654 O-ring
6 1039800642 Circlip
7 1039800652 Oil seal
8 1039800659 Bearing
9 1039800680 Output shaft washer
10 1039800661 Plug
11 1039800651 Seal ring
12 1039800648 Retaining ring for shaft
13 1039800655 O-ring
14 1039800638 Hexagon screw
15 1039800640 Spring washer
16 1039802439 Piston housing
17 1039800682 Washer
18 1039800681 Adjusting washer
19 1039802440 Piston
20 1039802441 Coupling spindle
21 1039800653 O-ring
22 1039802442 Input flange
23 1039800660 Ventilation plug
24 1039802443 Hexagon screw
25 1039800641 Spring washer
26 1039800667 X-ring
27 1039800649 Nylon retaining ring
28 1039800662 Spring
29 1039800663 Spring
30 1039800666 X-ring
31 1039800650 Nylon retaining ring
32 1039800664 Stator plate
33 1039800665 Rotor plate
34 1039802444 Ring gear
35 1039802445 Center gear
36 1039802446 Planetary gear
37 1039800658 Bearing
38 1039800643 Retaining ring for shaft
39 1039802447 Planetary carrier
40 1039800673 Center gear
41 1039800647 Shaft for retaining ring
42 1039800670 Planetary gear
43 1039800657 Bearing
44 1039800644 Circlip for shaft
45 1039800675 Secondary planetary carrier
46 1039800674 Center gear
47 1039800646 Retaining ring for shaft
48 1039800671 Planetary gear
49 1039800656 Bearing
50 1039800645 Retaining ring for shaft
51 1039800676 Planetary carrier
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
