Каталог запасных частей к технике: Zoomlion RT-35. NAME PLATE (ENGLISH VERSION) D00755707010000000Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
17
18
19
19
19
20
20
21
21
22
23
23
24
24
24
24
24
25
25
25
25
26
26
27
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
47

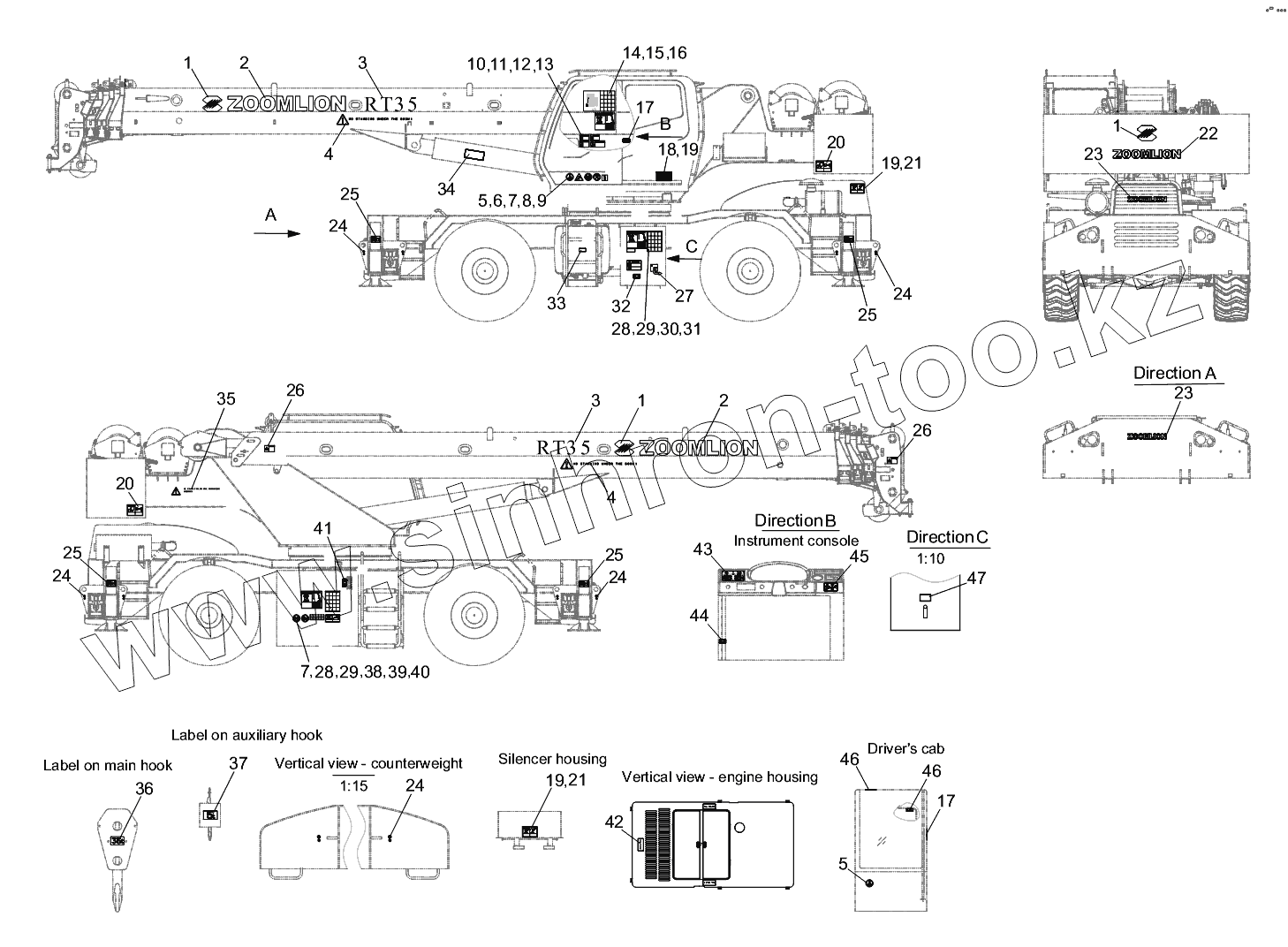

Позиция на иллюстрации Заводской номер детали Название детали
00755707010000000 00755707010000000 Name plate
1 00755909730401010 ZOOMLION logo I
2 00755909730401020 ZOOMLION logo II
3 00755709700401030 Product signs
4 00755909730401040 Warning sign I
5 00755917000001010 Safety sign
6 00755917000001020 Safety sign
7 00755917000001030 Safety sign
8 00755917000001040 Safety sign
9 00755917000001250 Warning sign
10 00755917000001510 Warning sign
11 00755917000001520 Warning sign
12 00755917000001530 Warning sign
13 00755917000001570 Warning sign
14 00755707000001010 Lifting height curve
15 00755917000001070 Warning sign
16 00755917000001080 Warning sign
17 00755917000001220 Illustration label
18 006340000252 Name plate, rough terrain crane
19 1040400103 Rivet
20 00755917000001090 Warning sign
21 00755917000001110 Warning sign
22 00755909730401050 ZOOMLION logo III
23 006340000102 Name plate
24 00755917000001130 Lifting sign
25 00755917000001100 Warning sign
26 00755917000001550 Warning sign
27 00755917000001260 Illustration label
28 00755917000001170 Warning sign
29 00755917000001140 Warning sign
30 00755917000001320 Label, control box
31 00755917000001180 Warning sign
32 00755917000001330 Sign, power supply
33 00755917000001540 Sign, fuel tank
34 00755917000001500 Safety sign
35 00755909730401060 Warning sign II
36 00755707000001020 Label on main hook
37 00755917000001200 Label on auxiliary hook
38 00755917000001150 Warning sign
39 00755917000001300 Sign, hydraulic oil
40 00755917000001160 Warning sign
41 00755917000001461 Sign, oil level
42 00755917000001490 Warning sign
43 00755917000001480 Instrument panel
44 00755907000001210 Illustration label
45 00755917000001230 Illustration label
46 00755917000001120 Warning sign
47 00755917000001340 Sign, power switch
48 00755917000001350 Sign, power switch
49 00755917010001240 Sign, pressure gauge A
50 00755917010001250 Sign, pressure gauge B
51 00755700700001410 Sign, valve
52 00755700700001420 Sign, valve pressure
53 00755917010001260 Sign, oil filler
54 00755917010001270 Sign, pressure testing port A
55 00755917010001280 Sign, pressure testing port B
