5. CENTRE REVOLVING JOINT INSTALLATION D00755704810200001Y

Каталог запасных частей к технике: Zoomlion RT-35. CENTRE REVOLVING JOINT INSTALLATION D00755704810200001Y

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 33X-4Z 47X-5RZ K56X-6RZ PL2304 (2021) QUY260CR-32Y QY55V53232Z RN (90-110 л.с.) RS (2021) RT-100 (2013) RT-35 (2013) RT-55 (2013) RT-551 (4x4) (2013) RT-75 (2013) ZCC1100H (2014) ZD160T(S,SH, CS)-3 (2012) ZE205E (2013) ZLJ5480JQZV3 (2013) ZLJ5500V3 (2013) ZLJ5550JQZV3.2 (2016) ZT20J (2019) ZT68J (2019)

Схема > Не выбрано Remarks RT35-2 ROUGH TERRAIN CRANE D00755700000020000Y BASIC BOOM ASSY D00755708500000000Y SUPPORT ASSY D00755708500400000Y TELESCOPIC BOOM SECTION 1 ASSY D00755708600000000Y PULLEY ASSY D00755908600400000Y SUPPORT ASSY D00755708600400000Y TELESCOPIC BOOM SECTION 2 ASSY D00755708700000000Y CABLE GUIDE PULLEY D00755708700400000Y GUIDE PULLEY ASSY D00755708700600000Y SUPPORTING SEAT ASSY D00755708700800001Y TELESCOPIC BOOM SECTION 3 ASSY D00755708800000000Y PULLEY ASSY D00755708800400000Y ROOSTER SHEAVE D00755701200000000Y PULLEY ASSY D00755708800400000Y MAIN BOOM ASSY D00755700100000000Y ROPE GUIDE ASSY D00755700100600000Y MAIN BOOM AND DERRICKING CYLINDER NSTALLATION OF RT35 ROUGH TERRAIN CRANE D00755704700400001Y JIB D00755700200000002Y ROLLER D00755900201000001Y PULLEY ASSY. 1 D00755700201800000Y PULLEY ASSY. D00755708800400000Y ROLLER ASSY. D00755700202600000Y JIB INSTALLATION D00755704700800000Y TELESCOPING SYSTEM D00755701800000000Y ROLLER ASSY. D00755701800200000 GUIDE PULLEY ASSY. D00755701800230000Y DERRICKING CYLINDER D00755708400300000_6400Y TELESCOPING CYLINDER D00755708400100000_6400Y SECURING DEVICE FOR HOOK D00755914300000000Y NAME PLATE (CHINESE ANS ENGLISH VERSIONS) D00755707020000000Y NAME PLATE (ENGLISH VERSION) D00755707010000000Y TRANSMISSION AND ENGINE INSTALLATION D00757701700000002Y COOLING SYSTEM D00757701300000002Y INTERCOOLING SYSTEM D00757700900000001Y AIR INTAKE SYSTEM D00757701400000001Y AIR FILTER D1000100162_30507Y EXHAUST SYSTEM D00757701200000002Y FUEL SUPPLY SYSTEM D00757701100000002Y PREHEATING STARTER D00757700800000000Y STEERING SYSTEM D00757703420000000Y STEERING CYLINDER D00757708400900000_6400Y STEERING SYSTEM D00757703400000000Y STEERING CYLINDER D00757708420900000_6400Y ENGINE HOUSING AND ITS INSTALLATION D00757705100000002Y TOOLBOX INSTALLATION D00757709400000001Y REAR SUSPENSION D00757703320000000Y SUSPENSION CYLINDER D00757708401100000_6400Y WHEEL AND RIM D00757703120000000Y PROPELLER SHAFT ASSEMBLY D00757702220000000Y CHASSIS FRAME ASSEMBLY D00757702820000000Y TIRE HOUSING D00757705200000002Y HORIZONTAL CYLINDER D00755708400500000_6400Y VERTICAL CYLINDER D00755708400700000_6400Y OUTRIGGER ASSEMBLY D00755700800000000Y OUTRIGGER D00755701300000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y SCHEMATIC DIAGRAM - ELECTRICAL SYSTEM (Hirschmann) D00755706140000001Y ELECTRICAL SYSTEM (Hirschmann)(OPERATOR’S CAB ELECTRICS) D00755706240000001Y ELECTRICAL SYSTEM (Hirschmann)(SLEWING TABLE ELECTRICS) D00755706240000001Y ELECTRICAL SYSTEM (Hirschmann)(BOOM ELECTRIC) D00755706240000001Y ELECTRICAL SYSTEM (Hirschmann)(CHASSIS FRAME ELECTRICS 1) D00755706240000001Y ELECTRICAL SYSTEM (Hirschmann)(CHASSIS FRAME ELECTRICS 2) D00755706240000001Y ELECTRICAL SYSTEM (GREER) (OPERATOR'S CAB ELECTRICS) D00755706210000001Y ELECTRICAL SYSTEM (GREER) (SLEWING TABLE ELECTRICS) D00755706210000001Y ELECTRICAL SYSTEM (GREER) (BOOM ELECTRIC) D00755706210000001Y ELECTRICAL SYSTEM (GREER) (CHASSIS FRAME ELECTRICS 1) D00755706210000001Y ELECTRICAL SYSTEM (GREER) (CHASSIS FRAME ELECTRICS 2) D00755706210000001Y PIPE LAYOUT - SUPERSTRUCTURE HYDRAULIC SYSTEM (HOIST MECHANISM) D00755701620000001Y PIPE LAYOUT - SUPERSTRUCTURE HYDRAULIC SYSTEM (DERRICKING MECHANISM) D00755701620000001Y PIPE LAYOUT - SUPERSTRUCTURE HYDRAULIC SYSTEM (TELESCOPING MECHANISM) D00755701620000001Y PIPE LAYOUT - SUPERSTRUCTURE HYDRAULIC SYSTEM (SLEWING MECHANISM) D00755701620000001Y PIPE LAYOUT - SUPERSTRUCTURE HYDRAULIC SYSTEM (AIR CONDITIONING) D00755701620000001Y PIPE LAYOUT - SUPERSTRUCTURE HYDRAULIC SYSTEM (CENTRE REVOLVING JOINT) D00755701620000001Y PIPE LAYOUT - SUPERSTRUCTURE HYDRAULIC SYSTEM (LEFT JOYSTICK CONTROL MODULE) D00755701620000001Y PIPE LAYOUT - SUPERSTRUCTURE HYDRAULIC SYSTEM (RIGHT JOYSTICK CONTROL MODULE) D00755701620000001Y PIPE LAYOUT - SUPERSTRUCTURE HYDRAULIC SYSTEM (MAIN VALVE) D00755701620000001Y PIPE LAYOUT - SUPERSTRUCTURE HYDRAULIC SYSTEM (DRIVER'S CAB) D00755701620000001Y TURNTABLE VALVE ELEMENT ASSEMBLED (SLEWING CUSHION VALVE INSTALLATION) D00755704810800001Y TURNTABLE VALVE ELEMENT ASSEMBLED (SLEWING BRAKE VALVE INSTALLATION) D00755704810800001Y TURNTABLE VALVE ELEMENT ASSEMBLED (SOLENOID CONTROL VALVE INSTALLATION) D00755704810800001Y TURNTABLE VALVE ELEMENT ASSEMBLED (PIPE FILTER INSTALLATION) D00755704810800001Y TURNTABLE VALVE ELEMENT ASSEMBLED (PILOT-OPERATED VALVE INSTALLATION) D00755704810800001Y TURNTABLE VALVE ELEMENT ASSEMBLED (MAIN VALVE INSTALLATION) D00755704810800001Y TURNTABLE VALVE ELEMENT ASSEMBLED(PRIORITY VALVE INSTALLATION) D00755704810800001Y TURNTABLE VALVE ELEMENT ASSEMBLED(PILOT-OPERATED CONTROL VALVE INSTALLATION) D00755704810800001Y TURNTABLE VALVE ELEMENT ASSEMBLED(A/C CONTROL VALVE INSTALLATION) D00755704810800001Y CAB VALVE ELEMENT ASSEMBLED(JOYSTICK INSTALLATION) D00755914810800000Y CAB VALVE ELEMENT ASSEMBLED( STEP INSTALLATION) D00755914810800000Y SLEWING BRAKE VALVE D1010303988_6500Y SLEWING CUSHION VALVE D1010300495_6500Y SLEWING CUSHION VALVE (PILOT-OPERATED DIRECTIONAL CONTROL VALVE) D1010300495_6500Y SLEWING CUSHION VALVE (DAMPER VALVE) D1010300495_6500Y SLEWING CUSHION VALVE (RELIEF VALVE) D1010300495_6500Y SLEWING CUSHION VALVE (CUSHION VALVE) D1010300495_6500Y PIPE LAYOUT DRAWING, CHASSIS HYDRAULIC SYSTEM (HYDRAULIC RESERVOIR) D00755701720000001Y PIPE LAYOUT DRAWING, CHASSIS HYDRAULIC SYSTEM (GEAR PUMP) D00755701720000001Y PIPE LAYOUT DRAWING, CHASSIS HYDRAULIC SYSTEM (SUSPENSION CYLINDER) D00755701720000001Y PIPE LAYOUT DRAWING, CHASSIS HYDRAULIC SYSTEM (STEERING CYLINDER) D00755701720000001Y PIPE LAYOUT DRAWING, CHASSIS HYDRAULIC SYSTEM (BRAKE SYSTEM) D00755701720000001Y PIPE LAYOUT DRAWING, CHASSIS HYDRAULIC SYSTEM (FRONT OUTRIGGER) D00755701720000001Y PIPE LAYOUT DRAWING, CHASSIS HYDRAULIC SYSTEM (REAR OUTRIGGER) D00755701720000001Y PIPE LAYOUT DRAWING, CHASSIS HYDRAULIC SYSTEM(2-WHEEL / 4-WHEEL DRIVE) D00755701720000001Y CHASSIS FRAME VALVE ELEMENT ASSEMBLED (SLIDING BEAM, OUTRIGGER CONTROL VALVE) D00755704810600000Y CHASSIS FRAME VALVE ELEMENT ASSEMBLED (SLIDING BEAM, FLUID FILLING VALVE) D00755704810600000Y CHASSIS FRAME VALVE ELEMENT ASSEMBLED (SLIDING BEAM, BRAKE VALVE) D00755704810600000Y CHASSIS FRAME VALVE ELEMENT ASSEMBLED (SLIDING BEAM, ACCUMULATOR) D00755704810600000Y CHASSIS FRAME VALVE ELEMENT ASSEMBLED (SLIDING BEAM, HIGH-PRESSURE OIL FILTER) D00755704810600000Y CHASSIS FRAME VALVE ELEMENT ASSEMBLED (SLIDING BEAM, RELIEF CONTROL VALVE BLOCK) D00755704810600000Y CHASSIS FRAME VALVE ELEMENT ASSEMBLED (SLIDING BEAM, STEERING CONTROL VALVE BLOCK) D00755704810600000Y CHASSIS FRAME VALVE ELEMENT ASSEMBLED (SLIDING BEAM ,2-WHEEL / 4-WHEEL DRIVE CHANGEOVER VALVE) D00755704810600000Y CHASSIS FRAME VALVE ELEMENT ASSEMBLED (SLIDING BEAM, SOLENOID VALVE) D00755704810600000Y OIL PUMP DRIVE DEVICE D00755703900000001Y CENTRE REVOLVING JOINT INSTALLATION D00755704810200001Y RELIEF CONTROL VALVE BLOCK D1010302066_102440Y GEAR PUMP D1010000693_102328Y 2-WHEEL / 4-WHEEL DRIVE CHANGEOVER VALVE D1010302467_102440Y SOLENOID VALVE D1010302063_102440Y RADIATOR D1010400111_100026Y CENTRE REVOLVING JOINT D1140109716_6500Y HYDRAULIC OIL TANK D00755703000000001Y HYDRAULIC OIL TANK INSTALLATION D00755704810400000Y SCHEMATIC DIAGRAM - HYDRAULIC SYSTEM D00755701510000000Y SLEWING MECHANISM ASSEMBLY D00755704400000000Y REDUCER D1030200843_100014Y SLEWING BEARING ASSEMBLY D00755704500000000Y SWING LOCK DEVICE D00755705900000000Y HOIST GEAR D00755703500000000Y WINCH REDUCER D1030200814_100013Y DRIVER'S CAB ASSEMBLY D00755705000000000Y DRIVER'S CAB (WINDSHIELD) D1130000414_100037Y DRIVER'S CAB (INSTRUMENT CONSOLE ARRANGEMENT) D1130000414_100037Y DRIVER'S CAB(Front WINDSHILED WIPER SYSTEM) D1130000414_100037Y DRIVER'S CAB (FOOT PEDAL) D1130000414_100037Y DRIVER'S CAB (A/C) D1130000414_100037Y DRIVER'S CAB (SEAT) D1130000414_100037Y DRIVER'S CAB Interior (DECORATIVE PLATE AND GUARD BOARD) D1130000414_100037Y DRIVER'S CAB Interior (DECORATIVE PLATE AND GUARD BOARD) D1130000414_100037Y DRIVER'S CAB (ROOF WIPER SYSTEM AND FAN) D1130000414_100037Y DRIVER'S CAB (ROOF WINDOW) D1130000414_100037Y DRIVER'S CAB (DOOR ASSY) D1130000414_100037Y AIR CONDITIONING D00631267600000000Y SPECIAL A/C D1130100319_100026Y CAB HEATER D00755907510000001Y HEATER D1200300013_102208Y COUNTERWEIGHT ASSEMBLY D00755704700600000Y

22

26

26

26

27

27

32

34

37

38

42

45

229

229

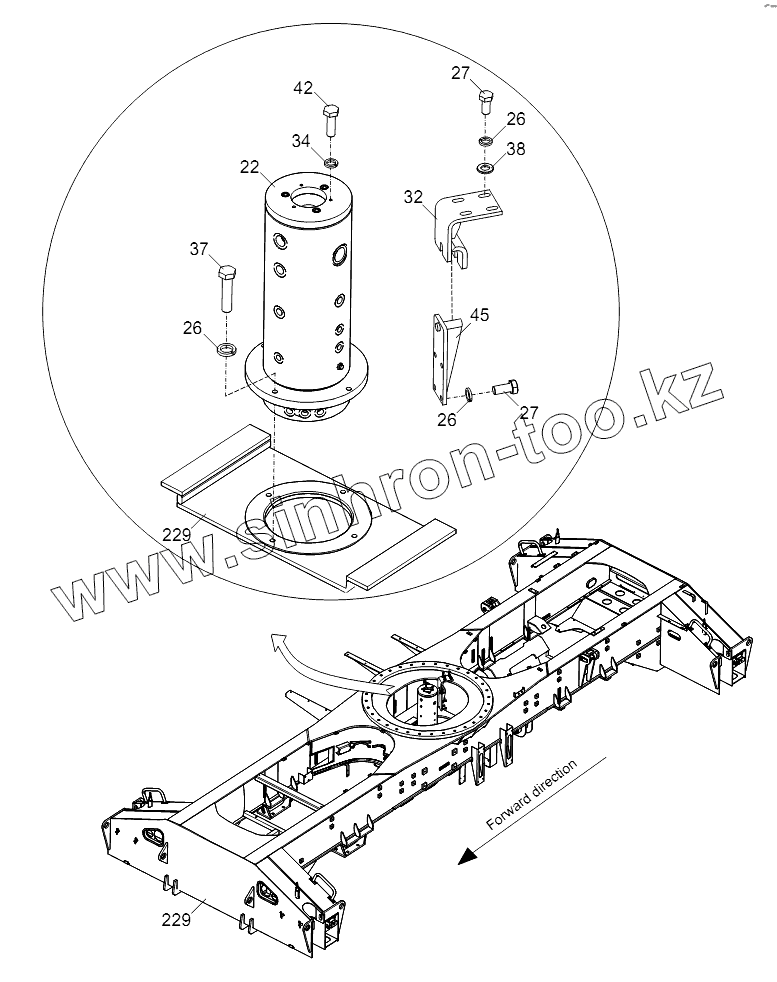

Позиция на иллюстрации	Заводской номер детали		Название детали
22	1140109716		Central revolving joint
26	1040300054		Washer
27	1040000069		Bolt
32	00755704810210000		Bracket
34	1040300063		Washer
37	1040000149		Bolt
38	1040300526		Seal ring
42	1040000288		Bolt
45	00755704810220000		Bracket
229	00757702820000000		Chassis frame assembly
