Каталог запасных частей к технике: Zoomlion RT-100. TELESCOPING MECHANISM

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
6
6
7
8
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
20
21
22
22
22
23
23
23
24
25
26
27
28
28
29
29
30
30
31
32
33
34
35
36
37
37
37
38
38
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
58
59
59
60

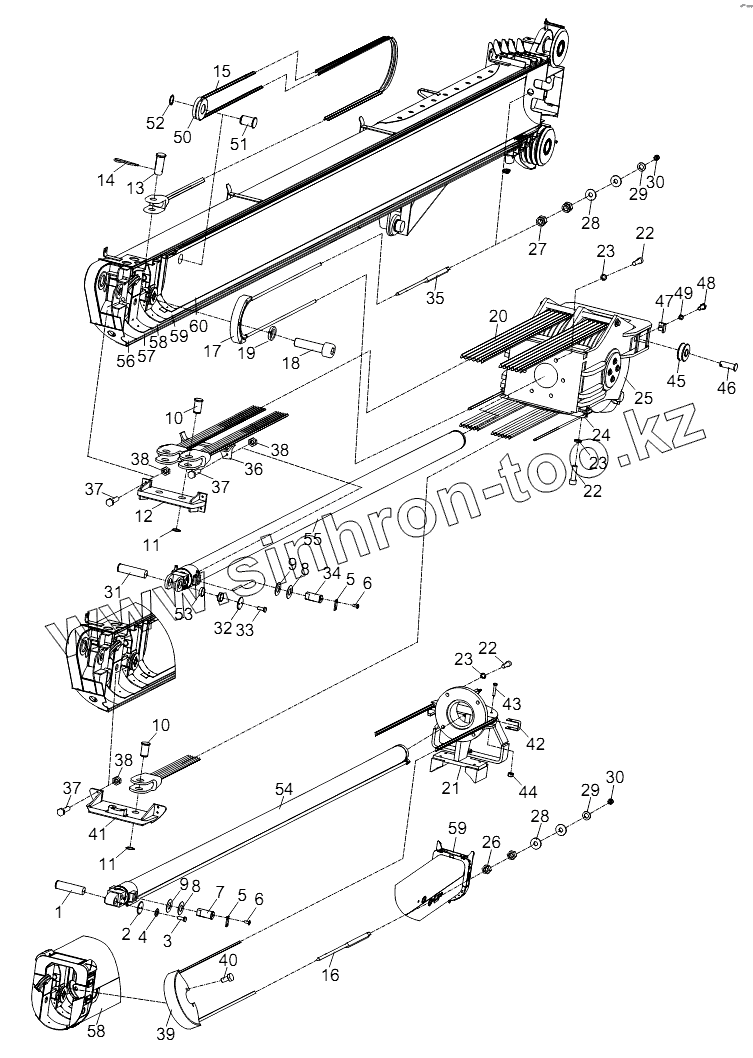

Позиция на иллюстрации Заводской номер детали Название детали
00756301800000000 00756301800000000 Telescoping mechanism
1 00756301800001010 Pin
2 006340000024 Retaining ring 90
3 1040000114 Bolt
4 1040300067 Washer
5 00756301800001020 Baffle
6 1040100075 Screw
7 00756301800001030 Shaft
8 00756301800001040 Adjusting pad
9 00756301800001050 Adjusting pad
10 00756301800001060 Pin
11 1040300017 Retainer ring
12 00756301800200000 Securing bracket for wire rope
13 00756301800001070 Pin
14 006340000029 Spring-loaded pin
15 00756301800400000 Boom extension rope II
16 00756301800600000 Boom retraction rope I
17 00756301800001080 Guard board
18 1040100073 Screw
19 1040300063 Washer
20 00756301800800000 Boom extension rope I
21 00756301801000000 Guide seat
22 1040100089 Screw
23 1040300054 Washer
24 00756301801200000 Wire rope protecting casing
25 00756301801400000 Roller head assy
26 1040200097 Nut
27 1040200741 Nut
28 00755901800001070 Washer
29 1040300053 Washer
30 1040200507 Nut
31 00756301800001100 Shaft
32 006340000005 Retaining ring 120
33 1040000108 Bolt
34 00756301800001110 Shaft
35 00756301801600000 Boom retraction rope II
36 00756301801800000 Wire rope protection
37 1040000152 Bolt
38 1040200113 Nut
39 00756301802000000 Pulley housing
40 1040000098 Bolt
41 00756301802200000 Wire rope support
42 00756301800001120 Baffle
43 1040000199 Bolt
44 1040200192 Nut
45 00755901801200000 Roller
46 00755901800001100 Shaft
47 00755901800001090 Plate
48 1040000109 Bolt
49 1040300062 Washer
50 00756301802400000 Wheel
51 00756301800001130 Pin
52 1040300096 Retainer ring
53 00756301800001140 Sheath
54 TelescopingcylinderI Telescoping cylinder I
55 TelescopingcylinderII Telescoping cylinder II
56 Basicboomassy Basic boom assy
57 Telescopicboom1 Telescopic boom section 1 assy
58 Telescopicboom2 Telescopic boom section 2 assy
59 Telescopicboom3 Telescopic boom section 3 assy
60 Telescopicboom4 Telescopic boom section 4 assy
