Каталог запасных частей к технике: Zoomlion RT-100. NAME PLATE (ENGLISH VERSION)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
5
6
7
8
9
10
11
12
13
13
13
14
14
15
16
16
16
16
16
17
17
18
18
19
19
22
23
24
25
26
27
27
28
28
29
30
31
32
33
34
35
36
37
38
53
54
55
56
56
57
58
59
60
61

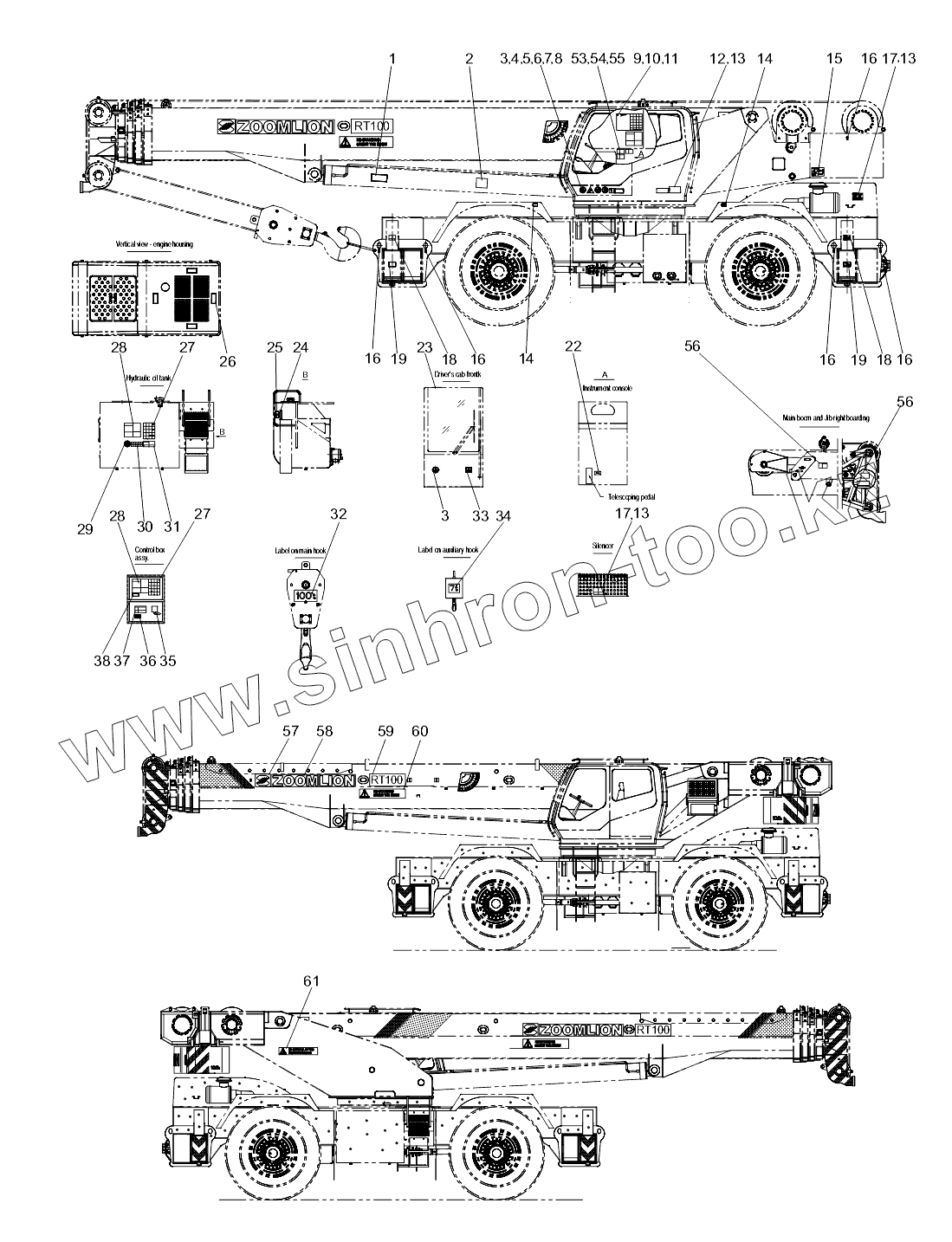

Позиция на иллюстрации Заводской номер детали Название детали
00756307010000000 00756307010000000 Name plate
00756307010000000 00756307010000000 Name plate
1 00755917000001500 Safety sign
2 00756307000001010 Safety sign
3 00755917000001010 Safety sign
4 00755917000001020 Safety sign
5 00755917000001030 Safety sign
6 00755917000001040 Safety sign
7 00755917000001250 Warning sign
8 00755917000001290 Sign, operator qualification requirements
9 00756307000001040 Lifting height curve
10 00755917000001070 Warning sign
11 00755917000001080 Warning sign
12 006340000252 Name plate, rough terrain crane
13 1040400103 Rivet
14 00756307000001050 Sign, tire pressure
15 00755917000001090 Warning sign
16 00755917000001130 Lifting sign
17 00755917000001110 Warning sign
18 00755917000001100 Warning sign
19 00756307000001060 Sign, outrigger support force
20 00755917000001230 Illustration label
21 00755917000001220 Illustration label
22 00755907000001210 Illustration label
23 00755917000001120 Warning sign
24 00755917000001460 Sign, liquid level
25 00755917000001470 Sign, liquid level
26 00755917000001490 Warning sign
27 00755917000001170 Warning sign
28 00755917000001140 Warning sign
29 00755917000001150 Warning sign
30 00755917000001300 Sign, hydraulic oil
31 00755917000001160 Warning sign
32 00756307000001020 Label on main hook
33 00755917000001310 Sign, DO NOT lift person
34 00756307000001030 Label on auxiliary hook
35 00755917000001260 Illustration label
36 00755917000001330 Sign, power supply
37 00755917000001180 Warning sign
38 00755917000001320 Label, control box
39 00755917000001340 Sign, power switch
40 00755917000001350 Sign, power switch
41 00755917000001360 Sign, hook securing position
42 00755917000001370 Sign, towing position
43 00755917000001380 Sign, outrigger float retaining position
44 00755917000001390 Sign, pressure gauge A
45 00755917000001400 Sign, pressure gauge B
46 00755917000001410 Sign, valve
47 00755917000001420 Sign, valve pressure
48 00755917000001430 Sign, oil filler
49 00755917000001440 Sign, pressure testing port A
50 00755917000001450 Sign, pressure testing port B
51 00755707000001480 Instrument panel
52 006340000102 Name plate
53 00755917000001510 Warning sign
54 00755917000001520 Warning sign
55 00755917000001530 Warning sign
56 00755917000001550 Warning sign
57 00755909730401010 ZOOMLION logo I
58 00755909730401020 ZOOMLION logo II
59 00756309700401030 Product sign
60 00755909730401040 Warning sign I
61 00755909730401060 Warning sign II
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
