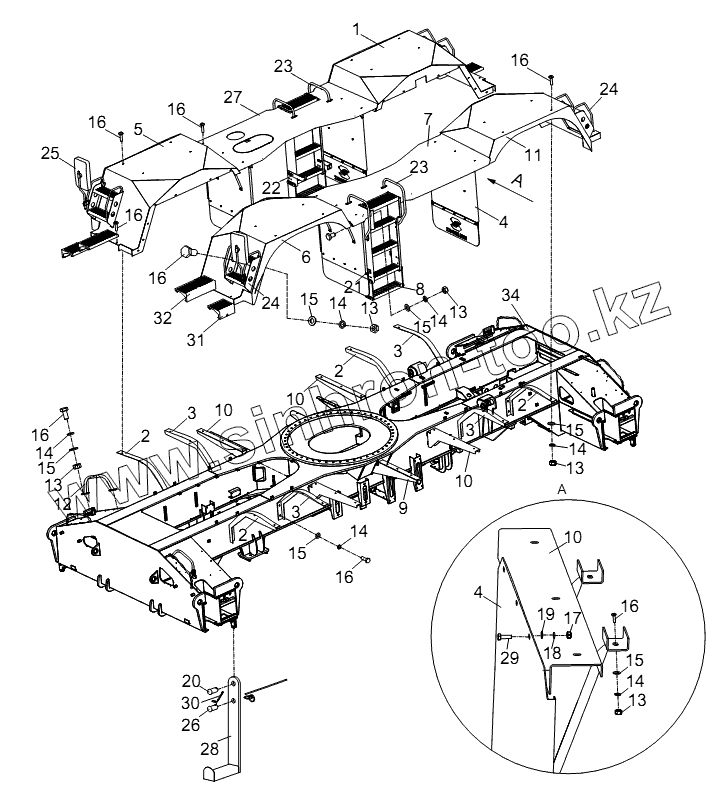

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00758305200000002 | 00758305200000002 | Mudguard and stair installation | |
| 1 | 00758305200900001 | Mudguard | |
| 2 | 00758307800601030 | Mudguard bracket I | |
| 3 | 00758307800601050 | Mudguard bracket | |
| 4 | 00758305200500000 | Mudguard | |
| 5 | 00758305200400001 | Mudguard | |
| 6 | 00758305200100000 | Mudguard | |
| 7 | 00758305200800000 | Cover plate | |
| 8 | 00758305200600000 | Ladder installation I | |
| 9 | 00758307800610000 | Intermediate cover plate bracket | |
| 10 | 00757917800610000 | Bracket welded | |
| 11 | 00758305201000000 | Mudguard | |
| 12 | 00758307800601041 | Handrail | |
| 13 | 1040200113 | Nut | |
| 14 | 1040300067 | Washer | |
| 15 | 1040300061 | Washer | |
| 16 | 1040002433 | Bolt | |
| 17 | 1040200192 | Nut | |
| 18 | 1040300063 | Washer | |
| 19 | 1040300066 | Washer | |
| 20 | 1040500390 | Pin | |
| 21 | 00758305200001070 | Connecting plate | |
| 22 | 00758305200001080 | Support plate | |
| 23 | 00758305200200002 | Stair installation | |
| 24 | 00758305200700000 | Ladder, housing | |
| 25 | 00758115204800001 | Rearview mirror assy | |
| 26 | 00757917810640000 | Securing device | |
| 27 | 00758305201200000 | Cover plate | |
| 28 | 00757917810630000 | Stair welded | |
| 29 | 1040000924 | Bolt | |
| 30 | 1040500005 | Pin | |
| 31 | 00758305200001050 | Pedal | |
| 32 | 00758305200001030 | Big pedal | |
| 33 | 1990300216 | 3M anti-skid pad | |
| 34 | Chassisframe | Chassis frame assembly |
