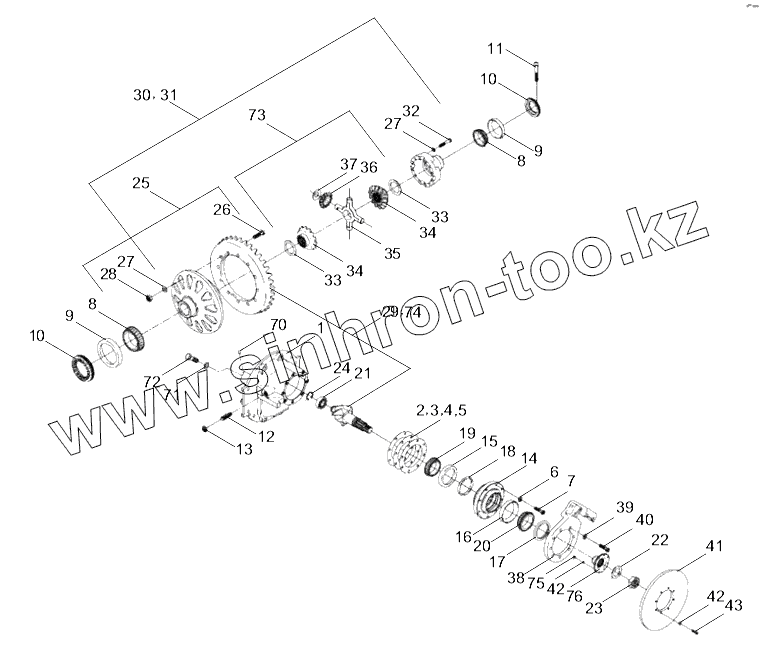

  5. MAIN REDUCER ASSY. EXPLODED VIEWI

Каталог запасных частей к технике: Zoomlion RT-100. MAIN REDUCER ASSY. EXPLODED VIEWI

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
19
19
21
22
23
24
25
26
27
27
28
29
30
31
32
33
33
34
34
35
36
37
38
39
40
41
42
42
43
70
71
72
73
74
75
76
Позиция на иллюстрации Заводской номер детали Название детали
1030100815 1030100815 Front axle
1 1039805476 Carrier & cap assy
2 1039805477 Shim
3 1039805478 Shim
4 1039805479 Shim
5 1039805480 Shim
6 1039804909 Washer
7 1039805055 Bolt
8 1039805481 Cone-bearing
9 1039805482 Bearing cover
10 1039805483 Ring-brg adj, fin.
11 1039804901 Screw
12 1039805484 Screw-thrust
13 1039805485 Nut
14 1039805486 Cage assy-pinion
15 1039805487 Bearing cover
16 1039805488 Bearing cover
17 1039805489 Oil seal
18 1039805490 Repair kit
19 1039805491 Cone-bearing
20 1039805492 Cone-bearing
21 1039805493 Ball bearing
22 1039805494 Seal ring
23 1039805495 Locking nut
24 1039805496 Snap ring
25 1039805497 Repair kit
26 1039805498 Bolt
27 1039804916 Washer
28 1039804917 Locknut
29 1039805499 Gear & pinion assy
30 1039805500 Case-diff, & nest assy
31 1039805501 Case assy-diff.
32 1039805502 Screw
33 1039805503 Thrust washer
34 1039805504 Gear-diff side,fin.
35 1039805505 Differential spider
36 1039805506 Pinion-diff, fin.
37 1039805507 Stop washer
38 1039805508 Adapter-brake, fin.
39 1039805509 Flat washer
40 1039805510 Screw
41 1039805511 Brake disc
42 1039804937 Washer
43 1039804938 Screw
70 1039804965 Ball
71 1039805512 Washer
72 1039805513 Screw
73 1039805514 Differential kit
74 1039805515 Gear set
75 1039804935 Locking nut
76 1039805516 Input flange
