Каталог запасных частей к технике: Zoomlion RT-100. MAIN BOOM INSTALLATION

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 33X-4Z 47X-5RZ K56X-6RZ PL2304 (2021) QUY260CR-32Y QY55V53232Z RN (90-110 л.с.) RS (2021) RT-100 (2013) RT-35 (2013) RT-55 (2013) RT-551 (4x4) (2013) RT-75 (2013) ZCC1100H (2014) ZD160T(S,SH, CS)-3 (2012) ZE205E (2013) ZLJ5480JQZV3 (2013) ZLJ5500V3 (2013) ZLJ5550JQZV3.2 (2016) ZT20J (2019) ZT68J (2019)

Схема > Не выбрано Remarks RT551 ROUGH TERRAIN CRANE BASIC BOOM ASSY TELESCOPIC BOOM SECTION 1 ASSY TELESCOPIC BOOM SECTION 2 ASSY PULLEY ASSY TELESCOPIC BOOM SECTION 3 ASSY PULLEY ASSY TELESCOPIC BOOM SECTION 4 ASSY PULLEY ASSY ROOSTER SHEAVE PULLEY ASSY ROOSTER SHEAVE INSTALLATION MAIN BOOM ASSY ROPE GUIDE ASSY MAIN BOOM INSTALLATION JIB PULLEY ASSY PULLEY ASSY JIB INSTALLATION TELESCOPING MECHANISM GUIDE SEAT ROLLER HEAD ASSY WIRE ROPE SUPPORT TELESCOPING CYLINDER I TELESCOPING CYLINDER II DERRICKING CYLINDER INSTALLATION DERRICKING CYLINDER SECURING DEVICE FOR HOOK NAME PLATE (CHINESE AND ENGLISH VERSIONS) NAME PLATE (ENGLISH VERSION) ENGINE AND TRANSMISSION INSTALLATION PTO OPERATING VALVE SYSTEM ENGINE AND ATATCHMENTS WELDED AIR FILTER ENGINE HOUSING AND ITS INSTALLATION FUEL SUPPLY SYSTEM PROPELLER SHAFT ASSEMBLY FRONT SUSPENSION MAIN REDUCER ASSY. EXPLODED VIEWI MAIN REDUCER ASSY. EXPLODED VIEW II BRAKE ASSY. EXPLODED VIEW AXLE HOUSING ASSY. EXPLODED VIEW HUB REDUCER ASSY. EXPLODED VIEW I HUB REDUCER ASSY. EXPLODED VIEW II REAR SUSPENSION SUSPENSION CYLINDER CARRTER ASSY BRAKE ASSY AXLE SHELL ASSY HOUSING ASSY 1 HOUSING ASSY 2 WHEEL AND RIM STEERING SYSTEM STEERING CYLINDER TOOLBOX AND PLATFORM TOOLBOX MUDGUARD AND STAIR INSTALLATION OUTRIGGER AND ITS CYLINDER INSTALLATION HORIZONTAL CYLINDER VERTICAL CYLINDER OUTRIGGER SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM OPERATOR’S CAB ELECTRICS SLEWING TABLE ELECTRICS BOOM ELECTRICS CHASSIS FRAME ELECTRICS 1 CHASSIS FRAME ELECTRICS 2 CENTRE REVOLVING JOINT INSTALLATION CENTRE REVOLVING JOINT HYDRAULIC OIL TANK INSTALLATION HYDRAULIC OIL TANK RADIATOR OIL PUMP DRIVE DEVICE OUTRIGGER CONTROL VALVE BLOCK INSTALLATION FLUID FILLING VALVE INSTALLATION BRAKE VALVE ASSY INSTALLATION ACCUMULATOR INSTALLATION HIGH-PRESSURE OIL FILTER INSTALLATION RELIEF CONTROL VALVE BLOCK INSTALLATION STEERING CONTROL VALVE BLOCK INSTALLATION 2-WHEEL / 4-WHEEL DRIVE CHANGEOVER VALVE INSTALLATION LOCKING SOLENOID VALVE INSTALLATION RELIEF CONTROL VALVE BLOCK STEERING CONTROL VALVE BLOCK OUTRIGGER CONTROL VALVE BLOCK 2-WHEEL / 4-WHEEL DRIVE CHANGEOVER VALVE LOCKING SOLENOID VALVE OUTRIGGER HYDRAULIC LOCK INSTALLATION SLEWING CUSHION VALVE INSTALLATION SLEWING BRAKE VALVE INSTALLATION SOLENOID CONTROL VALVE INSTALLATION PIPE FILTER INSTALLATION PILOT-OPERATED CONTROL VALVE BLOCK INSTALLATION TELESCOPING DERRICKING VALVE INSTALLATION ELECTRO-HYDRAULIC DIRECTIONAL CONTROL VALVE INSTALLATION WINCH VALVE INSTALLATION PRIORITY VALVE INSTALLATION SOLENOID VALVE BLOCK INSTLLATION PILOT-OPERATED VALVE INSTLLATION SLEWING CUSHION VALVE PILOT-OPERATED DIRECTIONAL CONTROL VALVE RELIEF VALVE DAMPER VALVE CUSHION VALVE CHECK VALVE SLEWING BRAKE VALVE SOLENOID CONTROL VALVE PILOT-OPERATED VALVE PILOT-OPERATED CONTROL VALVE BLOCK SOLENOID VALVE BLOCK ELECTRO-HYDRAULIC DIRECTIONAL CONTROL VALVE ELECTRO-HYDRAULIC DIRECTIONAL CONTROL VALVE (BASE PLATE ) ELECTRO-HYDRAULIC DIRECTIONAL CONTROL VALVE (MAKEUP VALVE) ELECTRO-HYDRAULIC DIRECTIONAL CONTROL VALVE (BACK PRESSURE VALVE) TELESCOPING BALANCE VALVE INSTALLATION DERRICKING BALANCE VALVE INSTALLATION HOISTING BALANCE VALVE INSTALLATION COUNTERWEIGHT BALANCE VALVE INSTALLATION PILOT-OPERATED CONTROL JOYS INSTALLATION FOOT-OPERATED INSTALLATION SCHEMATIC DIAGRAM-HYDRAULIC SYSTEM SLEWING MECHANISM SWING REDUCER SWING BEARING INSTALLATION SWING LOCKING DEVICE SWING LOCKOUT CYLINDER MAIN WINCH AUXILIARY WINCH DRIVER'S CAB ASSEMBLY WINDSHIELD INSTRUMENT CONSOLE ARRANGEMENT Front WINDSHILED WIPER SYSTEM FOOT PEDAL DRIVER'S CAB (A/C) SEAT DRIVER'S CAB ASSY GUARD BOARD AND INTERIOR DECORATIVE PLATE ROOF WIPER SYSTEM AND FAN ROOF WINDOW DOOR ASSY AIR CONDITIONING SPECIAL A/C CAB HEATER HEATER COUNTERWEIGHT HANDLER LIFTING CYLINDER ROPE GUARD BRACKET INSTALLATION

1

2

2

4

5

6

7

8

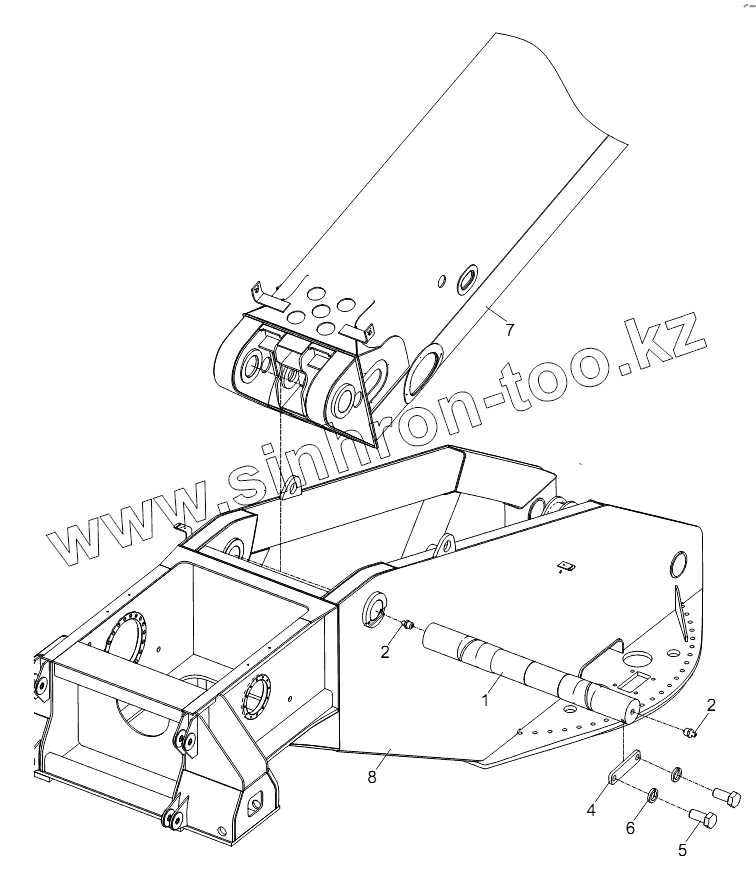

Позиция на иллюстрации	Заводской номер детали		Название детали
00756304700200001	00756304700200001		Main boom installation
1	00756304700201030		Shaft
2	1019900312		Oil cup
3	204110014		Lithium-based Grease
4	00756304700201040		Plate
5	1040000016		Bolt
6	1040300065		Washer
7	Basicboom		Basic boom assy
8	Slewingtable		Slewing table and its attachments assy weld ed
