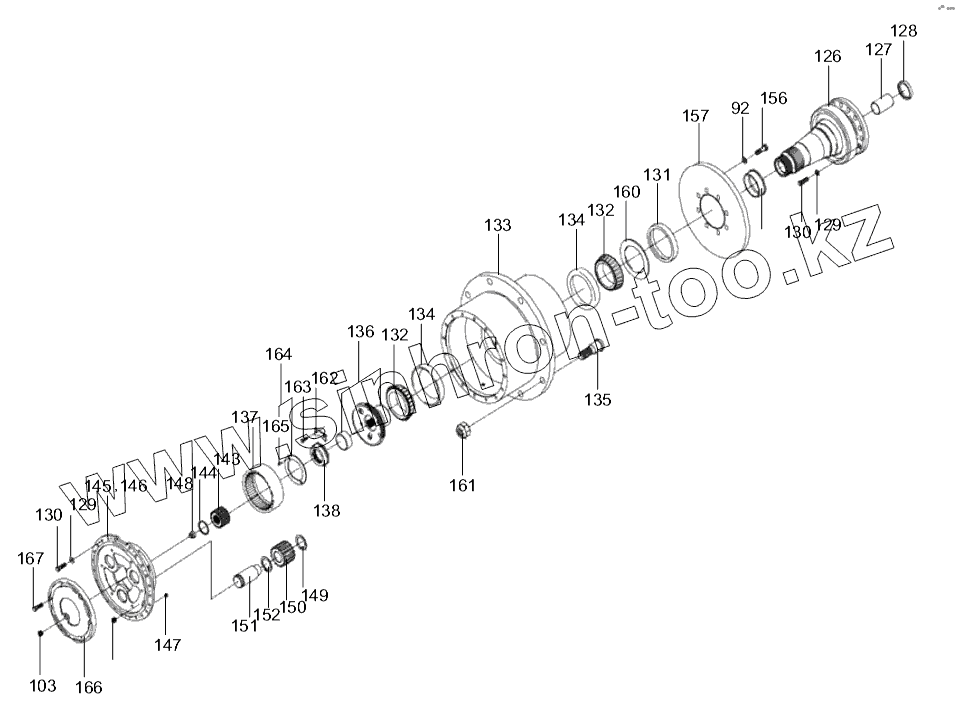

Каталог запасных частей к технике: Zoomlion RT-100. HUB REDUCER ASSY. EXPLODED VIEW I
92
103
126
127
128
129
129
130
130
131
132
132
133
134
134
135
136
137
138
143
144
145
146
147
148
149
150
151
152
156
157
160
161
162
163
164
165
166
167
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1030100815 | 1030100815 | Front axle | |
| 92 | 1039805045 | Washer | |
| 103 | 1039805034 | Plug-fill/drain magnetic | |
| 104 | 1039805530 | Oil plug | |
| 112 | 1039805535 | Knuckle-steering, fin. rh | |
| 113 | 1039805536 | Limit bolt | |
| 114 | 1039805537 | Locking nut | |
| 115 | 1039805538 | Knuckle-steering, fin. lh | |
| 116 | 1039805539 | Cap-king pin | |
| 117 | 1039805540 | Thrust washer | |
| 118 | 1039805541 | Shim | |
| 119 | 1039805542 | Shim | |
| 120 | 1039805543 | Shim | |
| 121 | 1039805544 | Screw | |
| 122 | 1039805180 | Fitting-grease | |
| 123 | 1039805545 | Cap-king pin | |
| 124 | 1039805546 | Left half shaft | |
| 125 | 1039805547 | Joint assy-universa | |
| 126 | 1039805548 | Spindle assy | |
| 127 | 1039805549 | Bushing | |
| 128 | 1039805550 | Oil seal | |
| 129 | 1039805042 | Washer | |
| 130 | 1039805551 | Screw | |
| 131 | 1039805552 | Oil seal | |
| 132 | 1039805553 | Cone-bearing | |
| 133 | 1039805554 | Wheel hub assy | |
| 134 | 1039805555 | Bearing cover | |
| 135 | 1039805556 | Rim bolt | |
| 136 | 1039805557 | Hub-planetary ring gear, fin. | |
| 137 | 1039805558 | Planetary annular gear | |
| 138 | 1039805561 | Nut | |
| 139 | 1039805562 | Half shaft repair kit | |
| 142 | 1039805565 | Inner end, half shaft | |
| 143 | 1039805566 | Sun gear | |
| 144 | 1039805560 | Snap ring | |
| 145 | 1039805567 | Spider assy-planetary | |
| 146 | 1039805568 | Planetary carrier | |
| 147 | 1039805025 | Block | |
| 148 | 1039805026 | Block | |
| 149 | 1039805569 | Stop washer | |
| 150 | 1039805570 | Planetary gear | |
| 151 | 1039805571 | Planetary gear shaft | |
| 152 | 1039805572 | Thrust washer | |
| 153 | 1039805573 | Drag rod | |
| 154 | 1039805574 | Right, ie rod ball joint | |
| 155 | 1039805038 | Cotter pin | |
| 156 | 1039805103 | Screw | |
| 157 | 1039805575 | Brake disc | |
| 158 | 1039805576 | End assy-tie rod lh thread | |
| 159 | 1039805577 | Shaft sleeve | |
| 160 | 1039805578 | Oil seal fixing seal ring | |
| 161 | 1039805043 | Rim nut | |
| 162 | 1039805047 | Positioning block | |
| 163 | 1039805048 | Screw | |
| 164 | 1039805579 | Seal ring | |
| 165 | 1039805580 | Positioning pin | |
| 166 | 1039805581 | End cover | |
| 167 | 1039805582 | Screw |
