Каталог запасных частей к технике: Zoomlion RT-100. ENGINE AND ATATCHMENTS WELDED

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
3
4
5
6
7
7
7
8
9
10
11
12
12
12
13
14
15
16
18
19
20
20
21
21
22
23
24
25
26
27
28
29
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
46
47
48
49
50
51
53
54
58
59
60
61
62
63

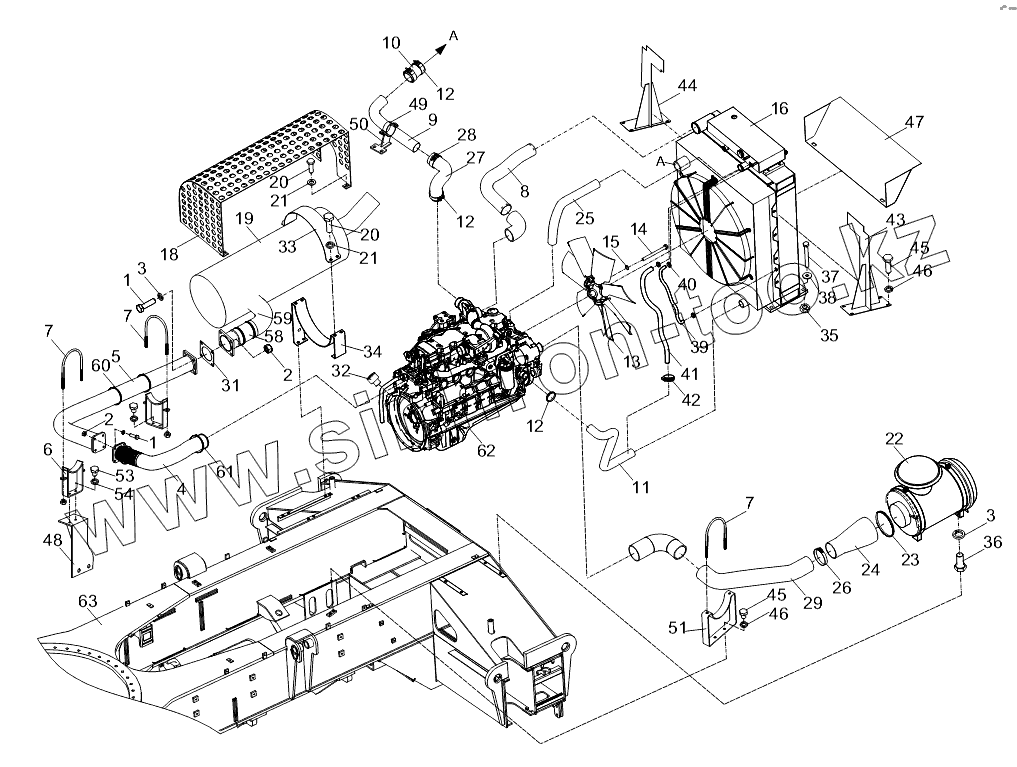

Позиция на иллюстрации Заводской номер детали Название детали
00758301000000002 00758301000000002 Engine attachments installation
1 1040000101 Bolt
2 1040200096 Nut
3 1040300054 Washer
4 00758301000200001 Exhaust pipe I
5 00758301000400000 Exhaust pipe II
6 00758301001600000 Exhaust pipe bracket
7 00758301000001110 Clamp
8 00758301000001011 Intercooler pipe
9 00758301000001020 Water outlet pipe
10 00758301000001030 Water pipe
11 00758301000001041 Water intake pipe
12 1990200545 T type clamp
13 1000300302 Fan assy
14 1040000231 Bolt
15 1040300211 Washer
16 1010400147 Radiator assy
17 1009900454 Engine coolant
18 00758301000600000 Silencer housing
19 00758301000800001 Silencer assy
20 1040000098 Bolt
21 1040300063 Washer
22 00758301001400000 Air filter assy
23 1990200650 Worm clamp
24 00758301000001051 Air intake hose
25 00758301000001061 Intercooler pipe
26 1990200539 T type clamp
27 00758301000001070 Water outlet pipe
28 1990201047 Hoop
29 00758301000001081 Air intake steel pipe
30 00758301000001090 Inlet pipe
31 00758301000001100 Asbestos sealing plate
32 00750101300001110 Blanking plug
33 00758301001000000 Silencer clamp
34 00758301001200000 Silencer bracket
35 1040200192 Nut
36 1040000069 Bolt
37 1040000497 Bolt
38 1040300233 Washer
39 00758301000001130 Ventilation pipe
40 1990200518 Worm clamp
41 00758301000001140 Water pipe
42 1990200936 Hoop
43 00758301001800000 Air baffle A
44 00758301002000000 Air baffle B
45 1040000132 Bolt
46 1040300067 Washer
47 00758301000001120 Deflecting plate
48 00758301000001150 Exhaust pipe bracket
49 00758301000001160 Water outlet pipe bracket I
50 00758301000001170 Water outlet pipe bracket II
51 00758301000001180 Air intake steel pipe bracket
52 00758301002400000 Engine and atatchments welded pipe package
53 1040000134 Bolt
54 1040300065 Washer
55 1010303514 Two-port ball valve
56 00758301002201010 Heat-insulating sleeve I
57 00758301002201020 Heat-insulating sleeve II
58 00758301002201030 Heat-insulating sleeve HI
59 00758301002201040 Heat-insulating sleeve IV
60 1990200061 Hoop
61 1990200063 Heavy clamp
62 Engine Engine
63 Chassisattachments Chassis attachments welded
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
