Вернуться на главную
Поиск
Каталоги запчастей к технике
Спецтехника
Zoomlion
RT-100
AXLE SHELL ASSY

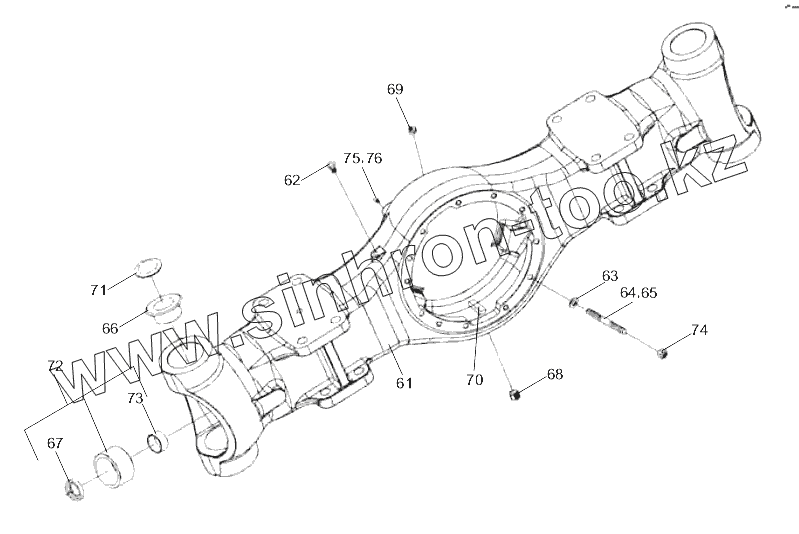

Каталог запасных частей к технике: Zoomlion RT-100. AXLE SHELL ASSY
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
33X-4Z
47X-5RZ
K56X-6RZ
PL2304 (2021)
QUY260CR-32Y
QY55V53232Z
RN (90-110 л.с.)
RS (2021)
RT-100 (2013)
RT-35 (2013)
RT-55 (2013)
RT-551 (4x4) (2013)
RT-75 (2013)
ZCC1100H (2014)
ZD160T(S,SH, CS)-3 (2012)
ZE205E (2013)
ZLJ5480JQZV3 (2013)
ZLJ5500V3 (2013)
ZLJ5550JQZV3.2 (2016)
ZT20J (2019)
ZT68J (2019)
Схема
>
Не выбрано
Remarks
RT551 ROUGH TERRAIN CRANE
BASIC BOOM ASSY
TELESCOPIC BOOM SECTION 1 ASSY
TELESCOPIC BOOM SECTION 2 ASSY
PULLEY ASSY
TELESCOPIC BOOM SECTION 3 ASSY
PULLEY ASSY
TELESCOPIC BOOM SECTION 4 ASSY
PULLEY ASSY
ROOSTER SHEAVE
PULLEY ASSY
ROOSTER SHEAVE INSTALLATION
MAIN BOOM ASSY
ROPE GUIDE ASSY
MAIN BOOM INSTALLATION
JIB
PULLEY ASSY
PULLEY ASSY
JIB INSTALLATION
TELESCOPING MECHANISM
GUIDE SEAT
ROLLER HEAD ASSY
WIRE ROPE SUPPORT
TELESCOPING CYLINDER I
TELESCOPING CYLINDER II
DERRICKING CYLINDER INSTALLATION
DERRICKING CYLINDER
SECURING DEVICE FOR HOOK
NAME PLATE (CHINESE AND ENGLISH VERSIONS)
NAME PLATE (ENGLISH VERSION)
ENGINE AND TRANSMISSION INSTALLATION
PTO OPERATING VALVE SYSTEM
ENGINE AND ATATCHMENTS WELDED
AIR FILTER
ENGINE HOUSING AND ITS INSTALLATION
FUEL SUPPLY SYSTEM
PROPELLER SHAFT ASSEMBLY
FRONT SUSPENSION
MAIN REDUCER ASSY. EXPLODED VIEWI
MAIN REDUCER ASSY. EXPLODED VIEW II
BRAKE ASSY. EXPLODED VIEW
AXLE HOUSING ASSY. EXPLODED VIEW
HUB REDUCER ASSY. EXPLODED VIEW I
HUB REDUCER ASSY. EXPLODED VIEW II
REAR SUSPENSION
SUSPENSION CYLINDER
CARRTER ASSY
BRAKE ASSY
AXLE SHELL ASSY
HOUSING ASSY 1
HOUSING ASSY 2
WHEEL AND RIM
STEERING SYSTEM
STEERING CYLINDER
TOOLBOX AND PLATFORM
TOOLBOX
MUDGUARD AND STAIR INSTALLATION
OUTRIGGER AND ITS CYLINDER INSTALLATION
HORIZONTAL CYLINDER
VERTICAL CYLINDER
OUTRIGGER
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
SCHEMATIC DIAGRAM
OPERATOR’S CAB ELECTRICS
SLEWING TABLE ELECTRICS
BOOM ELECTRICS
CHASSIS FRAME ELECTRICS 1
CHASSIS FRAME ELECTRICS 2
CENTRE REVOLVING JOINT INSTALLATION
CENTRE REVOLVING JOINT
HYDRAULIC OIL TANK INSTALLATION
HYDRAULIC OIL TANK
RADIATOR
OIL PUMP DRIVE DEVICE
OUTRIGGER CONTROL VALVE BLOCK INSTALLATION
FLUID FILLING VALVE INSTALLATION
BRAKE VALVE ASSY INSTALLATION
ACCUMULATOR INSTALLATION
HIGH-PRESSURE OIL FILTER INSTALLATION
RELIEF CONTROL VALVE BLOCK INSTALLATION
STEERING CONTROL VALVE BLOCK INSTALLATION
2-WHEEL / 4-WHEEL DRIVE CHANGEOVER VALVE INSTALLATION
LOCKING SOLENOID VALVE INSTALLATION
RELIEF CONTROL VALVE BLOCK
STEERING CONTROL VALVE BLOCK
OUTRIGGER CONTROL VALVE BLOCK
2-WHEEL / 4-WHEEL DRIVE CHANGEOVER VALVE
LOCKING SOLENOID VALVE
OUTRIGGER HYDRAULIC LOCK INSTALLATION
SLEWING CUSHION VALVE INSTALLATION
SLEWING BRAKE VALVE INSTALLATION
SOLENOID CONTROL VALVE INSTALLATION
PIPE FILTER INSTALLATION
PILOT-OPERATED CONTROL VALVE BLOCK INSTALLATION
TELESCOPING DERRICKING VALVE INSTALLATION
ELECTRO-HYDRAULIC DIRECTIONAL CONTROL VALVE INSTALLATION
WINCH VALVE INSTALLATION
PRIORITY VALVE INSTALLATION
SOLENOID VALVE BLOCK INSTLLATION
PILOT-OPERATED VALVE INSTLLATION
SLEWING CUSHION VALVE
PILOT-OPERATED DIRECTIONAL CONTROL VALVE
RELIEF VALVE
DAMPER VALVE
CUSHION VALVE
CHECK VALVE
SLEWING BRAKE VALVE
SOLENOID CONTROL VALVE
PILOT-OPERATED VALVE
PILOT-OPERATED CONTROL VALVE BLOCK
SOLENOID VALVE BLOCK
ELECTRO-HYDRAULIC DIRECTIONAL CONTROL VALVE
ELECTRO-HYDRAULIC DIRECTIONAL CONTROL VALVE (BASE PLATE )
ELECTRO-HYDRAULIC DIRECTIONAL CONTROL VALVE (MAKEUP VALVE)
ELECTRO-HYDRAULIC DIRECTIONAL CONTROL VALVE (BACK PRESSURE VALVE)
TELESCOPING BALANCE VALVE INSTALLATION
DERRICKING BALANCE VALVE INSTALLATION
HOISTING BALANCE VALVE INSTALLATION
COUNTERWEIGHT BALANCE VALVE INSTALLATION
PILOT-OPERATED CONTROL JOYS INSTALLATION
FOOT-OPERATED INSTALLATION
SCHEMATIC DIAGRAM-HYDRAULIC SYSTEM
SLEWING MECHANISM
SWING REDUCER
SWING BEARING INSTALLATION
SWING LOCKING DEVICE
SWING LOCKOUT CYLINDER
MAIN WINCH
AUXILIARY WINCH
DRIVER'S CAB ASSEMBLY
WINDSHIELD
INSTRUMENT CONSOLE ARRANGEMENT
Front WINDSHILED WIPER SYSTEM
FOOT PEDAL
DRIVER'S CAB (A/C)
SEAT
DRIVER'S CAB ASSY
GUARD BOARD AND INTERIOR DECORATIVE PLATE
ROOF WIPER SYSTEM AND FAN
ROOF WINDOW
DOOR ASSY
AIR CONDITIONING
SPECIAL A/C
CAB HEATER
HEATER
COUNTERWEIGHT HANDLER
LIFTING CYLINDER
ROPE GUARD BRACKET INSTALLATION
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
Позиция на иллюстрации
Заводской номер детали
Название детали
1030100816
1030100816
Rear axle
61
1039805524
Axle housing assy
62
1039804983
Plug
63
1039805525
Seal ring
64
1039805526
Bolt
65
1039805527
Bolt
66
1039805528
Shaft sleeve
67
1039805529
Oil seal
68
1039805034
Plug-fill/drain magnetic
69
1039805530
Oil plug
70
1039804991
Magnet
71
1039805531
Expansion washer
72
1039805532
Oil seal sleeve assy
73
1039805533
Shaft sleeve
74
1039805534
Nut
75
1039804992
Fitting-grease
76
1039804993
Dust cap
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
