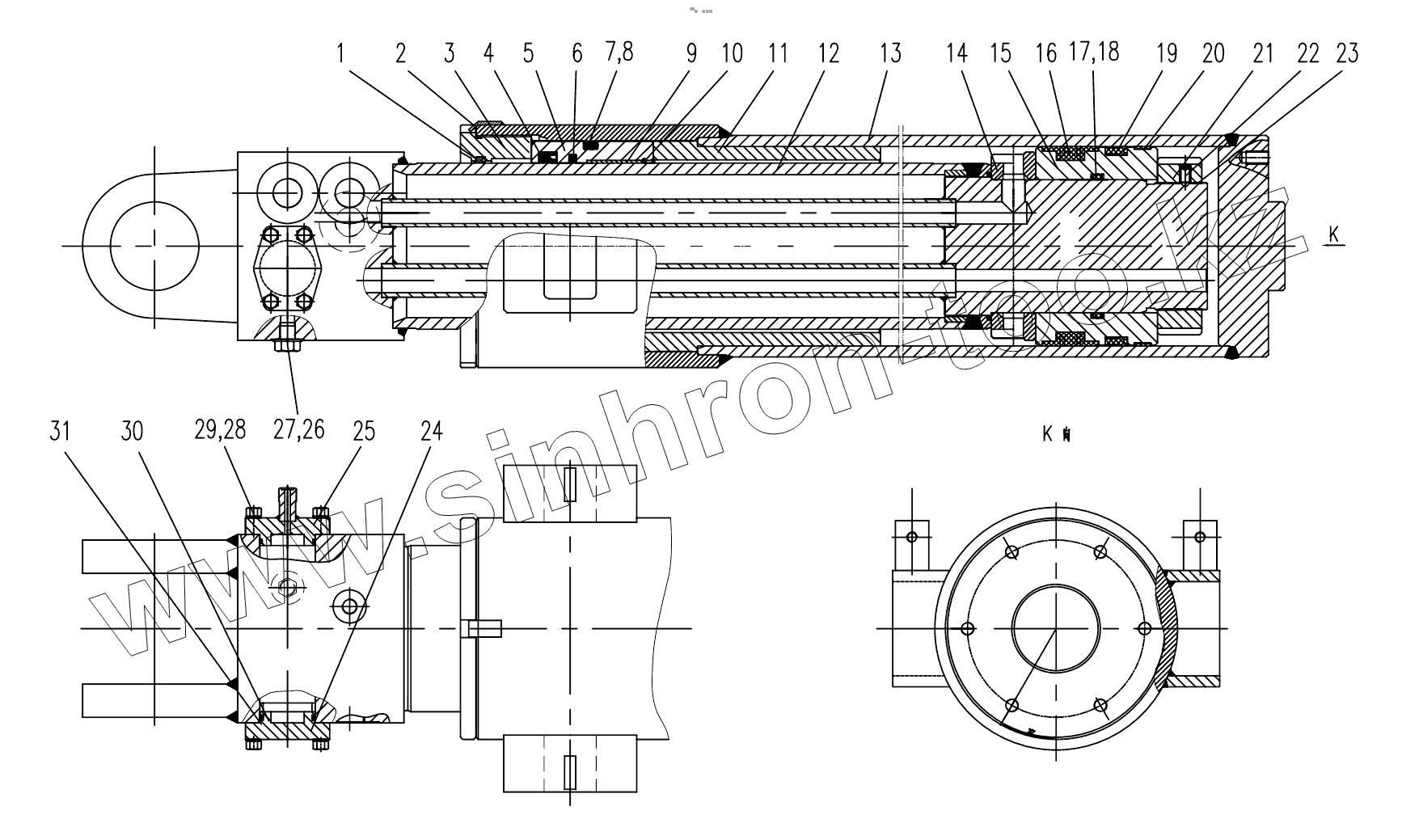

Каталог запасных частей к технике: Zoomlion QY55V53232Z. TELESCOPING CYLINDER II D1010200084ZY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | WD1701500-N9 | Dust ring | |
| 2 | 1130-190000-1010 | Baffle | |
| 3 | 1112-190000-1010 | Cylinder cover | |
| 4 | RU3001500-WUAQ3 | U-ring | |
| 5 | 1117-190000-1010 | Guide sleeve | |
| 6 | RS1301500-T46NA | Step seal | |
| 7 | GB1235-1976 | O-ring | |
| 8 | PW1-190X175X2.5 | Retainer ring | |
| 9 | SF-1 15050 | Multiplex bush | |
| 10 | GB/T895.1-1986 | Retainer ring | |
| 11 | 1114-530000-1010 | Spacing sleeve | |
| 12 | 1117-530020-0000 | Piston rod | |
| 13 | 1117-530040-0000 | Cylinder | |
| 14 | 1112-190000-1040 | Spacing sleeve | |
| 15 | 1112-190000-1050A | Piston | |
| 16 | PCB1A1800-NCRO | Combination sealing ring | |
| 17 | GB1235-1976 | O-ring | |
| 18 | PW1-130x120x2 | Retainer ring | |
| 19 | KYX-D180 | U-ring | |
| 20 | GP7301800-C380 | Support ring | |
| 21 | 1093-190000-1030 | Nut | |
| 22 | GB/T71-1985 | Screw | |
| 23 | 262- | Loctite glue | |
| 24 | 112-19000-108 | Cover plate | |
| 25 | 112-19080-000 | Cover plate | |
| 26 | JB982-77-14 | Washer | |
| 27 | JB1000-77-M14X1.5 | Threaded plug | |
| 28 | GB/T5783-2000-M8x3 0-8.8 | Bolt | |
| 29 | GB/T93-1987-8 | Washer | |
| 30 | CCBH140/350-2/4 | Balance valve | |
| 31 | GB3452.1-82-43.7X2.6 5 | O-ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
