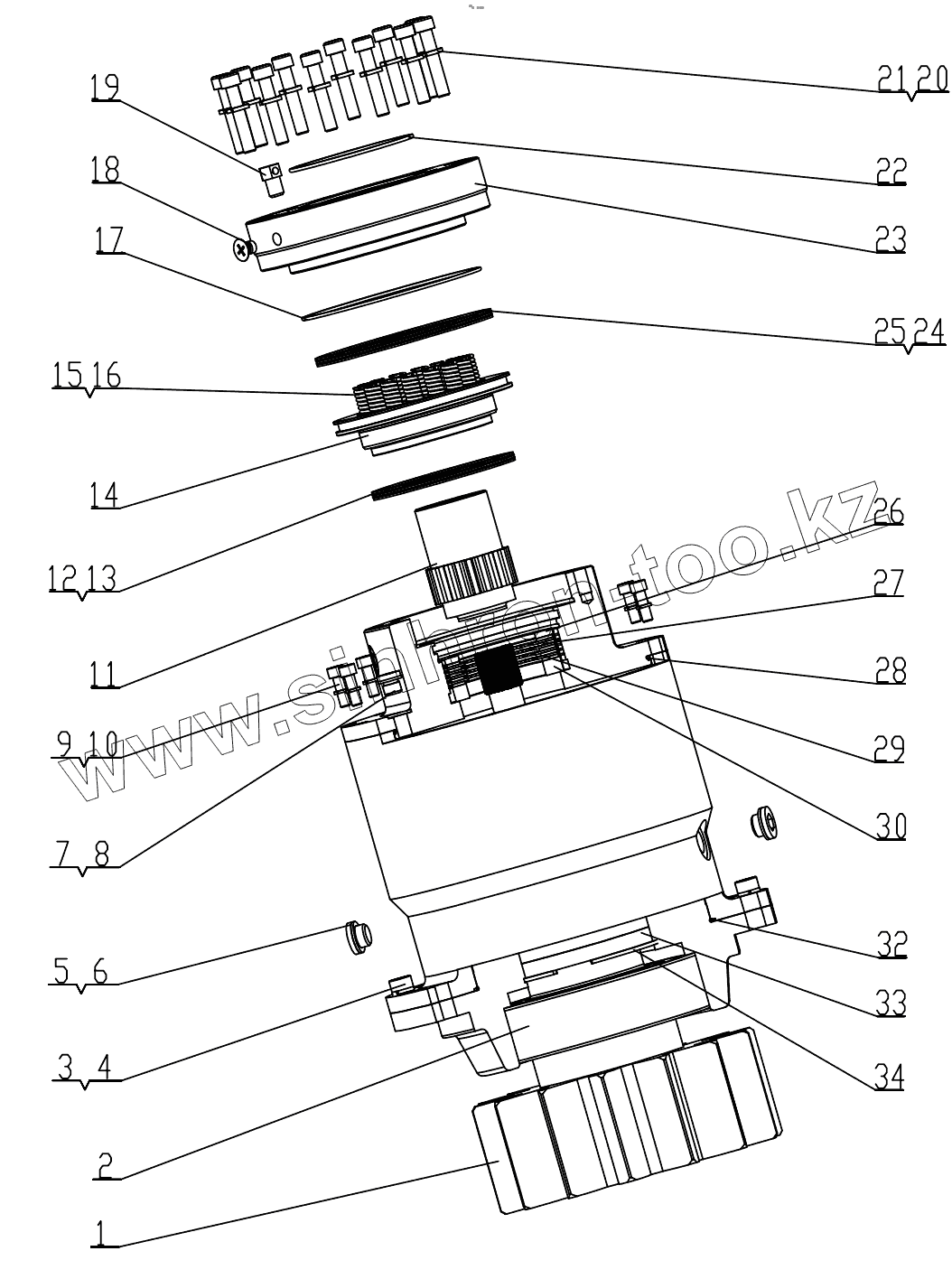

Каталог запасных частей к технике: Zoomlion QY55V53232Z. SLEWING REDUCER D1030200558ZY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 2240109090 | Output gear | |
| 2 | 313014147 | Bearing | |
| 3 | 311092205 | Spring washer | |
| 4 | 311010302 | Hexagon screw | |
| 5 | 314024956 | Hexagon plug | |
| 6 | 311092005 | Combination washer | |
| 7 | 314024955 | Hexagon plug | |
| 8 | 311092003 | Combination washer | |
| 9 | 311010303 | Hexagon screw | |
| 10 | 311092222 | Spring washer | |
| 11 | 2220306404 | Coupling spindle | |
| 12 | 323016234 | X-type ring | |
| 13 | 311103420 | Nylon retainer ring | |
| 14 | 2220106821 | Piston | |
| 15 | 321015604 | Small spring | |
| 16 | 321015603 | Big spring | |
| 17 | 312033299 | O-ring | |
| 18 | 311061619 | Grooved set screw with cone point | |
| 19 | 314024957 | Ventilation plug | |
| 20 | 311010031 | Hexagon plug | |
| 21 | 311092203 | Spring washer | |
| 22 | 312033286 | O-ring | |
| 23 | 2231408454 | Input flange | |
| 24 | 323016233 | X-type ring | |
| 25 | 311103419 | Nylon retainer ring | |
| 26 | 2230407530 | Adjusting washer | |
| 27 | 322015902 | Stator plate | |
| 28 | 312033320 | O-ring | |
| 29 | 322026001 | Rotor plate | |
| 30 | 2230407566 | Limit washer | |
| 31 | 312033318 | O-ring | |
| 32 | 312023712 | Oil seal | |
| 33 | 311103220 | Circlip for holes |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
