Каталог запасных частей к технике: Zoomlion QY55V53232Z. QY55V532 TRUCK CRANE D00631140003060000Z
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
39
39
39
40
41
42
43
44
45
46
47
48
49
50

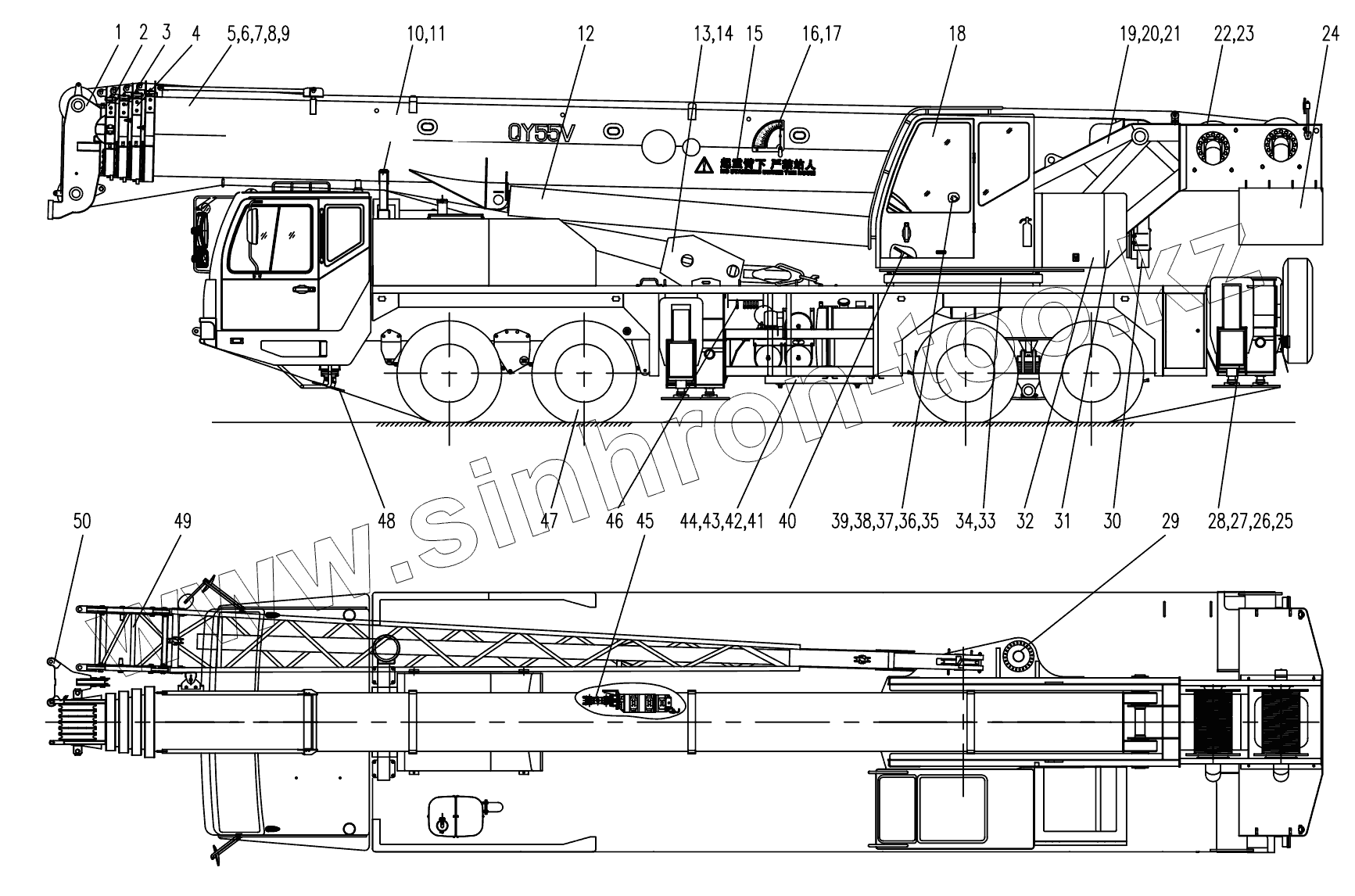

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00631148930000000 | Fourth stage telescopic boom assembly | |
| 2 | 00631178810000000 | Telescopic boom section 3 assy | |
| 3 | 00631178710000000 | Telescopic boom section 2 assy | |
| 4 | 00631178610000000 | Telescopic boom section 1 assy | |
| 5 | 00631178510000000 | Basic arm assembly | |
| 6 | 00631170110000000 | Main arm assembly | |
| 7 | 00631171810000000 | Telescoping system | |
| 8 | 1010200085 | Telescopic cylinder | |
| 9 | 1010200084 | Telescopic cylinder | |
| 10 | 00631140330000000 | Boom bracket | |
| 11 | 1090400019 | Hook 4t | |
| 12 | 1010200510 | Luffing cylinder | |
| 13 | 1090400121 | Hook | |
| 14 | 00631254300000000 | Hook fixing device | |
| 15 | 00631140003061020 | Truck crane paint drawing | |
| 16 | 00630947100000000 | Angle indicator installation | |
| 17 | 00631145910000000 | Signage installation | |
| 17 | 00631145920000000 | Signage and installation | |
| 18 | 1130000079 | Control room assembly | |
| 21 | 00631144780000000 | Structural installation | |
| 22 | 00631143520000000 | Lifting mechanism | |
| 23 | 00631148210000000 | Lifting wire rope | |
| 24 | 00631140640000000 | Counterweight | |
| 25 | 00631140820000000 | Active outriggers | |
| 26 | 00631142200000000 | Vertical cylinder | |
| 27 | 1010200511 | Horizontal cylinder | |
| 28 | 00631251300000000 | Feet | |
| 29 | 00631324400000000 | Slewing mechanism | |
| 30 | 00631147410000000 | Oil cooling device | |
| 31 | 00631140530000000 | Hangar installation | |
| 32 | 00631144860000000 | Hydraulic installation | |
| 33 | 00631144520000000 | Slewing bearing and installation | |
| 34 | 1011200022 | Center swivel joint | |
| 35 | 00631146160000000 | On the car electric | |
| 35 | 00631146190000000 | On the car electric | |
| 36 | 00631147800000000 | Control room electrical | |
| 36 | 00631146260000001 | Control room electrical | |
| 37 | 00631148000000000 | Turntable electric | |
| 37 | 00631146360000000 | Turntable electric | |
| 38 | 00631146470000000 | Main arm electrical | |
| 38 | 00631146460000000 | Main arm electrical | |
| 39 | 00631146500000000 | Jib electric | |
| 39 | 00631146510000000 | Jib electric | |
| 40 | 00631144010000000 | Throttle installation | |
| 41 | 00631143010000001 | Hydraulic tank | |
| 42 | 00631141570000000 | Hydraulic system schematic | |
| 43 | 00631141690000000 | Piping diagram of hydraulic system on the car | |
| 44 | 00631141750000000 | Piping diagram of hydraulic system for getting off the car | |
| 45 | 00631143920000000 | Oil pump transmission | |
| 46 | 00631145800000000 | Outrigger operating mechanism | |
| 47 | 00671630000060001 | Special chassis for truck crane | |
| 48 | 00631141110000000 | Fifth leg | |
| 49 | 00631250200000000 | Jib | |
| 50 | 00631121200000000 | Arm tip pulley assembly | |
| 51 | 1021500367 | Monitor + monitoring control system software | |
| 51 | 1021500376 | Torque limiter | |
| 52 | 204060002 | Hydraulic oil | |
| 52 | 204060003 | Hydraulic oil | |
| 52 | 204060026 | 10# aviation hydraulic oil | |
| 52 | 204060043 | Hydraulic oil | |
| 53 | 00631157600000000 | Air conditioning device | |
| 54 | 00631147500000000 | Heater | |
| 57 | 1090400117 | Hook | |
| 59 | 00631143430000000 | Rotary table and accessories welding package | |
| 60 | 00630876600000000 | Electrical option installation |
