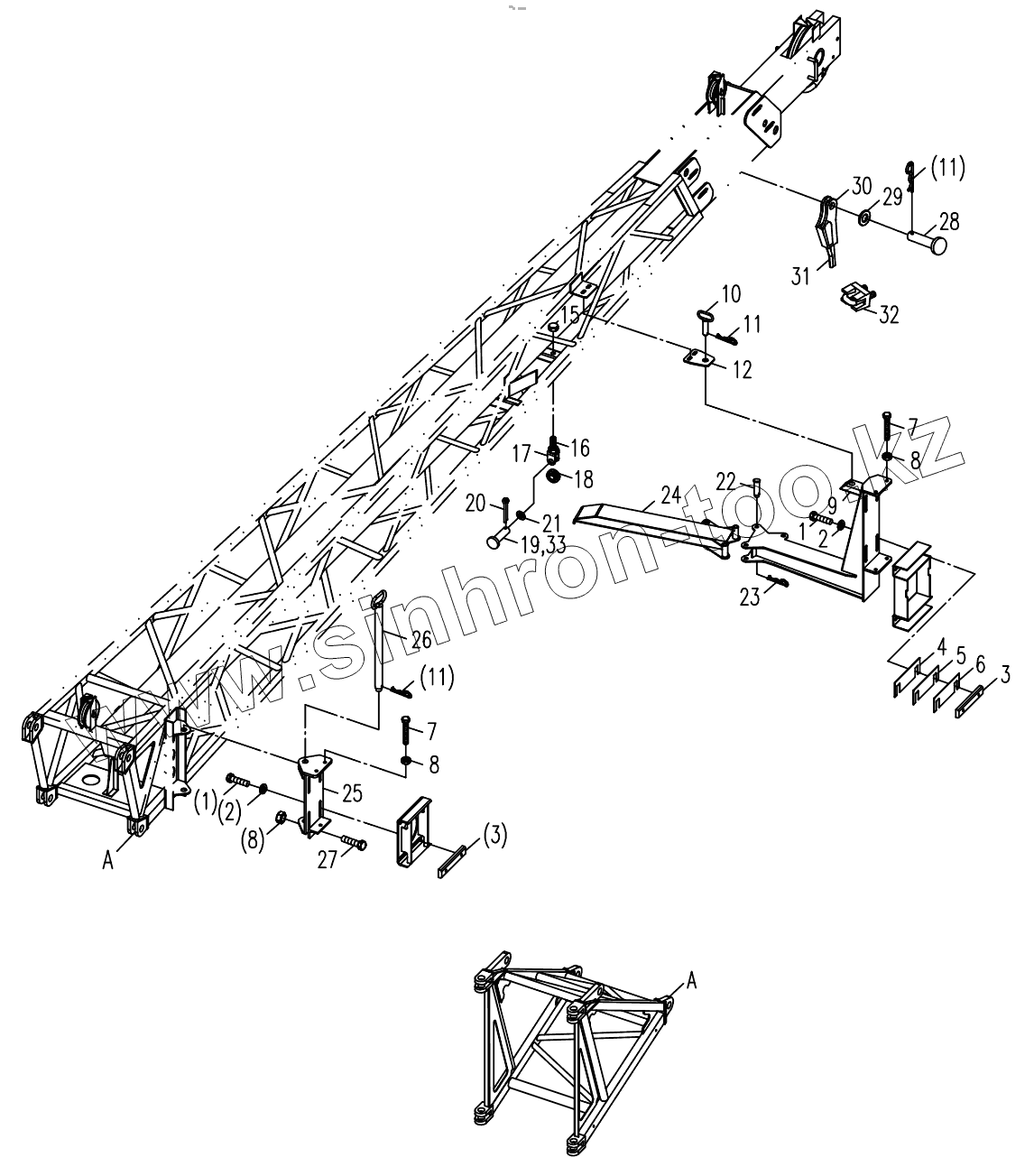

Каталог запасных частей к технике: Zoomlion QY55V53232Z. JIB INSTALLATION D00631144780800000Z
1
1
2
2
3
3
4
5
6
7
7
8
8
8
9
10
11
11
11
12
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1040000140 | Bolt | |
| 2 | 1040300052 | Washer | |
| 3 | 00633130200001240 | Backing plate | |
| 4 | 00633130200001290 | Backing plate | |
| 5 | 00633130200001300 | Backing plate | |
| 6 | 00633130200001310 | Backing plate | |
| 7 | 1040000664 | Bolt | |
| 8 | 1040200097 | Nut | |
| 9 | 00631324700480000 | Middle bracket | |
| 10 | 00633130203400000 | Pin | |
| 11 | 006340000029 | Spring-loaded pin | |
| 12 | 00631224700401010 | Mounting plate | |
| 13 | 1040300065 | Washer | |
| 14 | 1040200110 | Nut | |
| 15 | 1040200146 | Nut | |
| 16 | 00631504700401010 | Stud | |
| 17 | 00631504700410000 | Bracket | |
| 18 | 00631504700401020 | Roller | |
| 19 | 00631504700401030 | Axis | |
| 20 | 1040500077 | Pin | |
| 21 | 1040300106 | Washer | |
| 22 | 00631324700401010 | Pin | |
| 23 | 006340000032 | Spring-loaded pin | |
| 24 | 00631324700490000 | Folding stand | |
| 25 | 00631324700500000 | Bracket | |
| 26 | 00633100200600000 | Pin | |
| 27 | 1040000556 | Bolt | |
| 28 | 00630878910001020 | Pin | |
| 29 | 1040300090 | Washer | |
| 30 | 00630878910001010 | Wedge set | |
| 31 | 00633240000000004 | Wedge | |
| 32 | 1090100001 | Wire rope clamp | |
| 33 | 204110014 | Lithium-based Grease |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
