Каталог запасных частей к технике: Zoomlion QY55V53232Z. GEAR PUMP D1010000082ZY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

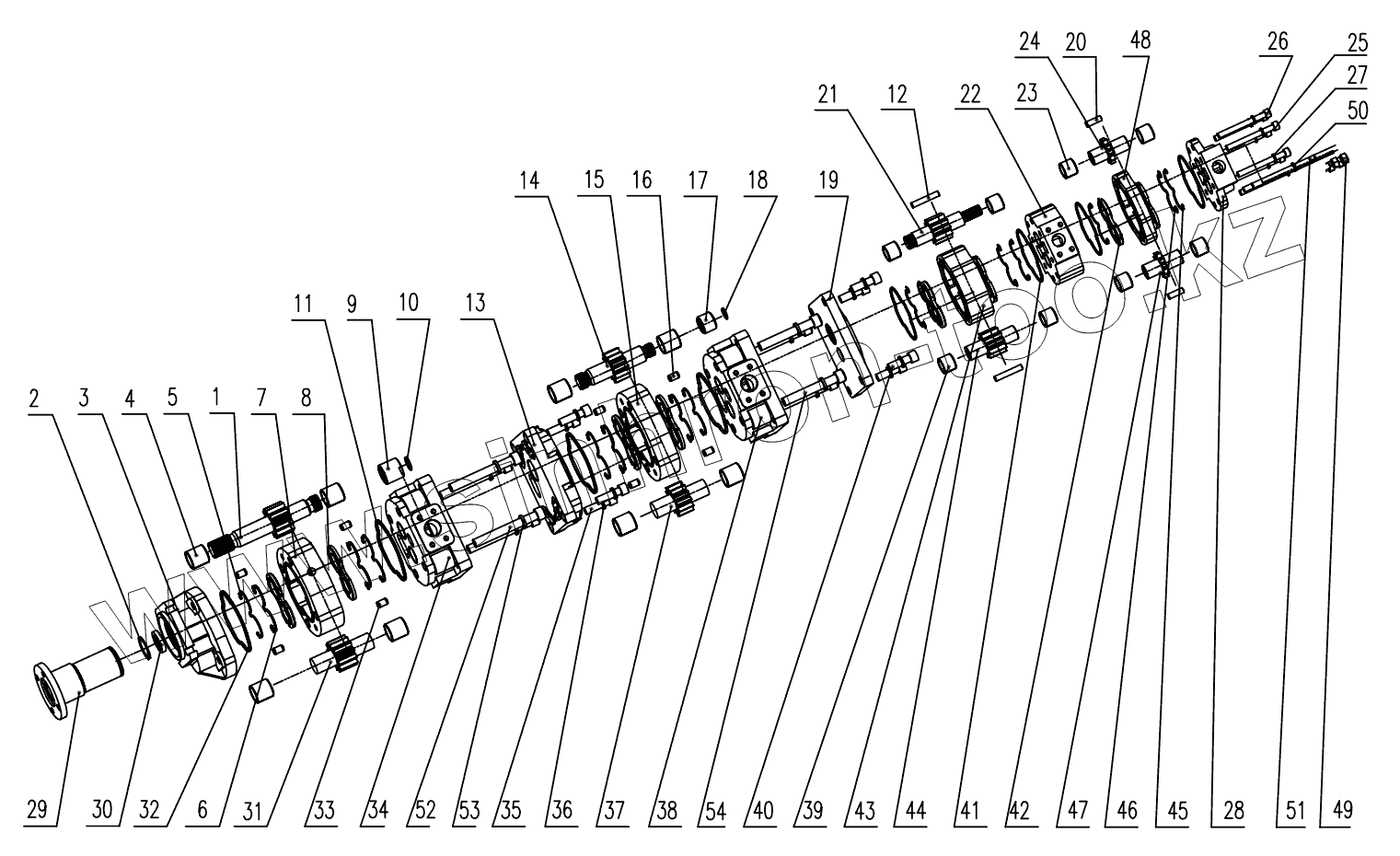

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GSA3-x-x-01 | Gear | |
| 2 | GB893.1-86 | Circlip | |
| 3 | GSA3-102R-01 | Front cover | |
| 4 | GSA3-11 | Du bearings | |
| 5 | GB1235-76 | O-ring 32x3.5 | |
| 6 | CBY3-7 | W-profile ring | |
| 7 | GSA3-07 | Pump body | |
| 8 | GSA3-08 | Lateral plate | |
| 9 | GSA3-x-x-03 | Coupling | |
| 10 | GB895.1-86 | Limit ring | |
| 11 | CY168-2007 | O-ring | |
| 12 | GSA3-x-x-04 | Pin | |
| 13 | GSA3-x-x-02 | Connecting front cover | |
| 14 | GSA3080/63/CBXf3040/1 0-130R-03 | Gear | |
| 15 | GSA3-07 | Pump body | |
| 16 | GSA3-04 | Pin | |
| 17 | GSA3/3/CBXf3040-118 R-06 | Coupling | |
| 18 | GB895.1-86 | Limit ring | |
| 19 | GSA3080/63/CBXf3040/10- 130R-02 | Connecting front cover | |
| 20 | GB/T119.1-2000 | Pin | |
| 21 | GSA3080/63/CBXf304 0/10-130R-04 | Gear | |
| 22 | GSA3063/50/CBXf304 0/10-127R-03 | Connecting cover | |
| 23 | GSA3063/50/CBXf304 0/10-127R-06 | Du bearings | |
| 24 | GSA3063/50/CBXf304 0/10-127R-02 | Gear | |
| 25 | GB/T70.1-2000 | Screw | |
| 26 | GB/T70.1-2000 | Screw | |
| 27 | GB93-87 | Washer | |
| 28 | GSA3063/50/CBXf304 0/10-127R-05 | Rear cover | |
| 29 | GSA3/3/CBXf3040-118 R-11 | Connecting flange | |
| 30 | ND32x44x9.5 | Shaft seals | |
| 31 | GSA3-10 | Gear | |
| 32 | GSA3/3/CBXf3040-118 R-12 | O-ring | |
| 33 | GSA3-04 | Pin | |
| 34 | GSA3/3/CBXf3040-118 R-01 | Connecting rear cover | |
| 35 | GB/T70.1-2000 | Screw | |
| 36 | GB93-87 | Washer | |
| 37 | GSA3-10 | Gear | |
| 38 | GSA3080/63/CBXf304 0/10-130R-01 | Connecting rear cover | |
| 39 | CBY2-07 | Du bearings | |
| 40 | GB/T70.1-2000 | Screw | |
| 41 | GSA3/3/CBXf3040-118 R-09 | O-ring | |
| 42 | CBY2-08 | Lateral plate | |
| 43 | GSA3063/CBXf3016-1 24R-06 | Pump body | |
| 44 | GSA3080/63/CBXf304 0/10-130R-05 | Gear | |
| 45 | CBY2-01 | W-seal | |
| 46 | CBY2-02 | W-profile ring | |
| 47 | GSA3063/50/CBXf304 0/10-127R-04 | Gear | |
| 48 | GSA3063/CBXf3016-1 24R-06 | Pump body | |
| 49 | GB/T6175-2000 | Nut | |
| 50 | GB/T97.1-2000 | Washer | |
| 51 | GSA3063/50/CBXf304 0/10-127R-07 | Bolt | |
| 52 | GB/T70.1-2000 | Screw | |
| 53 | GB/T97.1-2000 | Washer | |
| 54 | GB/T70.1-2000 | Screw |
