Каталог запасных частей к технике: Zoomlion QY55V53232Z. AIR CONDITIONING DEVICE D00631157600000000Z
1
2
3
4
5
5
6
6
6
7
7
7
8
8
8
8
9
9
9
10
10
10
10
11
11
11
11
12
12
12
13
14
15
16
17
18
19
20
21
23
24
24
25
25
26
26
27
28
29
30
31
32
33
34
35
36
37
40
41

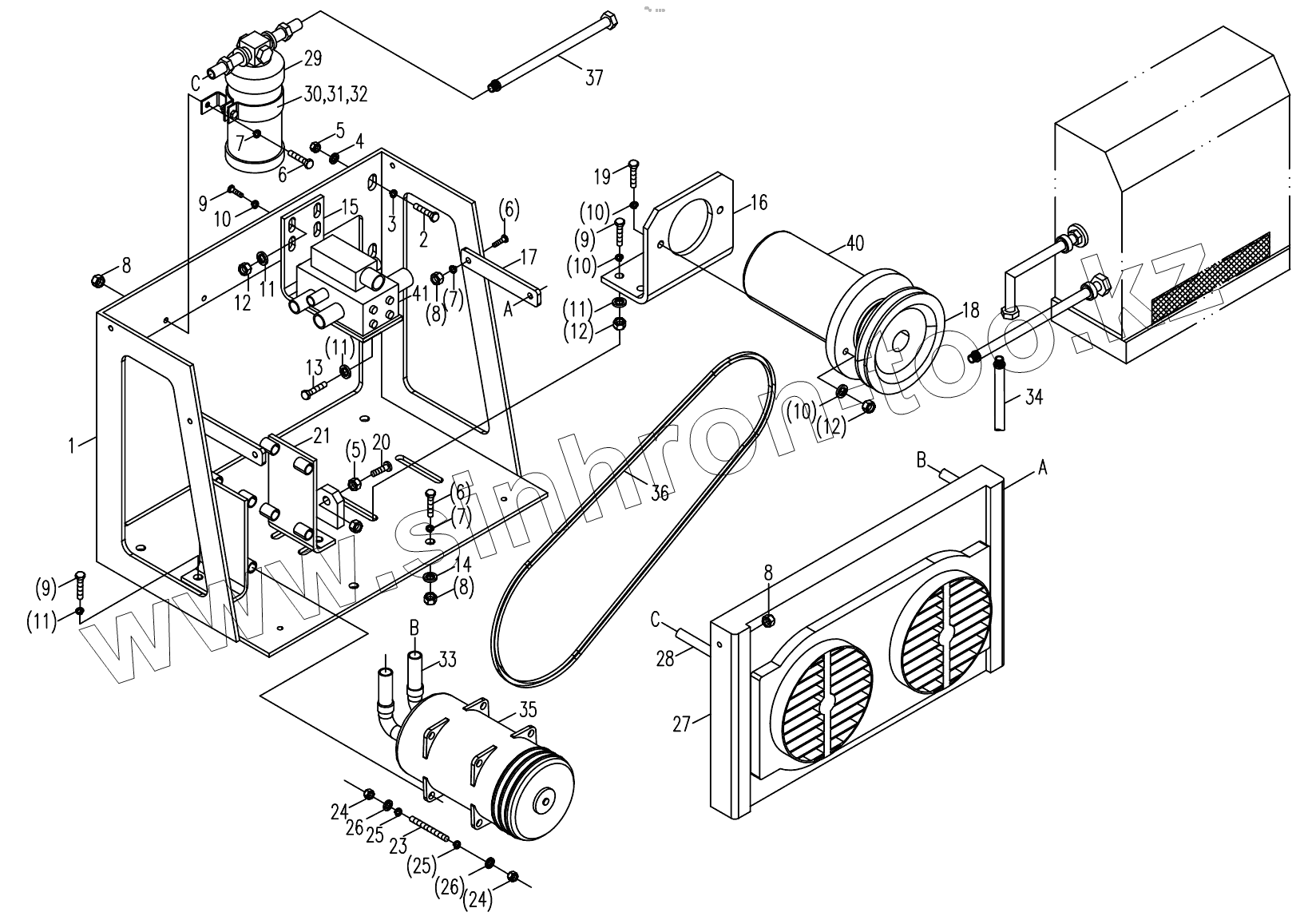

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00631147600400000 | 00631147600400000 | Air conditioner bracket and installation | |
| 00631147600600001 | 00631147600600001 | Air conditioner assembly | |
| 00631157600200000 | 00631157600200000 | Ir system piping diagram | |
| 1 | 000631147600410000 | Air conditioner bracket assembly | |
| 2 | 1040000108 | Bolt | |
| 3 | 1040300041 | Washer | |
| 4 | 1040300054 | Washer | |
| 5 | 1040200096 | Nut | |
| 6 | 1040000107 | Bolt | |
| 7 | 1040300062 | Washer | |
| 8 | 1040200111 | Nut | |
| 9 | 1040000090 | Bolt | |
| 10 | 1040300061 | Washer | |
| 11 | 1040300067 | Washer | |
| 12 | 1040200113 | Nut | |
| 13 | 1040000116 | Bolt | |
| 14 | 1040300051 | Washer | |
| 15 | 00631147600401010 | Electro-hydraulic valve support | |
| 16 | 00631147600401020 | Motor bracket | |
| 17 | 00631147600401030 | Pull plate | |
| 18 | 00631147600401040 | Pulley | |
| 19 | 1040000376 | Bolt | |
| 20 | 1040000273 | Bolt | |
| 21 | 00631147600420000 | Compressor bracket | |
| 23 | 1040000602 | Stud | |
| 24 | 1040200192 | Nut | |
| 25 | 1040300063 | Washer | |
| 26 | 1040300066 | Washer | |
| 27 | 1130100056 | Condenser assembly | |
| 28 | 1130100061 | Refrigerant hose assembly | |
| 29 | 1130100058 | Reservoir assembly | |
| 30 | 1130100057 | Reservoir clamp | |
| 31 | 1040200304 | Nut | |
| 32 | 1040000222 | Bolt | |
| 33 | 1130100060 | Refrigerant hose assembly | |
| 34 | 1130100103 | Refrigerant hose assembly | |
| 35 | 1130100055 | Air compressor | |
| 36 | 1031000015 | Belt | |
| 37 | 1130100102 | Refrigerant hose assembly | |
| 38 | 1020700717 | Frame wiring harness | |
| 39 | 1020700716 | Single-wire sealed socket | |
| 40 | 1010100058 | Gear motor | |
| 41 | 1010301757 | Electro-hydraulic valve | |
| 42 | 207130011 | Refrigerant | |
| 43 | 204100012 | Refrigeration oil for air conditioning | |
| 44 | 1020700405 | Plastic copper core wire qvr | |
| 45 | 1020700408 | Plastic copper core wire qvr |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
