QUY260CR-32Y
TIP BOOM ASSY. D00663400100800001Y

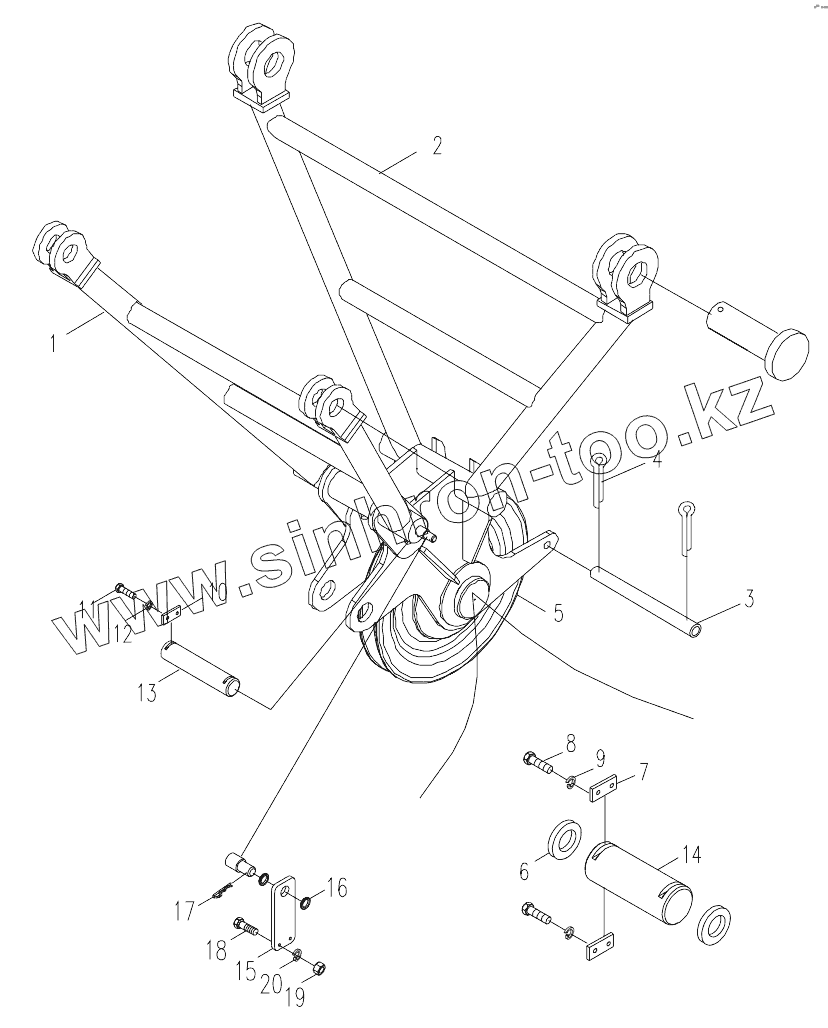

Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. TIP BOOM ASSY. D00663400100800001Y
