Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. SLEWING TABLE ELECTRICS D00663406340000000Y
1
1
2
2
2
3
3
4
4
5
6
6
7
8
9
10
11
12
13
14
14
15
16
17
17
18
18
19
20
21
22
23
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

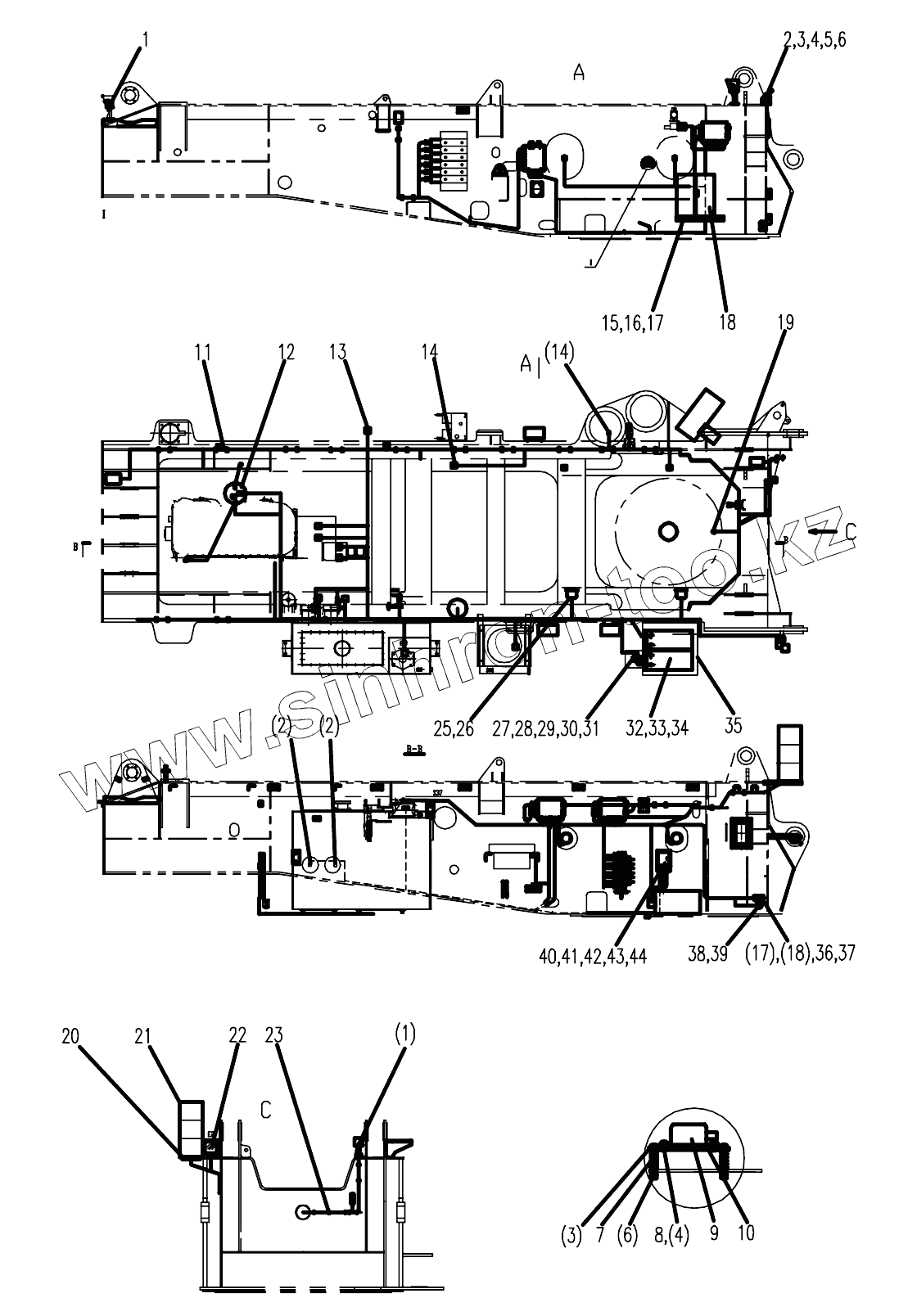

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00663006320600002 | Camera installation diagram | |
| 2 | 1020500141 | Limit switch | |
| 3 | 1040000219 | Bolt | |
| 4 | 1040300048 | Washer | |
| 5 | 1040300060 | Washer | |
| 6 | 1040200107 | Nut | |
| 7 | 00663006320001030 | Spring | |
| 8 | 1040100057 | Screw | |
| 9 | 1021400015 | Inclination sensor | |
| 10 | 00663006320001020 | Plate | |
| 11 | 00663406340200002 | Wire harness of slewing table | |
| 12 | 00663406340600000 | Slewing table components wiring diagram | |
| 13 | 1021400248 | Fuel level sensor | |
| 14 | 1021400049 | Pressure sensor | |
| 15 | 1040000018 | Bolt | |
| 16 | 1040300066 | Washer | |
| 17 | 1040300063 | Washer | |
| 18 | 00663406340400001 | Electrical control box assy for slewing table | |
| 19 | 1020500588 | Proximity switch | |
| 20 | 00663400500001140 | Tricolor light support | |
| 21 | 1020400086 | LED acoustic signal light | |
| 22 | 1020400057 | Acoustic alarm | |
| 23 | 1990200005 | Nylon strap | |
| 24 | 1020500089 | Limit switch | |
| 25 | 1020500136 | Overlowering switch | |
| 26 | 1040100004 | Screw | |
| 27 | 1029900085 | Main power switch | |
| 28 | 1040000132 | Bolt | |
| 29 | 1040300067 | Washer | |
| 30 | 1040300061 | Washer | |
| 31 | 1040200113 | Nut | |
| 32 | 1020900004 | Lead-acid battery | |
| 33 | 1020600086 | Positive pole of battery terminal | |
| 34 | 1020600087 | Negative pole of battery terminal | |
| 35 | 1020900005 | Battery support assy | |
| 36 | 1029900063 | Basin electric horn | |
| 37 | 1040000288 | Bolt | |
| 38 | 1020400228 | Alarm | |
| 39 | 1040100063 | Screw | |
| 40 | 1020500654 | Battery master switch | |
| 41 | 1040000109 | Bolt | |
| 42 | 1040300062 | Washer | |
| 43 | 1040300051 | Washer | |
| 44 | 1040200111 | Nut | |
| 45 | 1021400292 | Pressure sensor | |
| 46 | 1990200004 | Nylon strap | |
| 47 | 1990200007 | Nylon strap | |
| 48 | 1020700450 | Corrugated pipe |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
