QUY260CR-32Y
RIGHT CRAWLER CARRIER ASSY. D00663402500000003Y

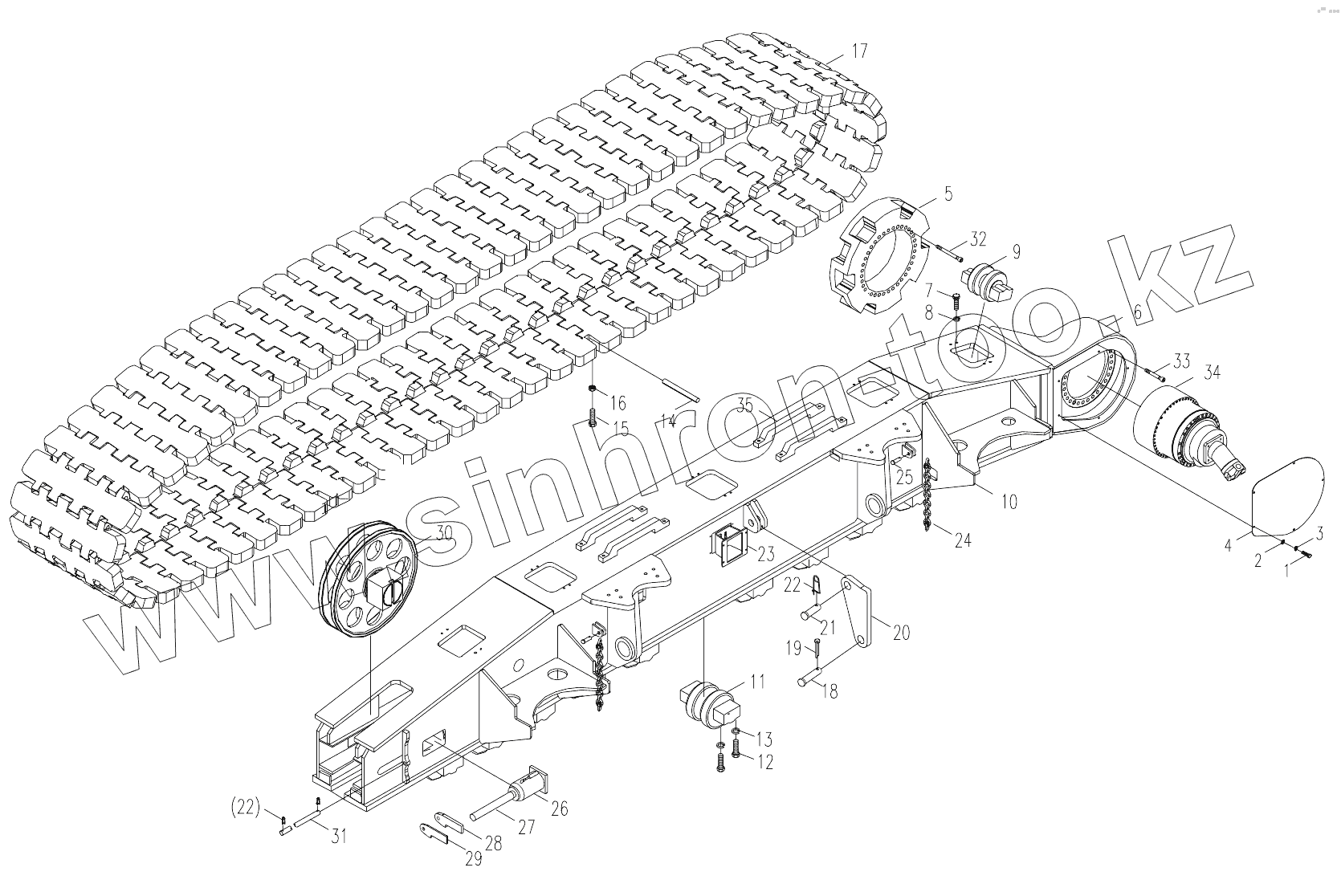

Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. RIGHT CRAWLER CARRIER ASSY. D00663402500000003Y
