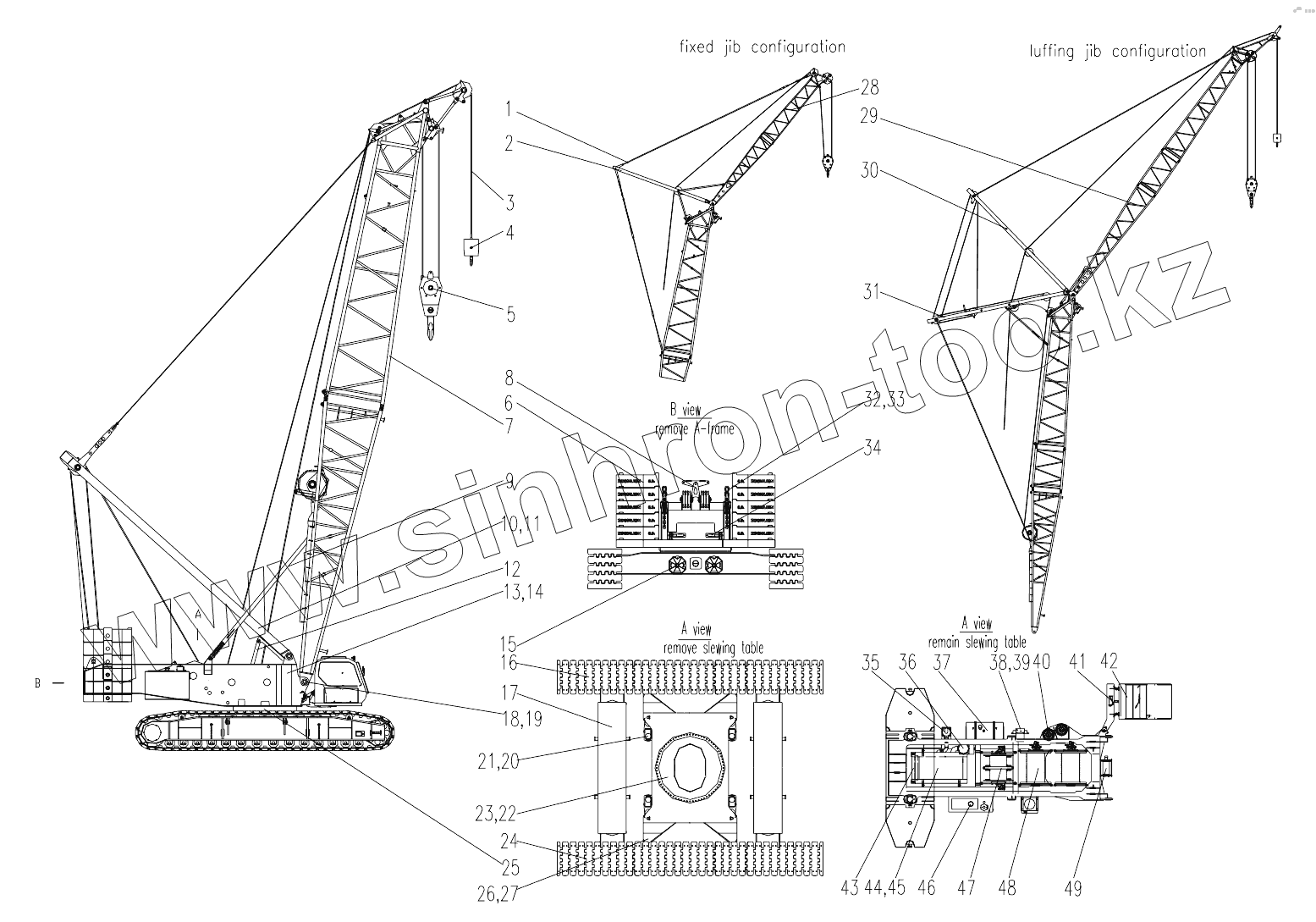

Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. QUY260CR CRAWLER CRANE D00663400002000000Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
Позиция на иллюстрации Заводской номер детали Название детали
1 00663405400000001 Anchoring rods assy
2 00663307800000002 FA-frame
3 00663408200000000 Wire rope
4 00663404200000001 Auxiliary load hook
5 00663404100000001 Main load hook
6 00663400610000000 Counterweight
7 00663400120000000 Main boom assy
8 00663302100000002 Derricking crown block
9 00663403101000000 Tilting-back support assy
10 00663401800000000 A–frame assy
11 00663403600000001 Mounting cylinder
12 1010200089 A–frame erection cylinder
13 00663400400000001 Slewing table
14 00663404600000001 Slewing table attachments
15 00663400800000000 Support plate assembly
16 00663402400000004 Left crawler carrier assy
17 1090900007 Central counterweight
18 00663305300000000 Boom pivot section bolting cylinder
19 00663404700000001 Structural member assembly
20 00663405800000000 Folding bracket
21 00663302200000000 Support cylinder
22 00663402800000001 Undercarriage central section
23 00663401700000001 Pipe layout – undercarriage hydraulic system
24 00663402500000004 Right crawler carrier assy
25 00663404500000000 Slewing ring assembly
26 00663409600000000 Crawler carrier assembly
27 00663303200000000 Crawler carrier bolting cylinder
28 00663300200000001 Fixed jib
29 00663406620000000 Luffing jib
30 00663408020000000 WA-frame 1
31 00663407920000000 WA-frame 2
32 00663404910000000 Counterweight assembly
33 1010200006 Counterweight lifting cylinder
34 00663307100000001 Counterweight bolting cylinder
35 00663301210000000 Exhaust system
36 00663301410000001 Air intake system
37 00663401110000000 Fuel system of Cummins engine
38 00663404800000000 Hydraulic elements assembly
39 00663401600000001 Pipe layout – superstructure hydraulic system
40 00663304400000003 Slewing mechanism
41 1010200003 Operator’s cab tilting cylinder
42 00663400700000001 Operator’s cab assembly
43 00663301310000000 Cooling system
44 00663301010000000 Engine and suspension system
45 00663203900000000 Oil pump drive device
46 00663403000000000 Hydraulic tank
47 00663402000000001 Derricking mechanism
48 00663403500000002 Hoisting mechanism
49 00663408300000000 Reeving winch
50 00663405900000000 Pipe layout – central lubricating system
51 00663307620000000 Air conditioning
52 00663400000001010 Painting drawing for QUY260 crawler crane
53 00663407000000000 Instruction board assembly
54 00663405100000001 Cummins engine housing assembly
55 00663400500000002 Boarding assembly
56 00663401510000000 Hydraulic system diagram
56 00663401500000001 Hydraulic system diagram
57 00663405600000002 Load moment limiter assembly
58 00663306140000000 Superstructure electrics
59 00663306220000000 Operator’s cab electrics
60 00663306340000000 Slewing table electrics
61 00663406410000001 Boom electrics
62 00663409100000000 Attached tools
63 00663409200000001 Attached spare parts list
64 00663301900000002 A – frame erection mechanism assembly
65 00663409900000000 Technical documents
66 204060026 10# aviation hydraulic oil
66 204060004 Hydraulic oil
66 204060001 Hydraulic oil
66 204060000 Hydraulic oil
67 00663408500000000 Pipe layout - hydraulic circuit of winches in the slewing table
68 00663408600000000 Pipe layout - hydraulic circuit of slewing mechanism
69 00663408700000000 Pipe layout - hydraulic circuit of auxiliary devices
70 00663408800000000 Pipe layout - boom hydraulic circuit
71 00663409700000000 Technical requirements for package and transportation
72 00663406900000002 Boom section assy
73 00663200900000000 Intercooling system
74 00663400300000000 Heavy fixed jib assy
75 00663405000000000 Electric assembly
76 00663408910000000 Hydraulic pipe assy of Rexroth system
