MAIN BOOM ANCHORING RODS D00663405400200001Y

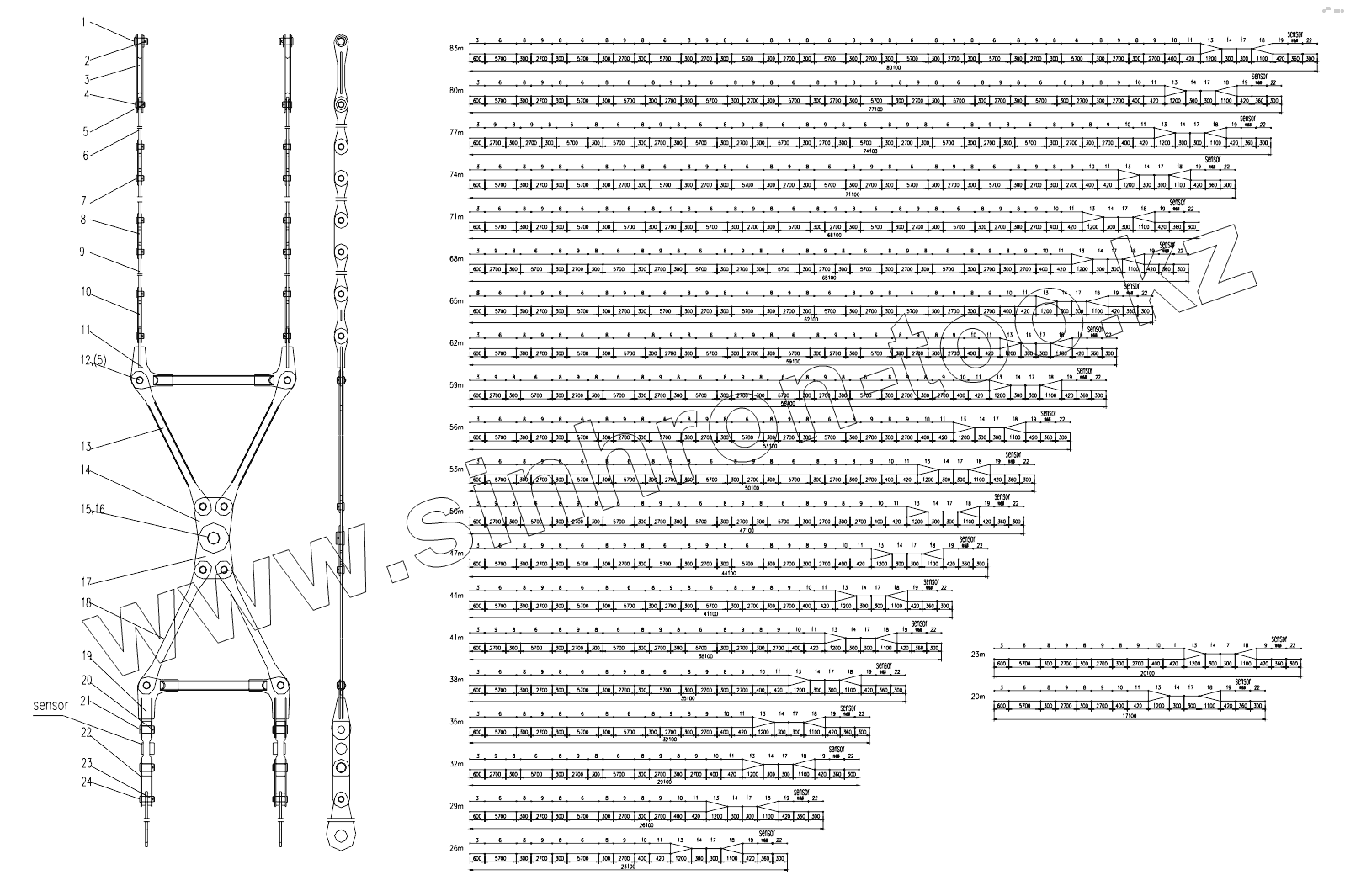

Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. MAIN BOOM ANCHORING RODS D00663405400200001Y
