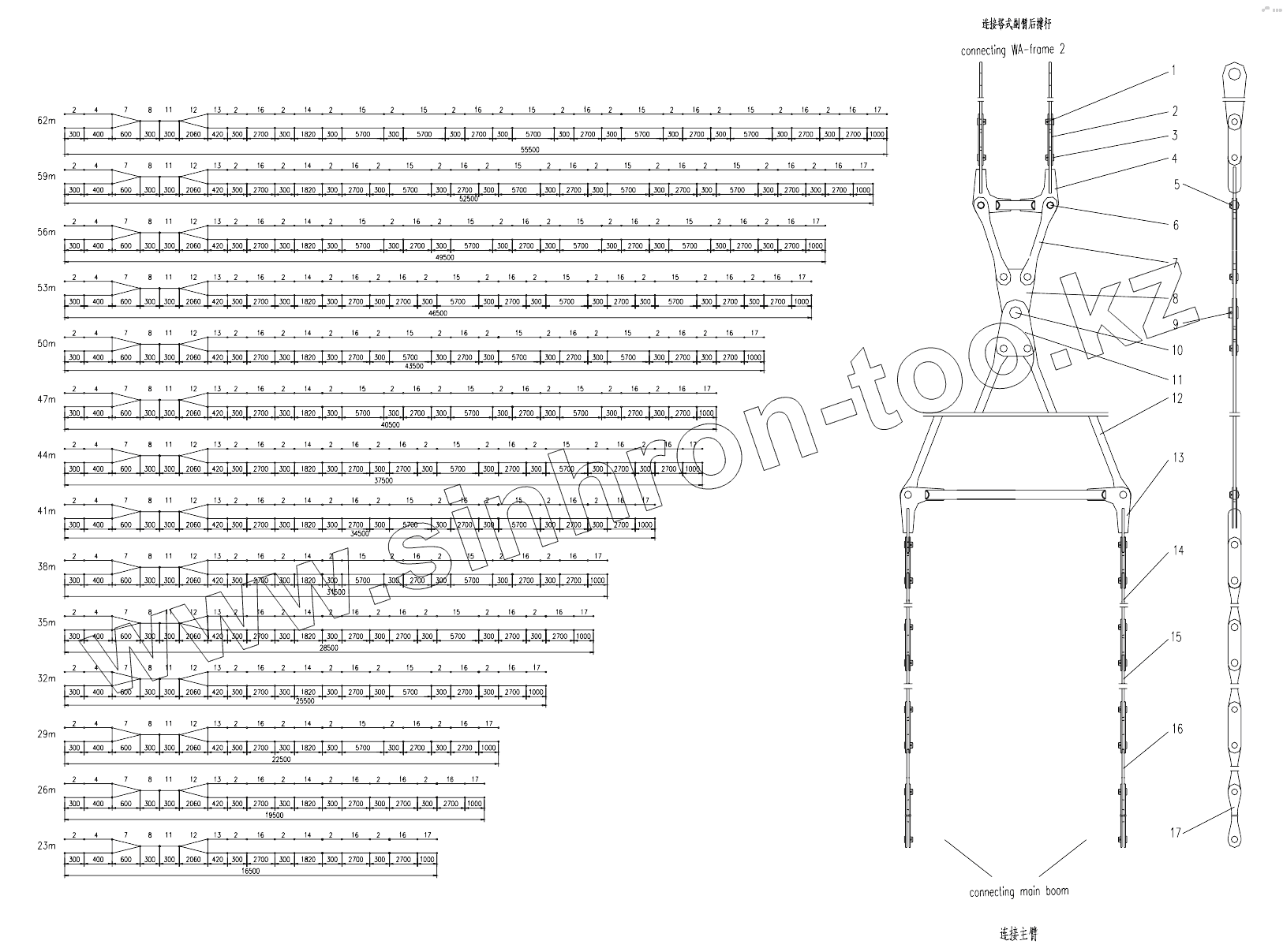

Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. LUFFING JIB REAR ANCHORING RODS D00663405400600001Y
