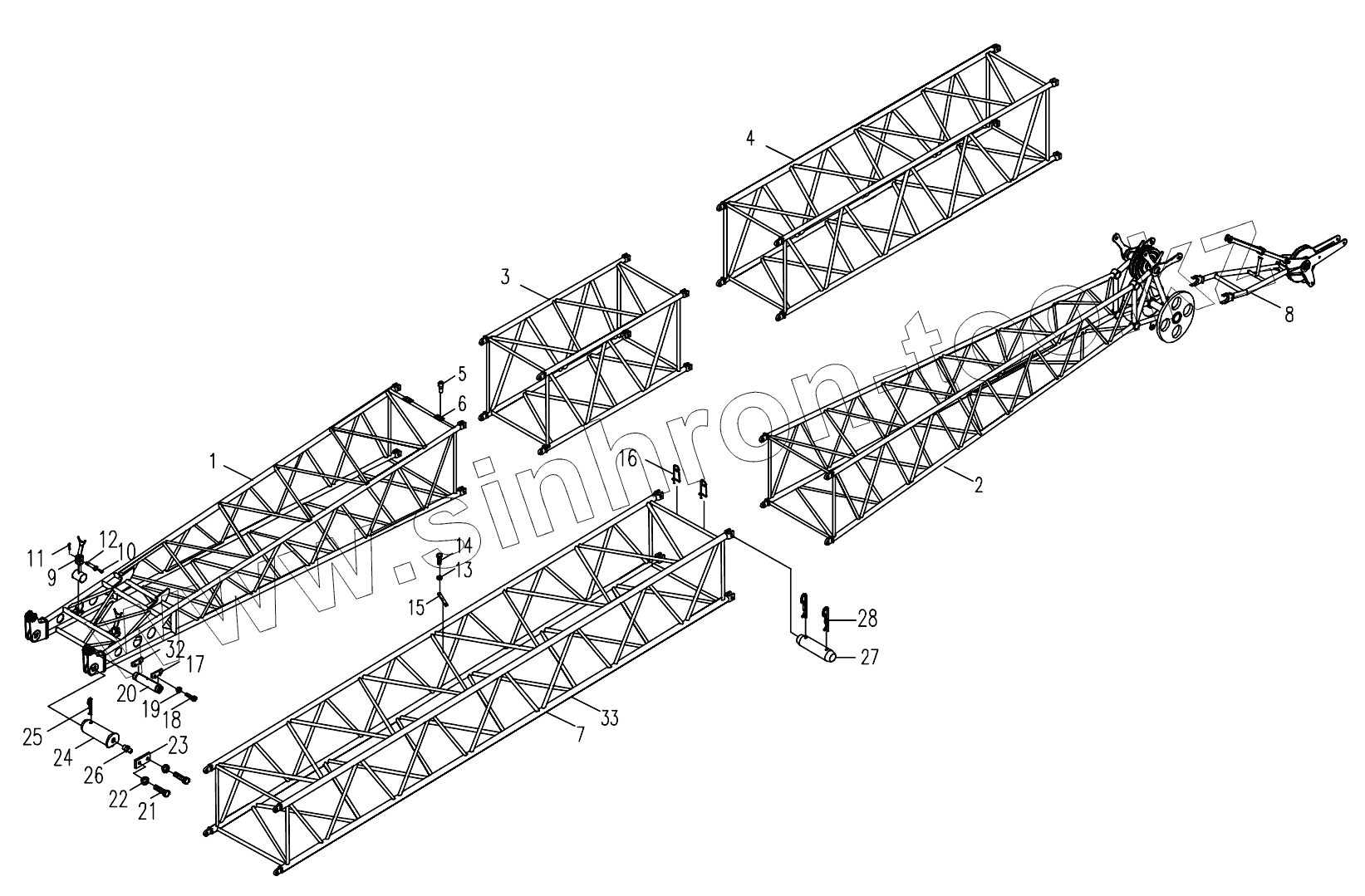

Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. LUFFING JIB D00663406620000000Y

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
32
33
Позиция на иллюстрации Заводской номер детали Название детали
1 00663406620200000 Luffing jib pivot section
2 00663406600400001 Luffing jib head assy
3 00663406620400000 3m luffing jib intermediate section
4 00663406620600000 6m luffing jib intermediate section
5 1040100109 Screw
6 00663306600001050 Pad
7 00663406601000000 9m luffing jib intermediate section
8 00663406601200001 Tip boom assy
9 00663306601800000 Pendulum
10 1040100182 Screw
11 006340000029 Spring-loaded pin
12 00663306600001060 Pin spindle
13 1040300094 Washer
14 1040000267 Bolt
15 00663300200001080 Nylon plate
16 00663300100001230 Retaining pin
17 00663306600001071 Retaining plate
18 1040000094 Bolt
19 1040300054 Washer
20 00663406600001031 Shaft
21 1040000177 Bolt
22 1040300065 Washer
23 00663300200001071 Retaining plate
24 00663406600001051 Shaft
25 00663300200001040 Retaining spring
26 1080000002 Oil cup
27 00663406600001011 Pin spindle
28 006340000001 Spring-loaded pin
29 00663406601400000 3m luffing jib intermediate section attachments welded
30 00663406601600000 6m luffing jib intermediate section attachments welded
31 00663406601800000 9m luffing jib intermediate section attachments welded
32 00663106600001020 Retaining plate
33 00663406620800000 9m luffing jib intermediate section
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
