FOLDING BRACKET D00663405800000000Y

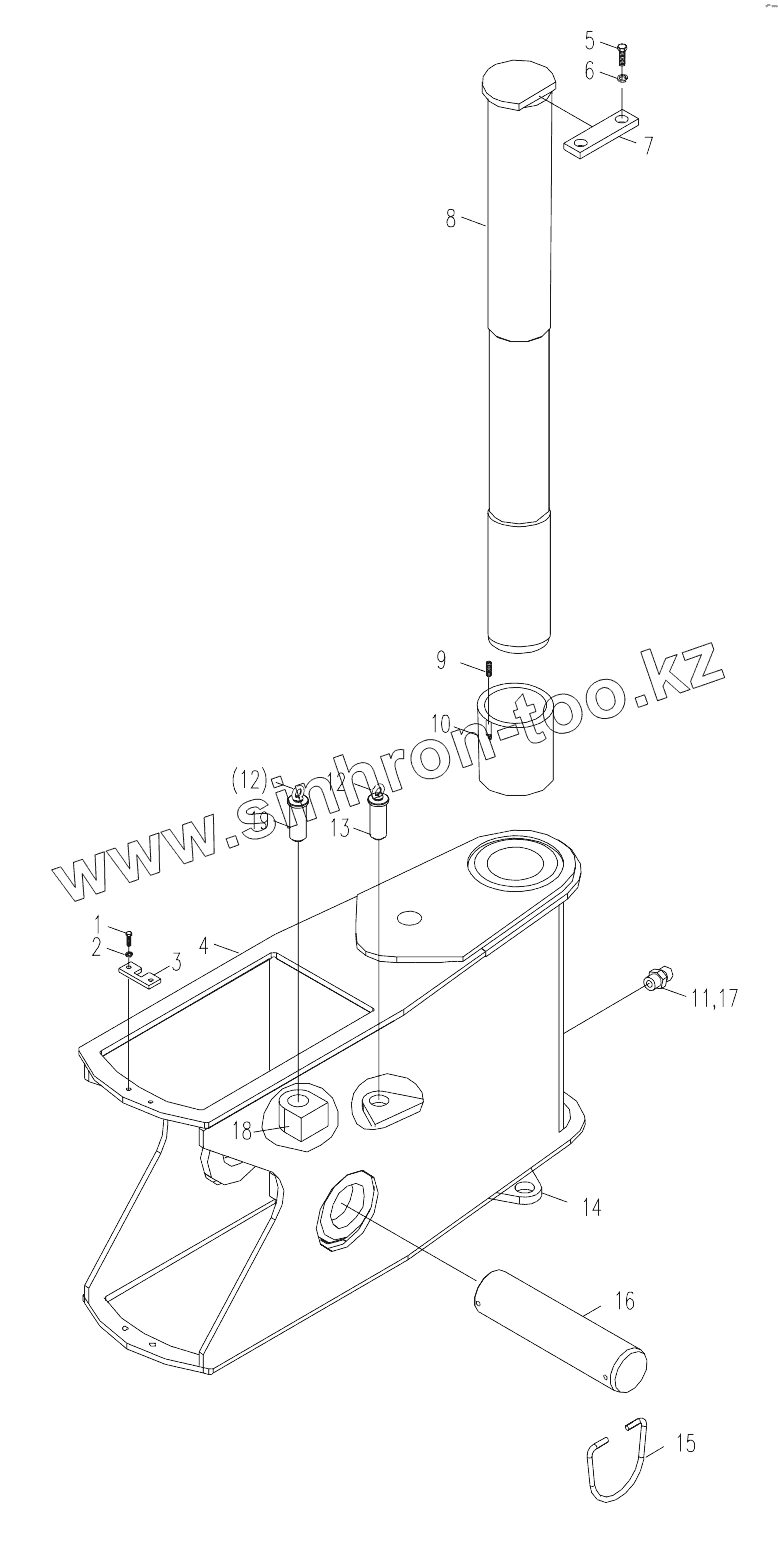

Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. FOLDING BRACKET D00663405800000000Y
