EXHAUST SYSTEM D00663301210000000Y

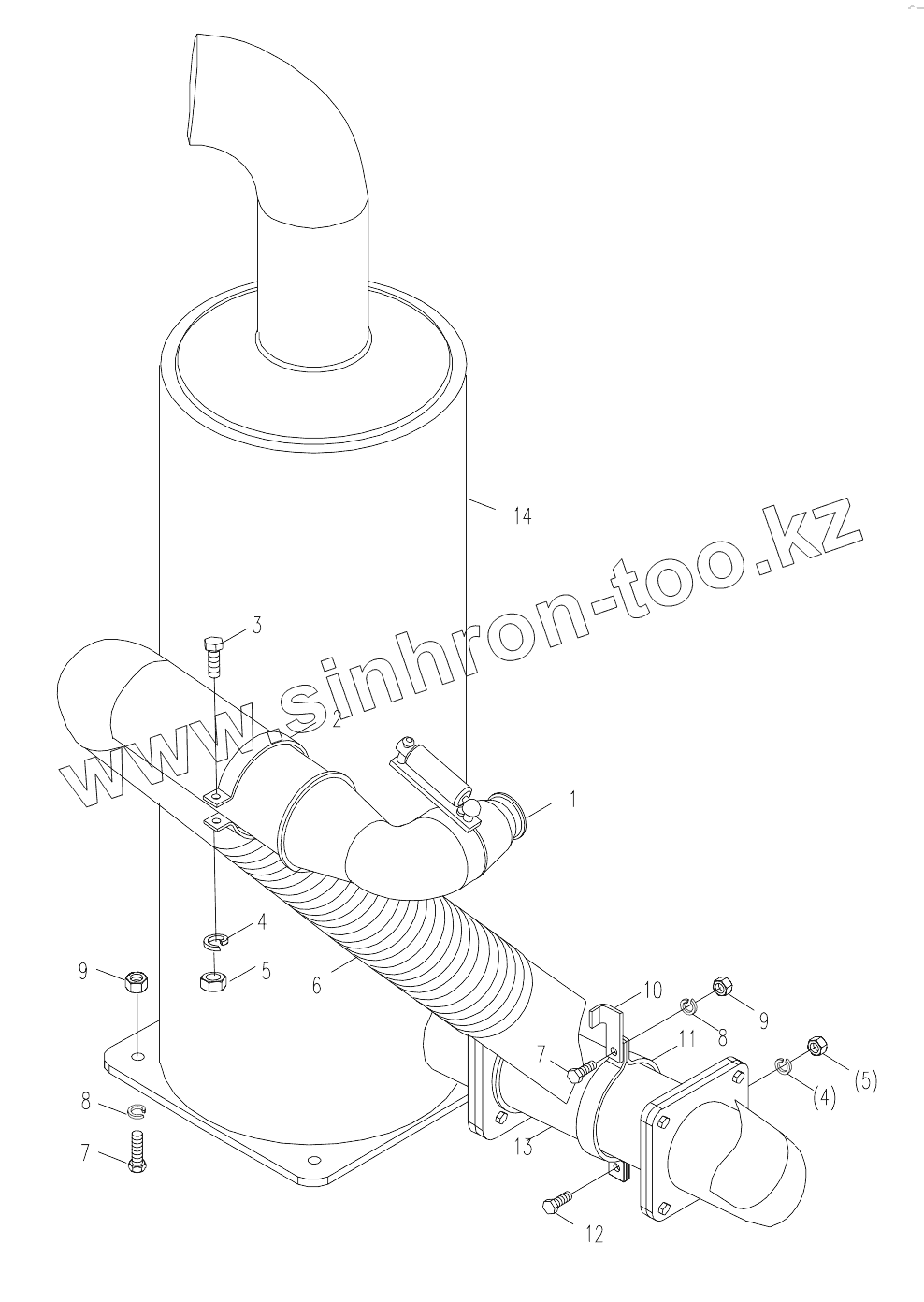

Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. EXHAUST SYSTEM D00663301210000000Y
