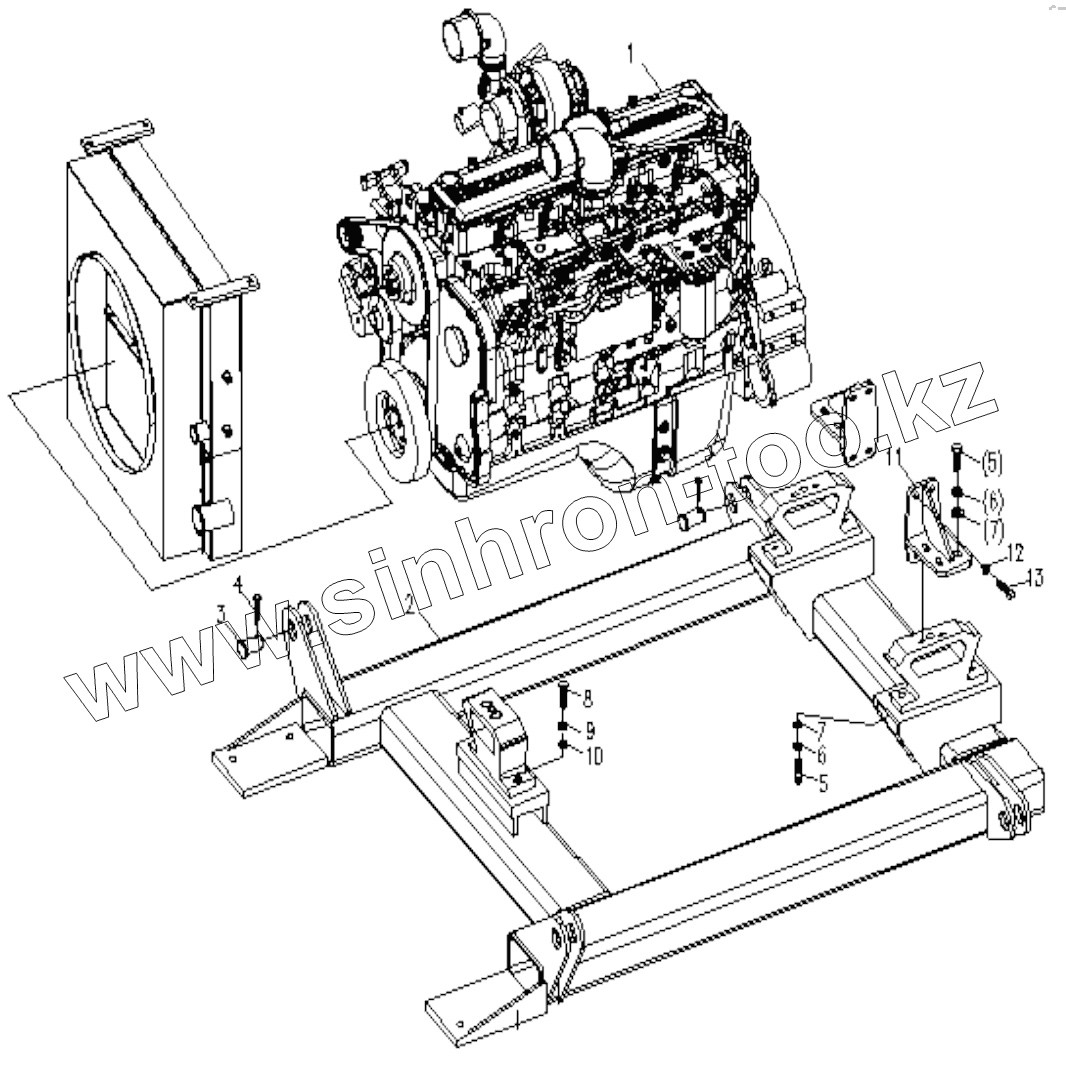

Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. ENGINE AND SUSPENSION SYSTEM D00663301010000000Y
