COUNTERWEIGHT LIFTING CYLINDER D1010200006Y

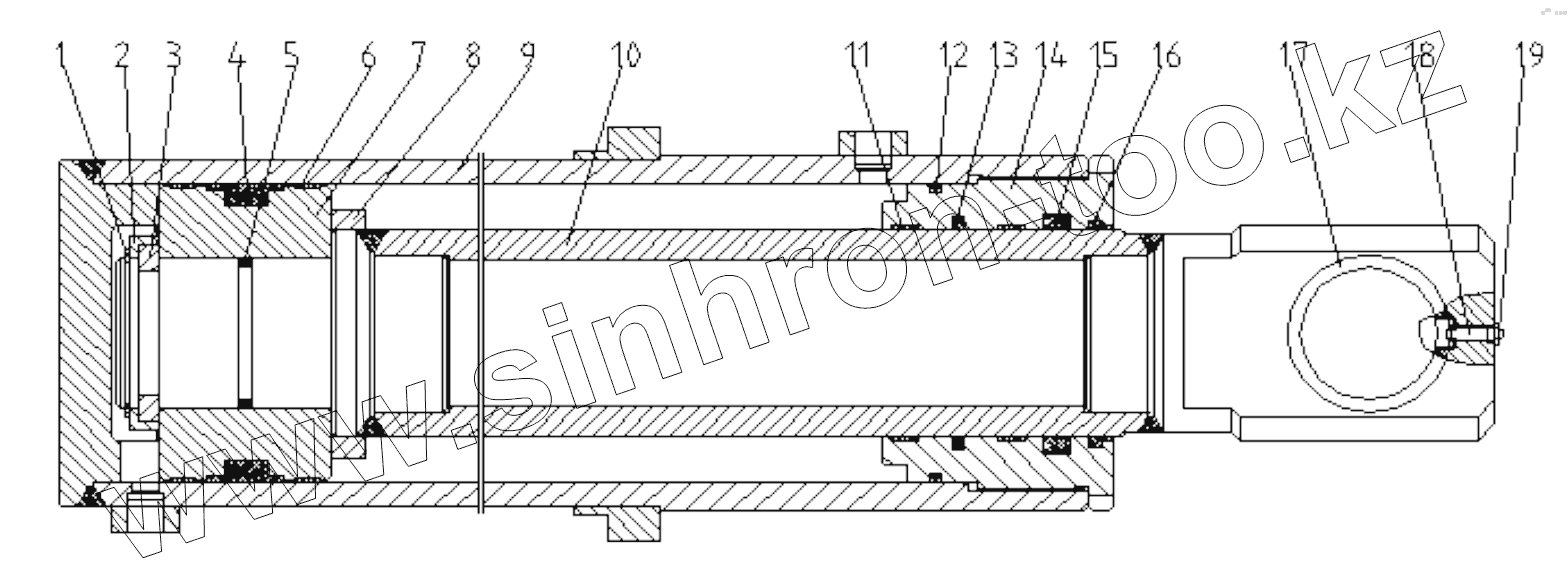

Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. COUNTERWEIGHT LIFTING CYLINDER D1010200006Y
