5. COUNTERWEIGHT BOLTING CYLNDER D00663307100000001Y

Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. COUNTERWEIGHT BOLTING CYLNDER D00663307100000001Y

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 33X-4Z 47X-5RZ K56X-6RZ PL2304 (2021) QUY260CR-32Y QY55V53232Z RN (90-110 л.с.) RS (2021) RT-100 (2013) RT-35 (2013) RT-55 (2013) RT-551 (4x4) (2013) RT-75 (2013) ZCC1100H (2014) ZD160T(S,SH, CS)-3 (2012) ZE205E (2013) ZLJ5480JQZV3 (2013) ZLJ5500V3 (2013) ZLJ5550JQZV3.2 (2016) ZT20J (2019) ZT68J (2019)

Схема > Не выбрано QUY260CR CRAWLER CRANE D00663400002000000Y MAIN BOOM ASSY. D00663400120000000Y MAIN BOOM HEAD ASSY. D00663400120400000Y MAIN BOOM HEAD ATTACHMENTS ASSEMBLY D00663300102600001Y MAIN BOOM PIVOT SECTION ATTACHMENTS ASSEMBLY D00663400102400001Y MAIN BOOM PIVOT SECTION ATTACHMENTS ASSEMBLY D00663400112400001Y ROPE SUPPORT D00663300102000000Y ANGLE INDICATOR D00663300102200000Y TIP BOOM ASSY. D00663400100800001Y 3M MAIN BOOM INTERMEDIATE SECTION ATTACHMENTS ASSEMBLY D00663300102800001Y 6M MAIN BOOM INTERMEDIATE SECTION ATTACHMENTS ASSEMBLY D00663300103000001Y 9M MAIN BOOM INTERMEDIATE SECTION ATTACHMENTS ASSEMBLY D00663300103200001Y LUFFING JIB DERRICKING WINCH D00663402000400002Y MAIN LOAD HOOK D00663404100000001Y LOAD HOOK (160/100T) D00663404200200002Y LOAD HOOK (50T) D00663404200400002Y 30T LOAD HOOK D00663304200600002Y LOAD HOOK (16t) D00663804200800000Y MAIN BOOM TILTING-BACK SUPPORT D00663303100200000Y MAIN BOOM ANCHORING RODS D00663405400200001Y LIGHT ANCHORING RODS D00663405401000001Y INTERMEDIATE TENSIONERS ON LIGHT DUTY BOOM D00663405401200001Y FIXED JIB D00663300200000001Y FIXED JIB HEAD D00663300200600002Y FIXED JIB FRONT ANCHORING RODS D00663305400600000Y FIXED JIB REAR ANCHORING RODS D00663405400400001Y FA-FRAME D00663307800000002Y FRONT TILTING-BACK SUPPORT OF FIXED JIB D00663303100600000Y REAR TILTING-BACK SUPPORT OF FIXED JIB D00663303100400000Y FIXED JIB FRONT ANCHORING RODS ( CRANE USED TO LIFT TUNNEL BORING MACHINE) D00663405411000000Y HEAVY FIXED JIB ASSY. D00663400300000000Y FRONT ANCHORING RODS OF HEAVY FIXED JIB D00663405401400000Y FIXED JIB REAR ANCHORING RODS ( CRANE USED TO LIFT TUNNEL BORING MACHINE ) D00663405411200000Y LUFFING JIB D00663406620000000Y LUFFING JIB HEAD ASSY. D00663406600400001Y TIP BOOM ASSY. D00663406601200001Y LUFFING JIB FRONT ANCHORING RODS D00663405401800000Y WA-FRAME 1 D00663408020000000Y WA-FRAME 2 DD00663407920000000Y LUFFING JIB REAR ANCHORING RODS D00663405400600001Y REAR TILTING-BACK SUPPORT OF LUFFING JIB D00663403100800002Y SUPPORT ROD D00663303101400000Y TILTING-BACK SUPPORT OF LUFFING JIB D00663403101200003Y BOOM ELECTRICS D00663406410000001Y MAIN BOOM ELECTRICS D00663406410200001Y FIXED JIB ELECTRICS D00663406410400000Y LUFFING JIB ELECTRICS D00663406410600001Y PIPE LAYOUT DRAWING-BOOM HYDRAULIC SYSTEM D00663408800000000Y ENGINE AND SUSPENSION SYSTEM D00663301010000000Y INTERCOOLING SYSTEM D00663200900000000Y FUEL SYSTEM OF CUMMINS ENGINE D00663401110000000Y FUEL PRE – FILTER PRE – ASSEMBLY D00663201100200002Y EXHAUST SYSTEM D00663301210000000Y COOLING SYSTEM D00663301310000000Y AIR INTAKE SYSTEM D00663301410000001Y HYDRAULIC TANK D00663403000000000Y OIL PUMP DRIVE DEVICE OPERATOR’S CAB ASSEMBLY D00663400700000001Y OPERATOR’S CAB ELECTRICS D00663406220000000Y A-FRAME ASSY. D00663401800000000Y A-FRAME ERECTION MECHANISM ASSEMBLY D00663301900000002Y MOUNTING CYLINDER D00663403600000001Y PIVOT SECTION BOLTING CYLINDER D00663305300000000Y SLEWING TABLE ELECTRICS D00663406340000000Y ACCUMULATOR CYLINDER ASSEMBLY D00663403101000000Y BOARDING ASSEMBLY D00663400500000002Y CUMMINS ENGINE HOUSING ASSEMBLY D00663405100000001Y MAIN BOOM DERRICKING WINCH D00663402000200001Y ROPE SUPPORT ASSEMBLY D00663402000600000Y DERRICKING CROWN BLOCK D00663302100000002Y HOISTING WINCH D00663403500000002Y SLEWING MECHANISM D00663304400000003Y SLEWING RING ASSEBMLY D00663404500000000Y FIXING DEVICE FOR SLEWING TABLE D00663304700200001Y MAIN BOOM ASSEMBLY D00663304700400001Y ROPE PROTECTIVE COVER ASSEMBLY D00663304701200002Y SLEWING TABLE SEAL PLATE ASSEMBLY D00663404700400000Y REEVING WINCH ASSEMBLY D00663404700600000Y COUNTERWEIGHT ASSEMBLY D00663404910000000Y COUNTERWEIGHT BOLTING CYLNDER D00663307100000001Y AIR CONDITIONING D00663407620000000Y HYDRAULIC SYSTEM DIAGRAM D00663401500000001Y HYDRAULIC SYSTEM DIAGRAM D00663401510000000Y PIPE LAYOUT – SUPERSTRUCTURE HYDRAULIC SYSTEM D00663401600000001Y PIPE LAYOUT – HYDRAULIC CIRCUITS OF WINCHES IN THE SLEWING TABLE D00663408500000000Y PIPE LAYOUT – HYDRAULIC CIRCUITS OF SLEWING TABLE D00663408600000000Y PIPE LAYOUT – HYDRAULIC CIRCUITS OF AUXILIARY DEVICES D00663408700000000Y REEVING WINCH D00663408300000000Y SUPPORT PLATE ASSEMBLY D00663400800000000Y SUPPORT CYLINDER D00663302200000000Y FOLDING BRACKET D00663405800000000Y LEFT CRAWLER CARRIER ASSY. D00663402400000003Y RIGHT CRAWLER CARRIER ASSY. D00663402500000003Y CRAWLER CARRIER BOLTING CYLINDER D00663303200000000Y ASSEMBLY OF LADDER ON CRAWLER CARRIER D00663304700600001Y CRAWLER CARRIER ASSEMBLY D00663409600000000Y PIPE LAYOUT – UNDERCARRIAGE HYDRAULIC SYSTEM D00663401700000002Y OPERATOR’S CAB-1 D1130000067Y OPERATOR’S CAB-2 D1130000067Y OPERATOR’S CAB-3 D1130000067Y OPERATOR’S CAB-4 D1130000067Y OPERATOR’S CAB-5 D1130000067Y OPERATOR’S CAB-6 D1130000067Y OPERATOR’S CAB-7 D1130000067Y OPERATOR’S CAB-8 D1130000067Y OPERATOR’S CAB-9 D1130000067Y OPERATOR’S CAB-10 D1130000067Y DIESEL ENGINE D1000000004Y A-FRAME ERECTION CYLINDER D1010200089Y OPERATOR’S CAB TILTING CYLINDER D1010200003Y COUNTERWEIGHT LIFTING CYLINDER D1010200006Y LOAD MOMENT LIMITER ASSEMBLY D00663405600400000Y LOAD MOMENT LIMITER D00663405600800000Y

1

2

3

4

5

6

7

8

9

10

11

12

13

14

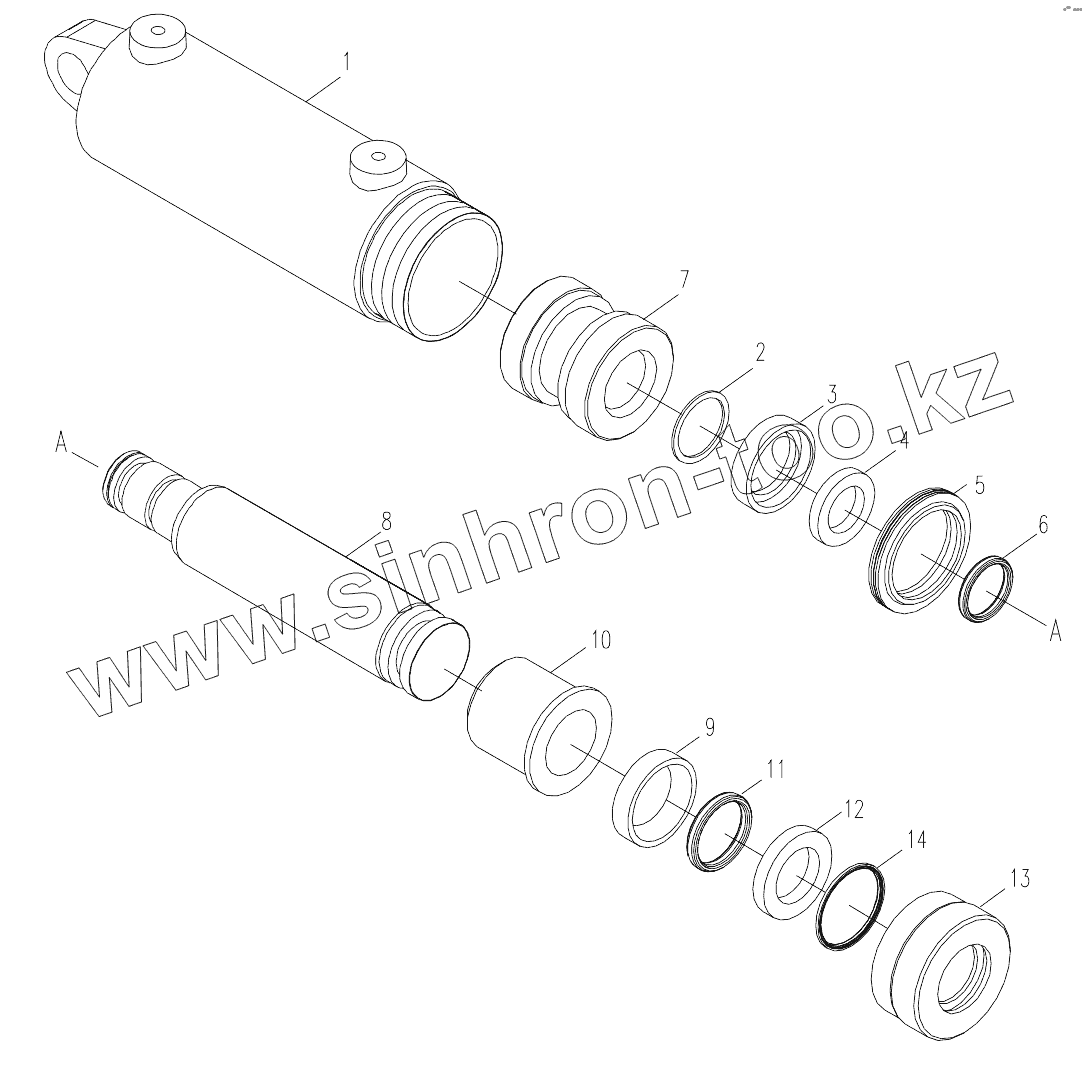

Позиция на иллюстрации	Заводской номер детали		Название детали
1	00663307100200001		Cylinder
2	1040300153		Retainer ring
3	00663303200001030		Sleeve ring
4	00663303200001040		Retainer ring
5	1081000233		D-A-S combination seal ring
6	1081000052		O-ring
7	00663307100001010		Piston
8	00663307100001031		Piston rod
9	1081400115		Supporting ring
10	00663307100001020		Guide bush
11	1081000027		O-ring 63x5.7 GB1235-1976
12	1081000232		U-ring RU3000450-WUAQ3
13	00663305300001040		Cover cap
14	1081200014		Dust ring
