Каталог запасных частей к технике: Zoomlion QUY260CR-32Y. BOARDING ASSEMBLY D00663400500000002Y
1
1
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
13
13
14
14
14
15
15
15
16
17
17
17
17
17
17
17
18
19
20
21
22
23
24
24
25
25
26
26
26
27
27
28
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

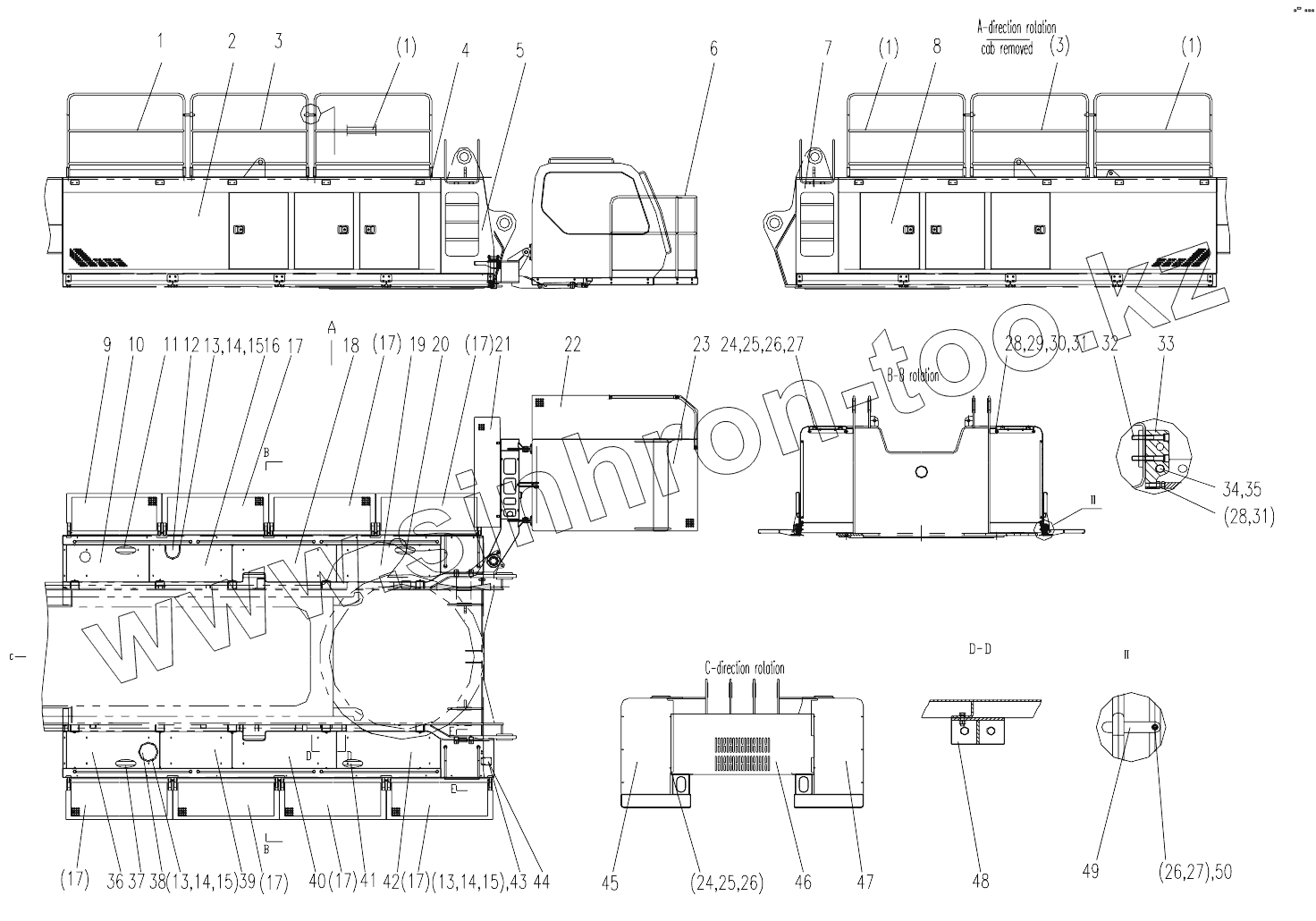

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00663400502000001 | Guardrail | |
| 2 | 1991900061 | Right hood QUY260-05-2 | |
| 3 | 00663400502400000 | Guardrail | |
| 4 | 00663400502200000 | Retaining spring | |
| 5 | 1991900063 | Right hood, front section QUY260-05-4 | |
| 6 | 00663400501800000 | Cab guardrail | |
| 7 | 1991900062 | Left hood, front section QUY260-05-3 | |
| 8 | 1991900060 | Left hood QUY260-05-1 | |
| 9 | 00663500502200000 | Platform | |
| 10 | 00663400500001010 | Aluminum panel | |
| 11 | 00663400500400000 | Frame | |
| 12 | 00663400500001120 | Cover plate | |
| 13 | 1040000233 | Bolt M6x30-8.8 GB/T5782-2000 | |
| 14 | 1040300051 | Washer | |
| 15 | 1040300062 | Washer | |
| 16 | 00663400500001020 | Aluminum panel | |
| 17 | 00663500501800000 | Platform | |
| 18 | 00663400500001030 | Aluminum panel | |
| 19 | 00663400500001040 | Aluminum panel | |
| 20 | 00663400500600000 | Frame | |
| 21 | 1991900011 | Platform, swivel arm QUY260-05-9 | |
| 22 | 1991900012 | Right platform QUY260-05-8 | |
| 23 | 1991900000 | Front platform QUY260-05-7 | |
| 24 | 1040000288 | Bolt | |
| 25 | 1040300063 | Washer | |
| 26 | 1040300066 | Washer | |
| 27 | 1040200192 | Nut | |
| 28 | 1040000108 | Bolt | |
| 29 | 1040300054 | Washer | |
| 30 | 1040300041 | Washer | |
| 31 | 1040200096 | Nut | |
| 32 | 1040100519 | Screw | |
| 33 | 00663400500001150 | Plate | |
| 34 | 00663500500001040 | Cotter pin | |
| 35 | 6340000032 | Retaining spring | |
| 36 | 00663400500001100 | Aluminum panel | |
| 37 | 00663400501000000 | Frame | |
| 38 | 00663400500001130 | Cover plate | |
| 39 | 00663400500001090 | Aluminum panel | |
| 40 | 00663400500001080 | Aluminum panel | |
| 41 | 00663400500800000 | Frame | |
| 42 | 00663400500001070 | Aluminum panel | |
| 43 | 1040200111 | Nut | |
| 44 | 00663400500001141 | Tricolor light mounting bracket | |
| 45 | 00663400500001061 | Rear left seal plate | |
| 46 | 00663400500001110 | Rear seal plate | |
| 47 | 00663400500001051 | Rear right seal plate | |
| 48 | 00663400500200000 | Support | |
| 49 | 00663100500001090 | Plate | |
| 50 | 1040100060 | Screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
