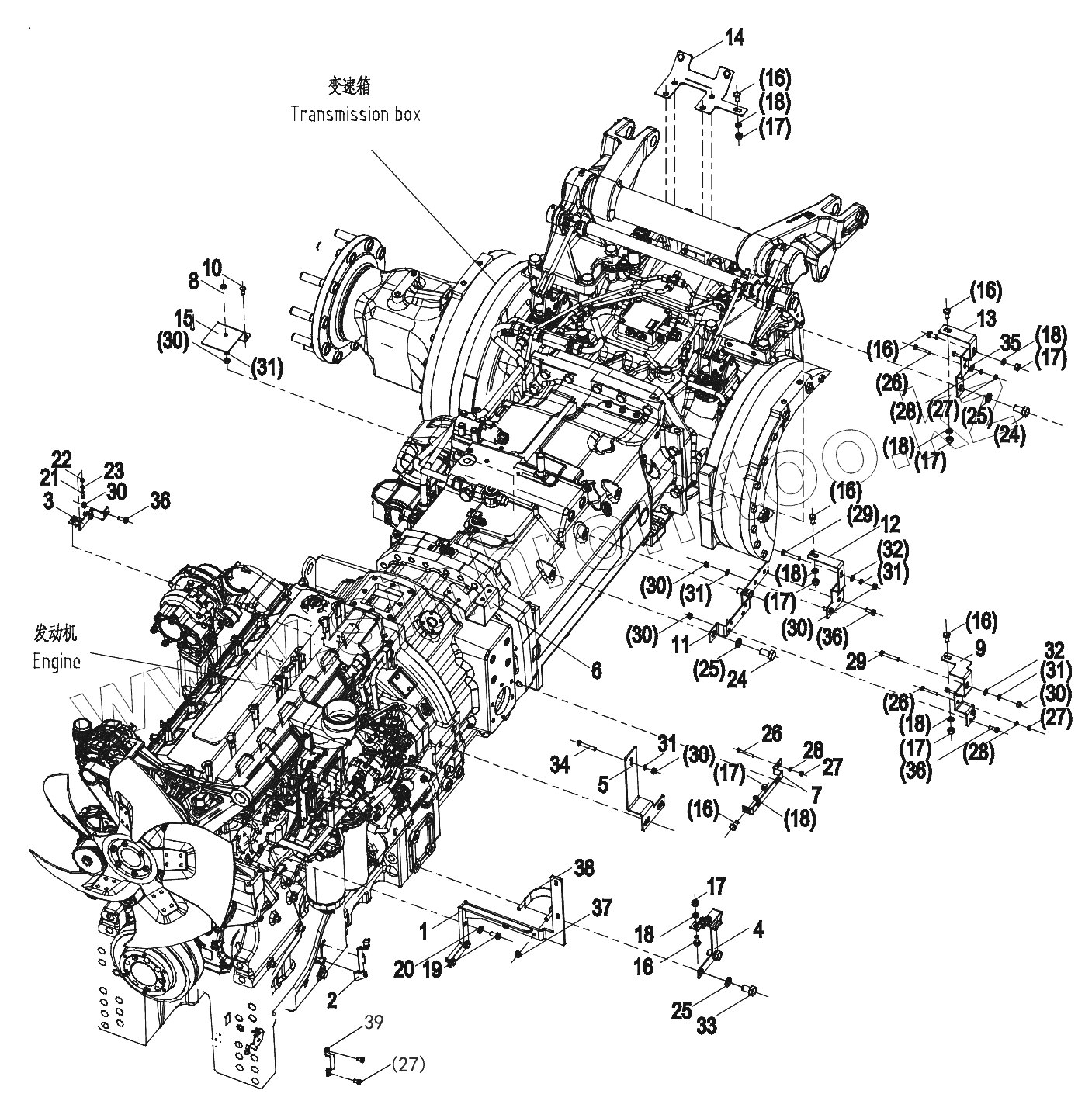

Каталог запасных частей к технике: Zoomlion PL2304. 015723084LB140000 Pipeline holder assembly LH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
16
16
16
16
16
17
17
17
17
17
17
17
18
18
18
18
18
18
18
19
20
21
22
23
24
24
25
25
25
26
26
26
27
27
27
27
28
28
28
29
29
30
30
30
30
30
30
30
31
31
31
31
31
32
32
33
34
35
36
36
36
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 015723084LC021000 | Intercooling pipe support | |
| 2 | 015723084LC022000 | Hydraulic pipe support | |
| 3 | 015723084LC023000 | Bracket welding | |
| 4 | 015723084LC020002 | Hydraulic pipe support | |
| 5 | 015723084LB140002 | Bracket | |
| 6 | 01572104701000110 | Bracket11 | |
| 7 | 01572104701000040 | Bracket4 | |
| 8 | 1040000163 | Болт M8x60-8.8 | |
| 9 | 015723084LC020004 | Hydraulic pipe support | |
| 10 | 1040000098 | Bolt | |
| 11 | 015723084LC020003 | Hydraulic pipe support | |
| 12 | 01572104701000090 | Bracket9 | |
| 13 | 01572104701000061 | Bracket6 | |
| 14 | 01572104701000070 | Bracket7 | |
| 15 | 015723084LC020006 | Priority valve bracket | |
| 16 | 1040000116 | Bolt | |
| 17 | 1040200113 | Nut | |
| 18 | 1040300067 | Washer | |
| 19 | 1040000298 | Bolt M10x1x20-8.8 | |
| 20 | 1040300533 | Washer | |
| 21 | 1040004320 | Bolt M5x15-8.8 | |
| 22 | 1040200107 | Nut | |
| 23 | 1040300060 | Washer | |
| 24 | 1040000720 | Bolt M16x20-10.9 | |
| 25 | 1040300065 | Washer | |
| 26 | 1040000506 | Bolt M6x45-8.8 | |
| 27 | 1040200111 | Nut | |
| 28 | 1040300062 | Washer | |
| 29 | 1040000062 | Bolt | |
| 30 | 1040200192 | Nut | |
| 31 | 1040300063 | Washer | |
| 32 | 1040300066 | Washer | |
| 33 | 1040000134 | Bolt | |
| 34 | 1040000649 | Болт M8x50-8.8 | |
| 35 | 1040300051 | Washer | |
| 36 | 1040000267 | Bolt | |
| 37 | 1040200398 | Nut M8-8 | |
| 38 | 01572104701290001 | Hoop welding | |
| 39 | 015723084LC020005 | Hydraulic pipe support |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
