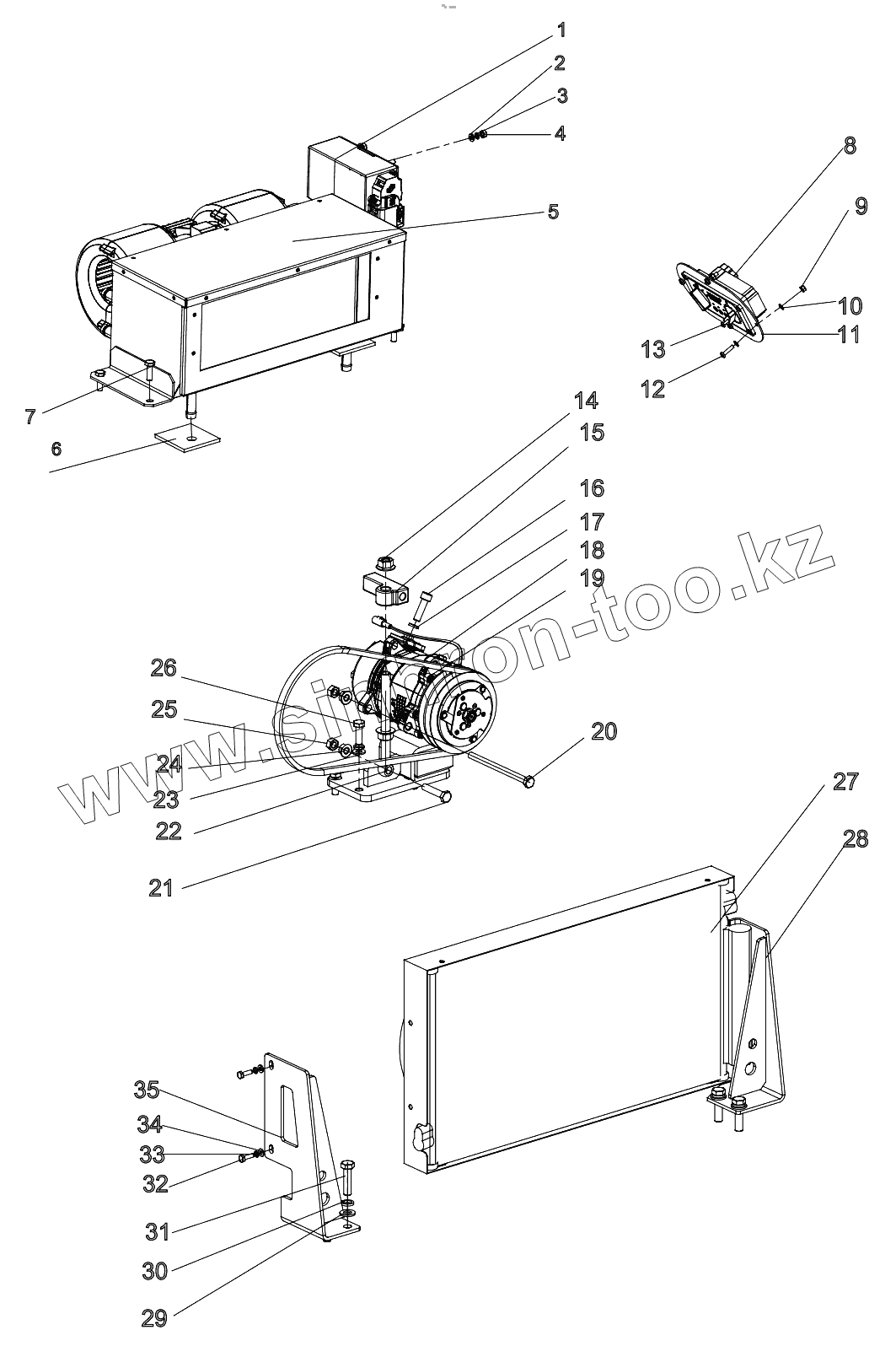

Каталог запасных частей к технике: Zoomlion PL2304. 015723081LB000000 Air conditioning system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1020521732 | Fresh air assembly | |
| 2 | 1040300561 | Шайба 6 | |
| 3 | 1040301509 | Washer | |
| 4 | 1040201892 | Nut m6-8 | |
| 5 | 1130101333 | Evaporator assembly | |
| 6 | 015723081LA080003 | Sealing element | |
| 7 | 1040102977 | Bolt M8 x 25-8.8 | |
| 8 | 1020104349 | control panel | |
| 9 | 1040200107 | Nut | |
| 10 | 1040300586 | Washer | |
| 11 | 1130101350 | Panel fixing plate 210 x110mm | |
| 12 | 1040100815 | screw | |
| 13 | 1040100617 | Screw | |
| 14 | 1040200293 | Nut m14-8 | |
| 15 | 015723081LB060002 | Support plate | |
| 16 | 015723081LB060004 | screw | |
| 17 | 1040300781 | Washer | |
| 18 | 1130101349 | Compressor assembly | |
| 19 | 1031002338 | V-belt AV x 13 1067 | |
| 20 | 1040005717 | Hexagon head bolt M10x 140-8.8 | |
| 21 | 1040001278 | Болт M10x50-10.9 | |
| 22 | 015723081LB060001 | Brace | |
| 23 | 1040302489 | Flat washer A class 10-200HV | |
| 24 | 1040200319 | Nut m10-8 | |
| 25 | 1040200679 | Nut | |
| 26 | 1040001680 | Bolt | |
| 27 | 1130101380 | Condenser assembly | |
| 28 | 1999906791 | Condenser left support | |
| 29 | 1040300607 | Washer 12-140hv | |
| 30 | 1040300054 | Washer | |
| 31 | 1040005576 | Hexagon head bolt - Full Thread M12 x 45-8.8 | |
| 32 | 1040005587 | Bolt M6 x 20-8.8 | |
| 33 | 1040302803 | Spring washer | |
| 34 | 1040300610 | Washer | |
| 35 | 1999906792 | Condenser right bracket |
