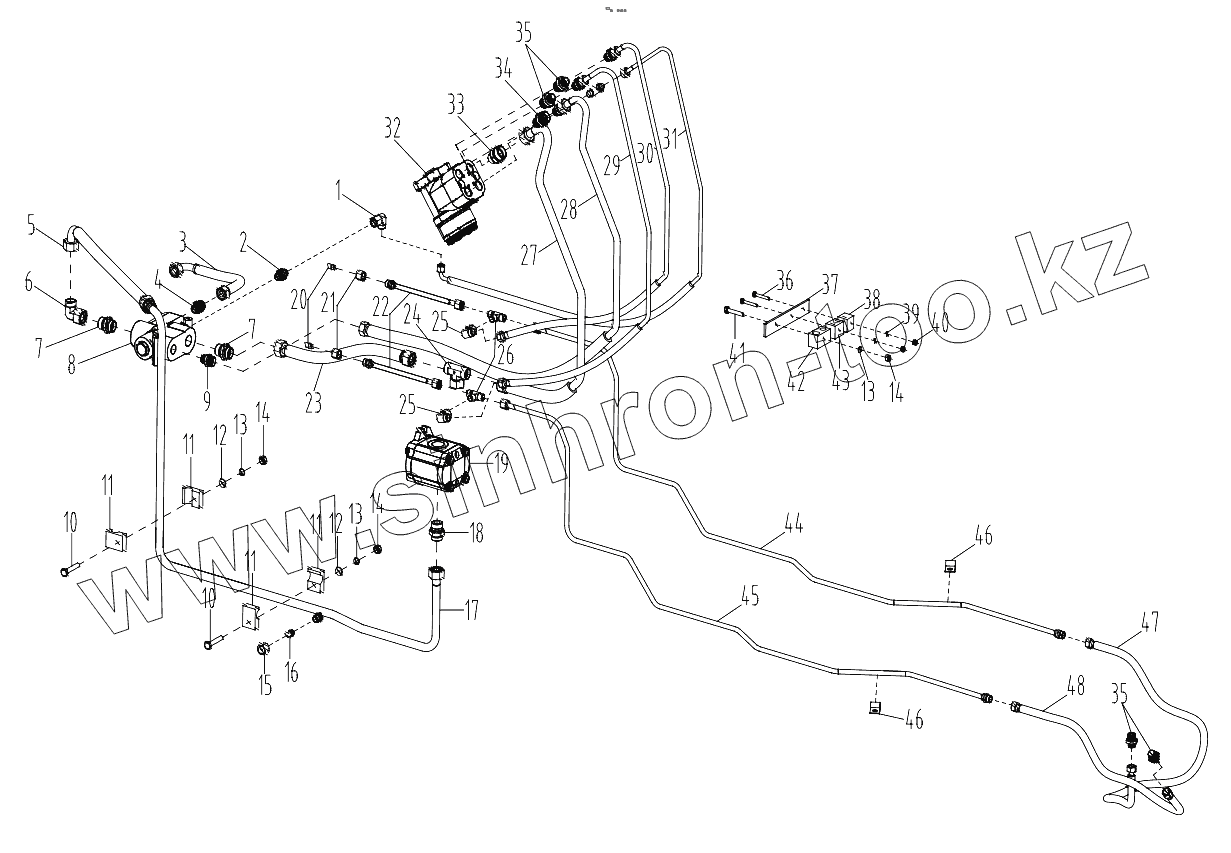

Каталог запасных частей к технике: Zoomlion PL2304. 015723058LC000000_04 Pipe layout - steering hydraulic system
1
2
3
4
5
6
7
7
8
9
10
10
11
11
11
11
12
12
13
13
13
14
14
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
35
36
37
38
39
40
41
42
43
44
45
46
46
47
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1149900352 | Fitting | |
| 2 | 1140108775 | Fitting | |
| 3 | 1011401075 | Pipe assembly | |
| 4 | 1011401066 | End straight joint D15L-PR1/4FDX | |
| 5 | 015723058LC680000 | Priority valve inlet hose assembly | |
| 6 | 015723058LC000012 | Right angle combined joint L18F | |
| 7 | 015723058LC000010 | End straight joint L18E/G3/4 | |
| 8 | 1010306956 | Priority valve | |
| 9 | 1140108805 | Fitting | |
| 10 | 1040000111 | Bolt | |
| 11 | 015723058LC000008 | Single hole nylon pipe clamp 18 | |
| 12 | 1040300066 | Washer | |
| 13 | 1040300066 | Washer | |
| 14 | 1040200192 | Nut | |
| 15 | 015723058LA040009 | Nut L08/M14x1.5 GB/T3759 | |
| 16 | 015723058LA020010 | Taper hole plug L08 | |
| 17 | 015723058LC66000 | Welding of hard oil outlet pipe of gear pump | |
| 18 | 015723058LC000011 | End straight joint L18E/ M27x2 | |
| 19 | 1010002939 | Gear pump | |
| 20 | 1149901402 | Taper hole plug | |
| 21 | 1040201562 | Nut M16x1.5 M10L | |
| 22 | 01572104205340000 | Hard pipe assembly | |
| 23 | 015723058LC700000 | Priority valve EF hose assembly | |
| 24 | 015723058LC000009 | Tee combination joint L18 | |
| 25 | 1149900353 | Fitting | |
| 26 | 1140112468 | Tee joint M16x1.5 3D10LX | |
| 27 | 015723058LC400000 | Steering gear oil return pipe assembly | |
| 28 | 015723058LC440000 | Right steering oil assembly | |
| 29 | 015723058LC420000 | Steering gear oil inlet pipe assembly | |
| 30 | 015723058LC460000 | Left steering oil assembly | |
| 31 | 015723058LC480000 | Steering gear feedback oil assembly | |
| 32 | 1019901911 | Steering gear | |
| 33 | 1140112525 | End straight joint D18L- ZM18x1.5X | |
| 34 | 1140112524 | End straight joint D15L-ZMX | |
| 35 | 1140112523 | End straight joint D10L- ZM18x1.5X | |
| 36 | 1040001229 | Bolt M6x40-8.8 GB/T5782-2000 | |
| 37 | 01572104201300010 | Cover palte | |
| 38 | 015723058LC020004 | Single hole pipe clamp | |
| 39 | 1040300062 | Washer | |
| 40 | 1040200111 | Nut | |
| 41 | 1040000199 | Bolt | |
| 42 | 015723058LC020003 | Double pipe clamp | |
| 43 | 015723058LC020002 | Double pipe clamp | |
| 44 | 015723090LB060000 | Hard pipe assemble | |
| 45 | 015723090LB080000 | Hard pipe assemble | |
| 46 | 015723058LC020014 | Pipe clamp | |
| 47 | 1140242932 | Hose assembly | |
| 48 | 1140256214 | Hose assembly KG2SD5D5101005-660RS |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
