Каталог запасных частей к технике: Zoomlion PL2304. 015723048LB000000 Cab electrical component assembly

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
31
32
33
34
35
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56

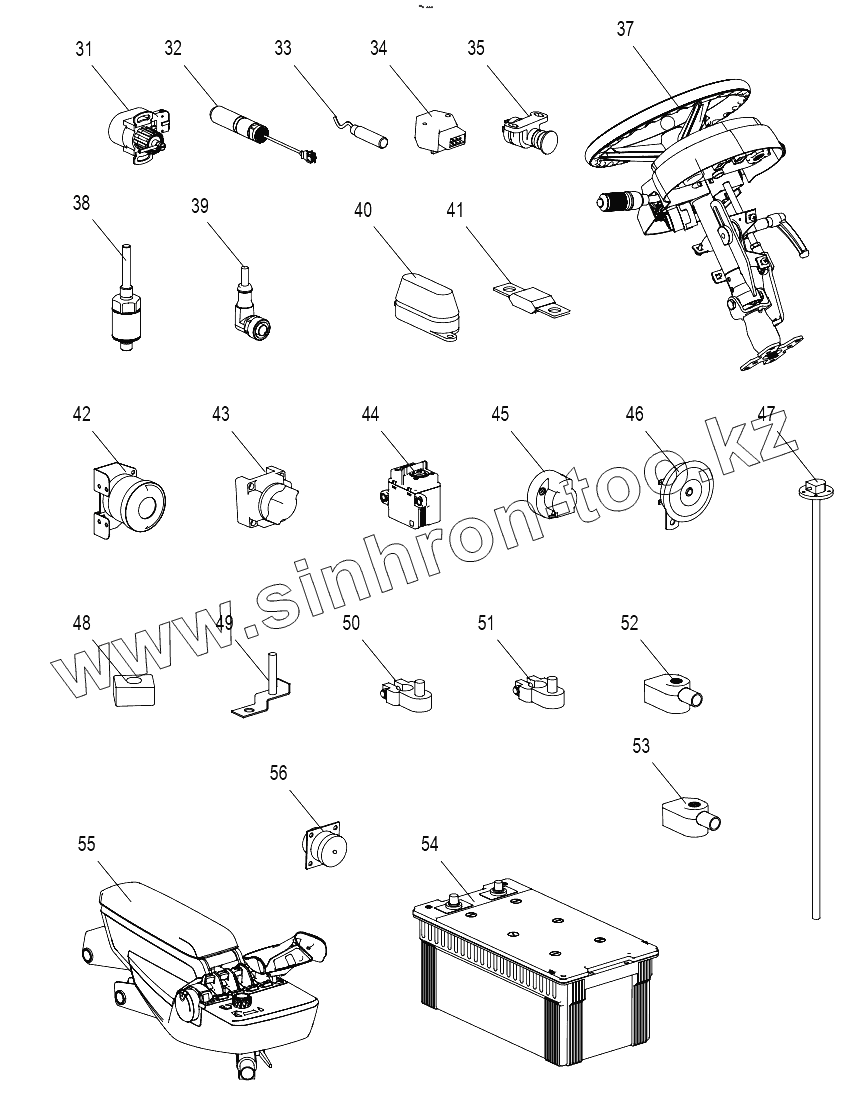

Позиция на иллюстрации Заводской номер детали Название детали
1 1020404838 Combination light
2 1020404839 Combination light
3 1020404530 Work light
4 1020404840 Interior light
5 1020404534 License plate light
6 1020404537 Beacon
7 1020401036 Lamp seat
8 1020404841 High beam
9 1020404837 Low beam
10 1020404825 Work light
11 1020404579 Charging indicator
12 1020520376 PTO button
13 1029905969 Lower button
14 1029905968 Hitch button
15 1020404531 Left rear light
16 1020404532 Left rear light
17 1020404529 Rear light bulb
18 1020404535 Rear light bulb
19 1029904825 Reflecting plate
20 1020520907 Door control switch
21 1020605393 Fuse box
22 1029905862 Vehicle loudhailer
23 1020201777 Radio
24 1020103737 Hitch controller
25 1029905831 Keypad
26 1020103903 Vehicle controller
27 1029905863 Display
28 1029904772 Display bracket
29 1029905859 Pedal throttle
30 1020701956 Camer
31 1021403207 Hitch angle sensor
32 1021403206 Hitch draft sensor
33 1021403215 Proximity switch
34 1021403216 Angle sensor
35 1020520352 Travel switch
36 1020704229 Travel switch connector
37 1020810605 Steering column assembly
38 1021402015 Hydraulic oil temperature sensor
39 1029902662 Elbow connector
40 1020603140 Preheat fuse seat
41 1020605025 Preheat fuse
42 1020403041 Reverse horn
43 1020520252 Main switch
44 1020305241 Preheat relay
45 1020704179 7-core socket for trailers
46 1029904826 Horn
47 1021404496 Fuel position sensor
48 1020402442 Battery fuse
49 1029904647 Fuse installation seat
50 1020700936 Battery clamp
51 1020700937 Battery clamp
52 1020600086 Positive pole of battery terminal
53 1020600087 Negative pole of battery terminal
54 1020999014 Battery
55 1029905833 Armrest
56 1029904833 3-core power outlet
57 1029904897 Shift handle
58 1029905861 Radio antenna
59 1020704168 Hitch valve connector
60 1020704169 Hitch sensor connector
61 1020704171 ACV connector
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
