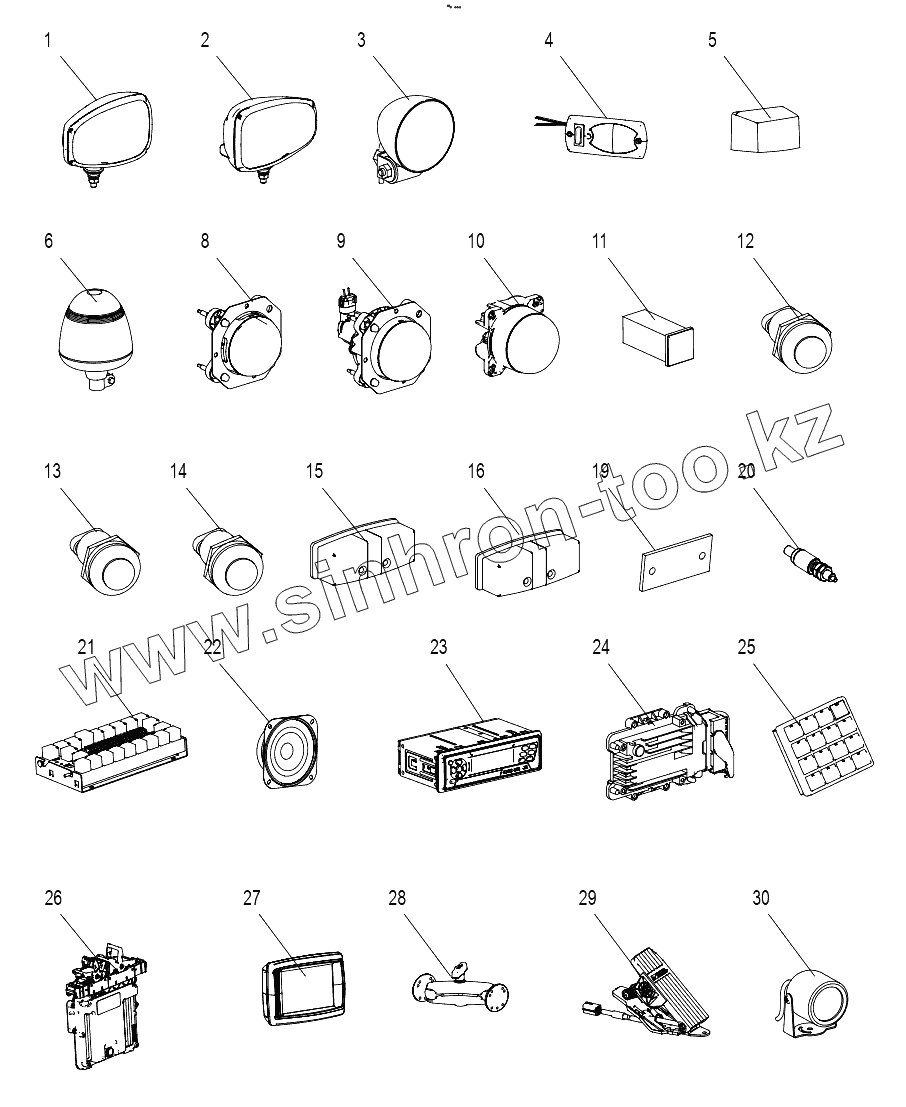

Каталог запасных частей к технике: Zoomlion PL2304. 015723048LB000000 Cab electrical component assembly
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
19
20
21
22
23
24
25
26
27
28
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1020404838 | Combination light | |
| 2 | 1020404839 | Combination light | |
| 3 | 1020404530 | Work light | |
| 4 | 1020404840 | Interior light | |
| 5 | 1020404534 | License plate light | |
| 6 | 1020404537 | Beacon | |
| 7 | 1020401036 | Lamp seat | |
| 8 | 1020404841 | High beam | |
| 9 | 1020404837 | Low beam | |
| 10 | 1020404825 | Work light | |
| 11 | 1020404579 | Charging indicator | |
| 12 | 1020520376 | PTO button | |
| 13 | 1029905969 | Lower button | |
| 14 | 1029905968 | Hitch button | |
| 15 | 1020404531 | Left rear light | |
| 16 | 1020404532 | Left rear light | |
| 17 | 1020404529 | Rear light bulb | |
| 18 | 1020404535 | Rear light bulb | |
| 19 | 1029904825 | Reflecting plate | |
| 20 | 1020520907 | Door control switch | |
| 21 | 1020605393 | Fuse box | |
| 22 | 1029905862 | Vehicle loudhailer | |
| 23 | 1020201777 | Radio | |
| 24 | 1020103737 | Hitch controller | |
| 25 | 1029905831 | Keypad | |
| 26 | 1020103903 | Vehicle controller | |
| 27 | 1029905863 | Display | |
| 28 | 1029904772 | Display bracket | |
| 29 | 1029905859 | Pedal throttle | |
| 30 | 1020701956 | Camer | |
| 31 | 1021403207 | Hitch angle sensor | |
| 32 | 1021403206 | Hitch draft sensor | |
| 33 | 1021403215 | Proximity switch | |
| 34 | 1021403216 | Angle sensor | |
| 35 | 1020520352 | Travel switch | |
| 36 | 1020704229 | Travel switch connector | |
| 37 | 1020810605 | Steering column assembly | |
| 38 | 1021402015 | Hydraulic oil temperature sensor | |
| 39 | 1029902662 | Elbow connector | |
| 40 | 1020603140 | Preheat fuse seat | |
| 41 | 1020605025 | Preheat fuse | |
| 42 | 1020403041 | Reverse horn | |
| 43 | 1020520252 | Main switch | |
| 44 | 1020305241 | Preheat relay | |
| 45 | 1020704179 | 7-core socket for trailers | |
| 46 | 1029904826 | Horn | |
| 47 | 1021404496 | Fuel position sensor | |
| 48 | 1020402442 | Battery fuse | |
| 49 | 1029904647 | Fuse installation seat | |
| 50 | 1020700936 | Battery clamp | |
| 51 | 1020700937 | Battery clamp | |
| 52 | 1020600086 | Positive pole of battery terminal | |
| 53 | 1020600087 | Negative pole of battery terminal | |
| 54 | 1020999014 | Battery | |
| 55 | 1029905833 | Armrest | |
| 56 | 1029904833 | 3-core power outlet | |
| 57 | 1029904897 | Shift handle | |
| 58 | 1029905861 | Radio antenna | |
| 59 | 1020704168 | Hitch valve connector | |
| 60 | 1020704169 | Hitch sensor connector | |
| 61 | 1020704171 | ACV connector |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
