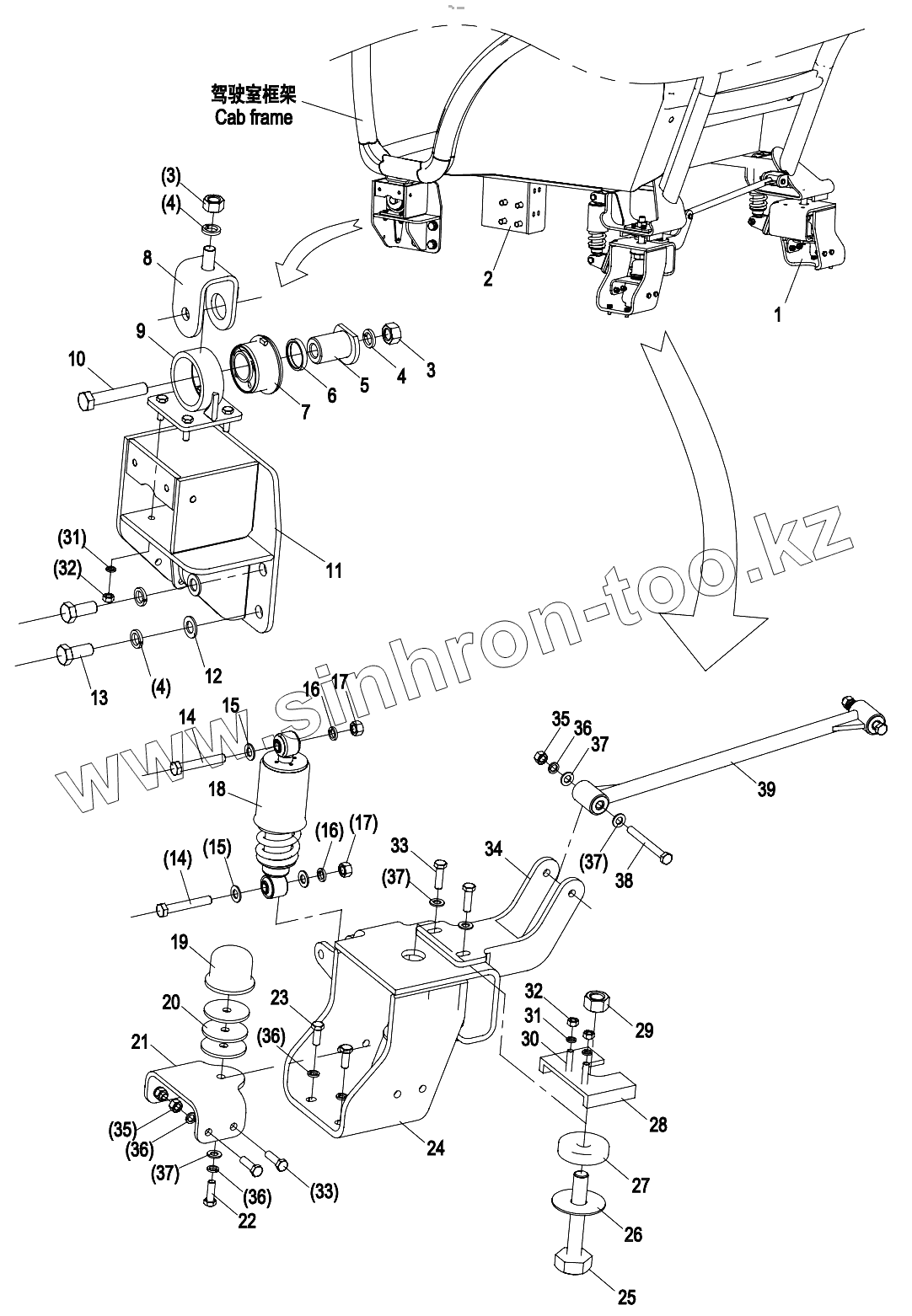

Каталог запасных частей к технике: Zoomlion PL2304. 01572104900000001 Cab assembly
1
2
3
3
4
4
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
32
33
33
34
35
35
36
36
36
36
37
37
37
37
38
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 01572104900600001 | Right rear bracket | |
| 2 | 01572104900400001 | Right front bracket | |
| 3 | 1040200184 | Nut | |
| 4 | 1040300038 | Washer | |
| 5 | 01572104900000060 | Pin | |
| 6 | 01572104900000050 | Baffle ring | |
| 7 | 1990300329 | Front suspension bush | |
| 8 | 01572104900200000 | Front up bracket | |
| 9 | 01572104900300000 | Damper bracket | |
| 10 | 1040000531 | Bolt M20x110-10.9 | |
| 11 | 01572104900100001 | Bracket | |
| 12 | 1040300106 | Washer | |
| 13 | 1040003909 | Bolt M20x2x45-10.9 | |
| 14 | 1040000870 | Bolt M14x90-10.9 | |
| 15 | 1040300055 | Washer | |
| 16 | 1040300068 | Washer | |
| 17 | 1040200278 | Nut M14-10 | |
| 18 | 1031900161 | Damper | |
| 19 | 1031900162 | Impact damper | |
| 20 | 01572104900000010 | Trim | |
| 21 | 01572104900000090 | Location-limited plate installing plate | |
| 22 | 1040000575 | Bolt | |
| 23 | 1040000490 | Болт M12x30-10.9 | |
| 24 | 01572104900500001 | Left rear bracket | |
| 25 | 01572104900000071 | Bolt | |
| 26 | 01572104900000100 | Baffle ring | |
| 27 | 01572104900000080 | Cushion | |
| 28 | 01572104900000110 | Downward locationlimited plate | |
| 29 | 1040200361 | Nut M24-10 | |
| 30 | 1040002140 | Bolt M10x40 | |
| 31 | 1040300067 | Washer | |
| 32 | 1040200113 | Nut | |
| 33 | 1040000573 | Bolt | |
| 34 | 01572104900000030 | Bracket | |
| 35 | 1040200325 | Nut M12-10 | |
| 36 | 1040300054 | Washer | |
| 37 | 1040300041 | Washer | |
| 38 | 1040000421 | Bolt M12x110-10.9 | |
| 39 | 1990300328 | Stabilizer bar assembly |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
