Каталог запасных частей к технике: Zoomlion PL2304. 01572100600500001 Rear fenders assembly
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
18
18
18
19
20
21
21
22
23
24
25
25
25
25
26
26
27
27
27
27
27
28
29
29
29
29
29
30
30
30
30
30
30
30

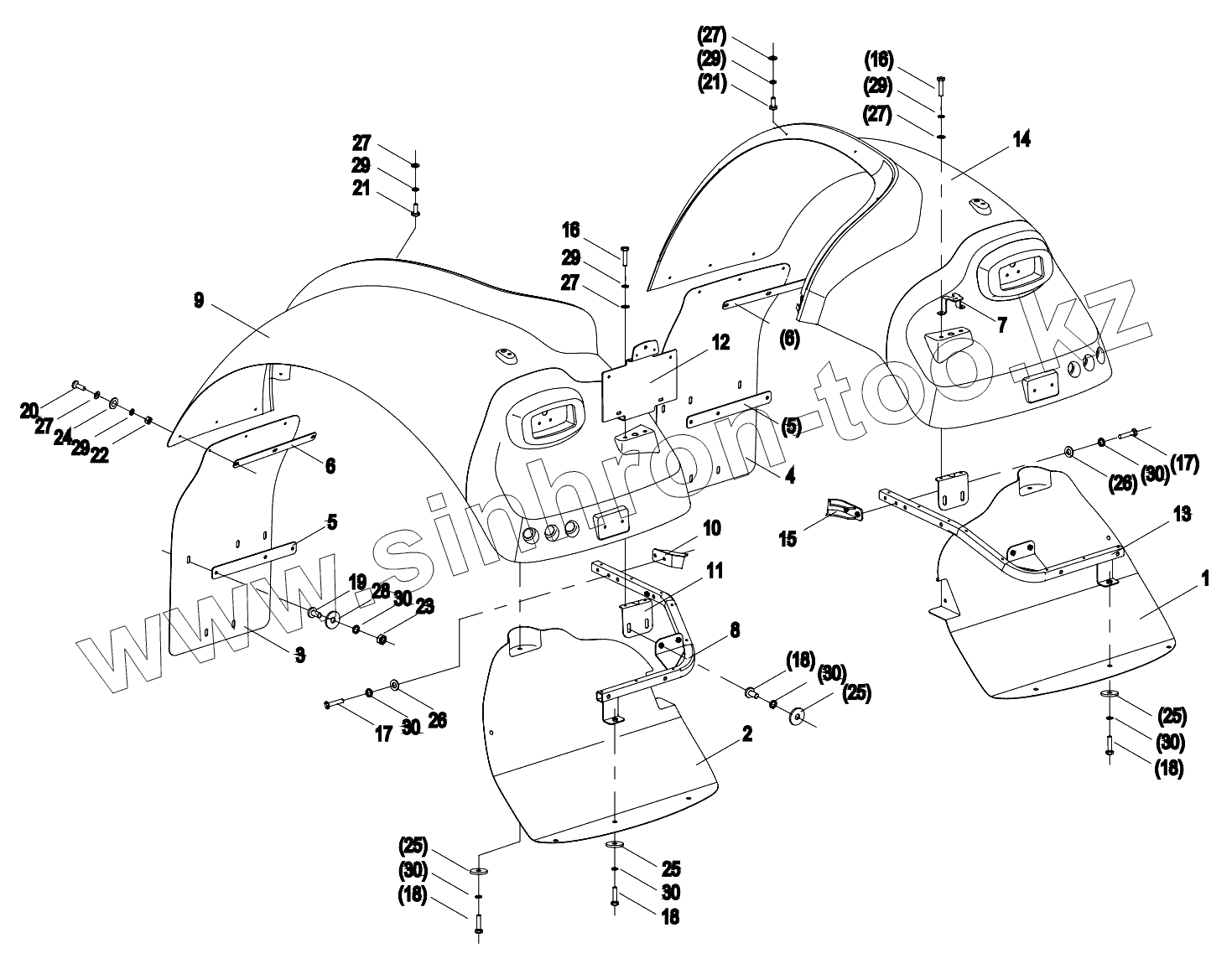

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 01572100600500011 | Right rear Closure plate | |
| 2 | 01572100600500021 | Left rear Closure plate | |
| 3 | 01572100600500031 | Left rear fender leather | |
| 4 | 01572100600500040 | Right rear fender leather | |
| 5 | 01572100600500051 | Mounting plate | |
| 6 | 01572100600500071 | Mounting plate | |
| 7 | 01572100600500160 | Camera bracket | |
| 8 | 01572100600510001 | Bracket welding,Rear,LH | |
| 9 | 01572100600520001 | Fender welding ,Rear,LH | |
| 10 | 01572100600530001 | Holder,Rear,LH | |
| 11 | 01572100600540001 | Plate welding | |
| 12 | 01572100600550001 | License plate mounting bracket | |
| 13 | 01572100600560001 | Bracket welded assembly,Rear,RH | |
| 14 | 01572100600570001 | Fender welding assembly,Rear,RH | |
| 15 | 01572100600580001 | Holder,Rear,RH | |
| 16 | 1040000076 | Bolt | |
| 17 | 1040000199 | Bolt | |
| 18 | 1040001555 | Bolt | |
| 19 | 1040100616 | Screw M8x16-8.8 GB/T818-2000 | |
| 20 | 1040101212 | Screw | |
| 21 | 1040102019 | Bolt M6x15-8.8 | |
| 22 | 1040200111 | Nut | |
| 23 | 1040200192 | Nut | |
| 24 | 1040300093 | Washer 6-140HV | |
| 25 | 1040300094 | Washer | |
| 26 | 1040300230 | Washer | |
| 27 | 1040300561 | Шайба 6 | |
| 28 | 1040300572 | Шайба 8-200HV | |
| 29 | 1040301509 | Washer | |
| 30 | 1040301510 | Washer |
