5. Swivel table 001621206A1000000

Каталог запасных частей к технике: Zoomlion K56X-6RZ. Swivel table 001621206A1000000

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано 33X-4Z 47X-5RZ K56X-6RZ PL2304 (2021) QUY260CR-32Y QY55V53232Z RN (90-110 л.с.) RS (2021) RT-100 (2013) RT-35 (2013) RT-55 (2013) RT-551 (4x4) (2013) RT-75 (2013) ZCC1100H (2014) ZD160T(S,SH, CS)-3 (2012) ZE205E (2013) ZLJ5480JQZV3 (2013) ZLJ5500V3 (2013) ZLJ5550JQZV3.2 (2016) ZT20J (2019) ZT68J (2019)

Схема > Не выбрано Boom assembly 001621206A0000000 Swivel table 001621206A1000000 1st boom section 001621206A0100000 2nd boom section 001621206A0200000 3rd boom section 001621206A0300000 4th boom section 001621206D0400000 5th boom section 001621206D0500000 6th boom section 001621206B0600000 Swivel assembly 001618205B0000000 Reductor 1030200160 Base structure and outriggers assembly 001621203B0000000 Front right outrigger 001619003A0300000 Front left outrigger 001619003A0200000 Base structure 001619003B0100000 Rear left outrigger 001621203A0400000 Support bracket of 2nd boom 001618203B0800000 Boom cylinder assembly 001621207A0000000 Cylinder of 1st section 001621207A0100000 2nd boom cylinder 001621207A0200000 Cylinder of 3rd section 001621207A0300000 Cylinder of 4th section 001621207A0400000 Cylinder of 5th section 001621207A0500000 6th boom cylinder 001621207A0600000 Outrigger cylinder ASSY 001619004A0000000 Rear outrigger swing cylinder 001607204A0200000 Rear outrigger cylinder (V) 001607204A0300000 Left major pole cylinder (H) 001619004B0800000 Right major pole cylinder (H) 001619004B1000000 Minor pole cylinder (H) 001619004A0700000 Front outrigger cylinder (V) 001613904A0300000 Pumping unit 001619101A0000000 Hopper assembly 001690104E0000000 Mixing mechanism 001690404A0000000 Distribution valve assembly 001690207A0000000 Distribution valve assembly 001690207A0000000 Distribution valve assembly 001690207A0000000 S-pipe valve 001690207A0100000 Left swing cylinder 000190201A0200000 Right swing cylinder 000190201A0300000 Pumping mechanism 001690304F0000000 Concrete piston 001696902A0000000 Pumping cylinder assembly 001696108C0000000 Cylinder unit 001696104C1000000 Pumping cylinder 001696104C1100000 Boom pipe assembly 001621206D1100000 Undercarriage concrete pipe assembly 001621202A0200000 Chassis refit 001621253C0000000 Drive shaft A 001619153B0010000 Drive shaft Р’ 001619153B0020000 Pneumatic mechanism 001608253A0800000 PTO assembly 001613253A0010000 P.T.O 1030200189 Drive shaft Р’ 001613753A0020000 Frame protective device assembly 001621202C0000000 Secondary frame assembly 001621202C0100000 Walk platform and attachment 001621202B0400000 Boom support assembly 001621202A0500000 Toolbox assembly 001620402A0600000 Support plate 001620402A0700000 Hydraulic schematic of pumping system 001621217A0000000 Oil suction filter 1010600435 Solenoid reversal valve 1010300566 Oil suction filter 1010600443 Oil return filter 1010600052 Solenoid reversal valve 1010300527 Mixing motor 1010100059 Accumulator 1010800017 Solenoid reversal valve 1010300526 Solenoid reversal valve 1010300555 Cooler 1010400029 Accumulator 1010800027 Water suction filter 1060200000 Solenoid reversal valve 1010300705 Pumping circuit piping layout 001619118A0400000 Pumping cylinder unit 001619118A0402000 Multichannel of piston side (R) 001600003A0000488 Multichannel block of rod side (R) 001600003A0000484 Multichannel of rod side (L) 001600003A0000483 Multichannel of piston side (L) 001600003A0000486 High-low pressure control valve block 001607518A0002000 High-low pressure switch valve block 001619118A0403000 Controller valve unit 001613918A0005000 Oil filling valve block 001616018A0206000 Vents layout on oil tank 001619118A0105000 Controller valve unit (EC) 001607518A0003000 Return multichannel 001620518A0003000 Temperature control valve lock 001618218A0003000 Accumulator assembly (small) 001619118A0104000 Cooler assy 001620518A0004000 Groups of double pumps with output 180 001616318A0002000 Cooler multichannel 001620518A0002000 Distribution circuit piping layout 001619119A0100000 Distributing valve block 001620419A0001000 Accumulator assembly (big) 001609619A0202000 Swing cylinder assy 001609619A0201000 Pipelaying of rabbling and cleaning circuit 001619120A0100000 Mixing motor assy 001704120A0200000 Rabbling and cleaning valve block 001607220A0010000 Hydraulic schematic of base structure 001620458A0000000 Pipelaying of base structure circuit 001619157A0100000 Pipelaying of base structure 001619157A0101000 Pipelaying of front left outrigger 001619157A0102000 Pipelaying of front right outrigger 001619157A0103000 Pipelaying of rear left outrigger 001619157A0104000 Pipelaying of rear right outrigger 001619157A0105000 Telescopic cylinder pipelaying 001619057A0006000 Telescopic cylinder pipelaying 001619057A0007000 Hydraulic schematic of boom 001619150A0000000 Bent axis axial piston pump 1010000089 Compressed oil filter 1010600436 Multi-valve (8 times) 001611250A0010000 Reversal multi-channel valve 1010301627 Multi-valve blade 1010302605 Final block 1010300584 Oil suction filter 1010600435 Air filter 1010500092 Pipelaying of boom circuit 001621249A0000000 Slewing control valve assembly 001619549A0000100 Slewing reducer hydraulic assembly 001619549A0000200 Pump of placing boom assembly 001619549A0000400 Hydraulic oil filter assembly 001619549A0000500 Multi-valve of placing boom assembly 001619049A0000600 Pipelaying of 1st section 001621249A0001000 Pipelaying of 2nd section 001621249A0002000 Pipelaying of 3rd section 001621249A0003000 Pipelaying of 4th section 001621249A0004000 Pipelaying of 5th section 001621249A0005000 1st boom cylinder piping 001621249A0006000 2nd boom cylinder piping 001621249A0007000 3rd boom cylinder piping 001621249A0008000 4th boom cylinder piping 001621249A0009000 5th boom cylinder piping 001621249A0010000 6th boom cylinder piping 001621249A0011000 Cleaning system 001692505A0000000 Lubrication system 001692406A0000000 Mesh filter 1010600044 X0 main control cabinet power wiring harness 001619127300A3A21 X1 cab signal main branch harness 001619127300A3A31 X2 main branch of outrigger box wiring harness 001619127300A3A41 Branch of outrigger box wiring harness 001619127300A3A42 X3 main branch of multi-valve wiring harness 001619127300A3A51 X4 main branch of turing flat wiring harness 001619127300A3A61 Branch of caution light 001619127300A3A62 X5 cabinet harness main branch 001619127300A3A71 X6 pumping valves harness main branch 001619127300A3A8 X7 main branch of hooper wiring harness 001619127300A3A91 X9 wiring harness of remote device and GPS 001619127300A3AB1 Boom height light wiring harness 001619127300A3AC1 Boom horn wiring harness 001619127300A3AC2 Outrigger box & integrated box 001621227300A1AT2 Coders and sensors 001621227300A1AT3 Proximity switch 001621227300A1AT4 Limit switch 001621227300A1AT5 Valve block assembly 001621227300A1AT6 Lights and horns of truck concreted pump 001621227300A1AT7 Main control cabinet 001621227300A1AT8 Tail cabinet 001621227300A1AT9 Electricity of driving cab 0016BEN1029200135 Remote control device 0016RMD1020201109 GPS 0016GPS1029900081

1

2

3

4

5

6

7

8

9

10

11

12

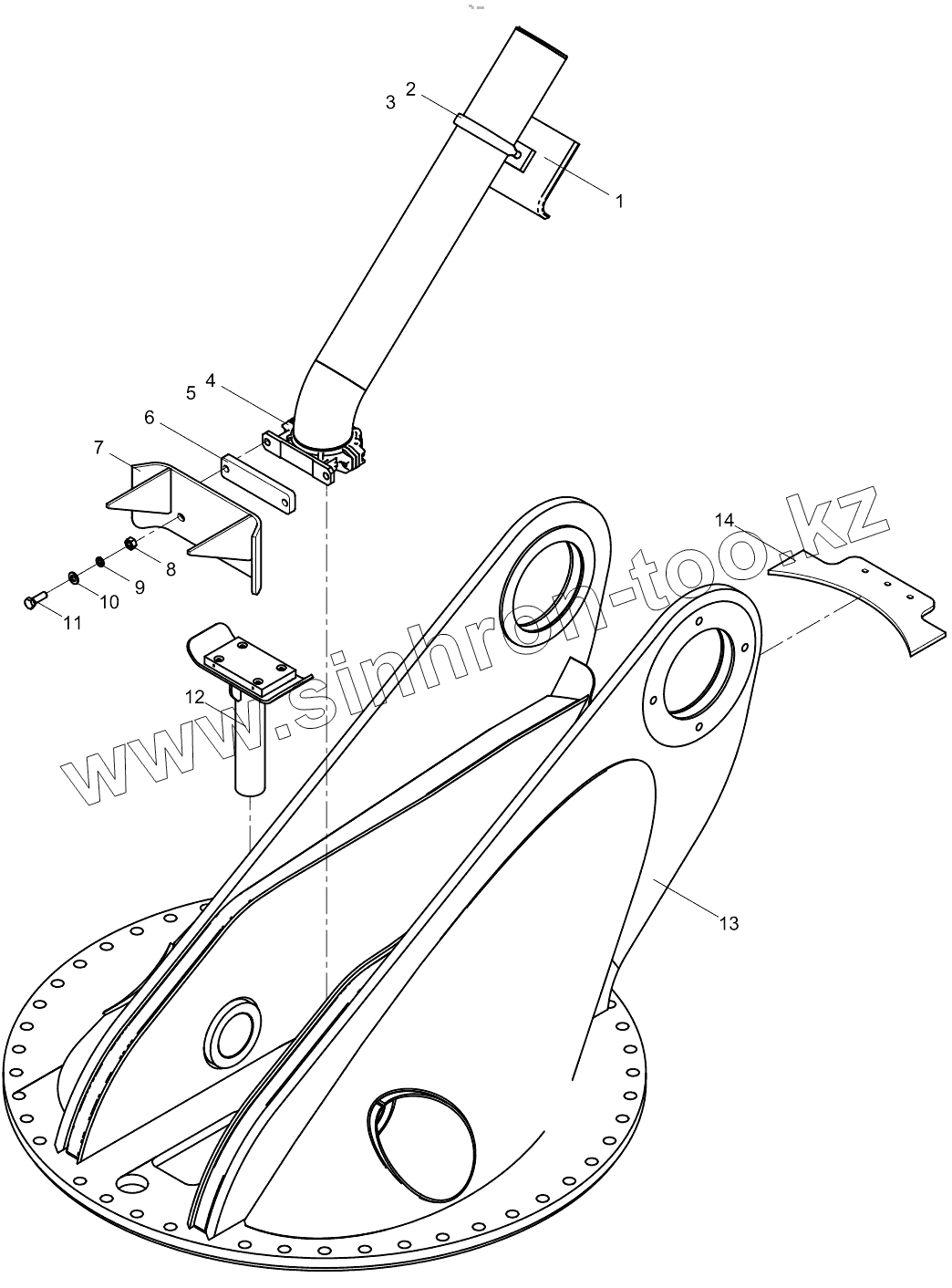

Позиция на иллюстрации	Заводской номер детали		Название детали
1	001621206A1000001		Top support connection board
2	001605106A0101101		Connection pedestal
3	001605106A0101110		U bolt unit D
4	001693301A0006000		Pipe clamp
5	001607203A0100005		Pipe clamp mounting
6	001621206A1002000		Lower support weldment
7	1040200110		Nut
8	1040300052		Washer
9	1040300065		Washer
10	1040000209		Bolt
11	001621206B0002000		4th boom support
12	001621206A1001000		Swivel table structure
