Reversal multi-channel valve 1010301627

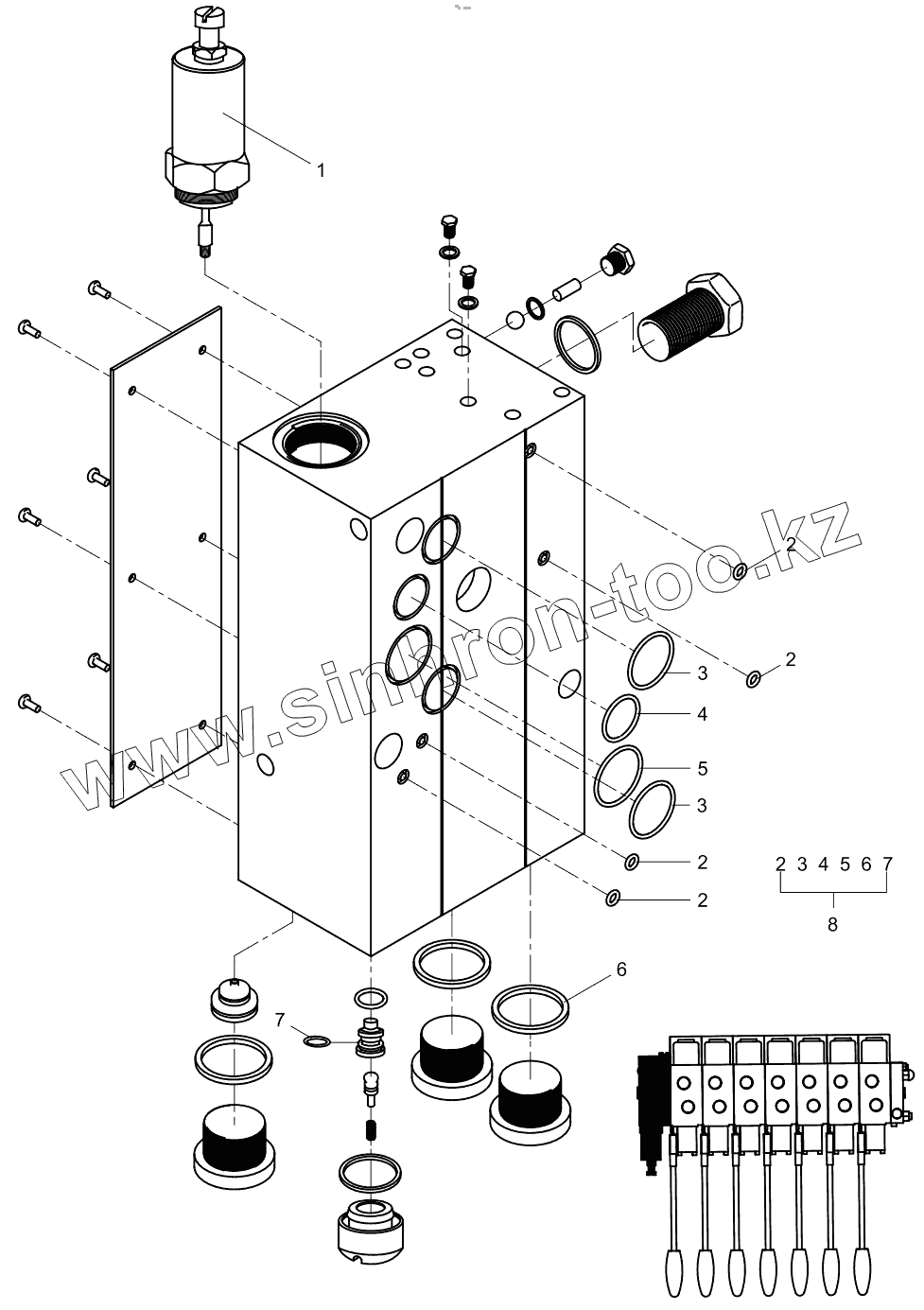

Каталог запасных частей к технике: Zoomlion K56X-6RZ. Reversal multi-channel valve 1010301627
