  5. Pumping circuit piping layout 001619118A0400000

Каталог запасных частей к технике: Zoomlion K56X-6RZ. Pumping circuit piping layout 001619118A0400000

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
15
15
16
17
19
20
21
22
23
24
25
26
27
28

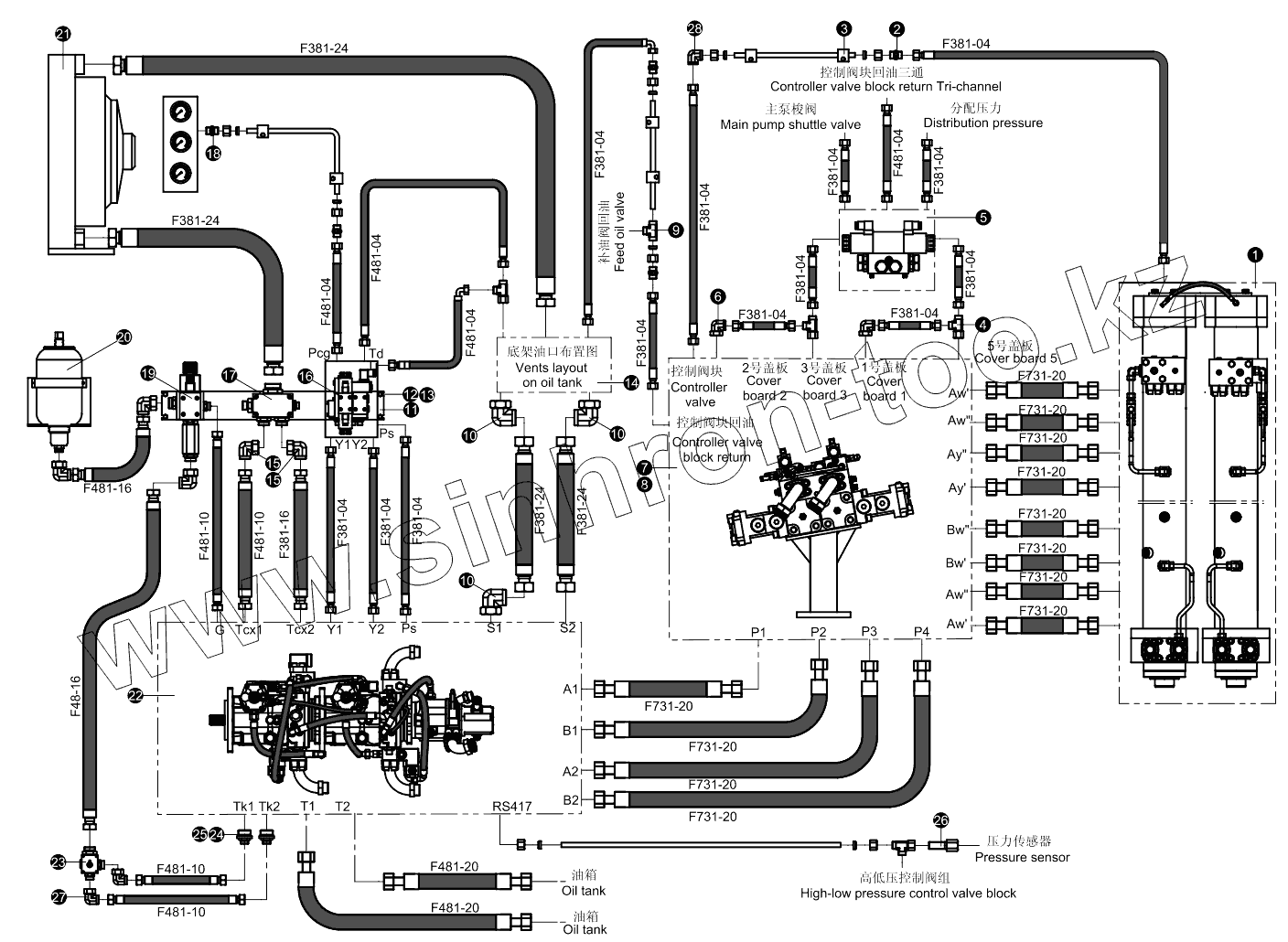

Позиция на иллюстрации Заводской номер детали Название детали
1 001619118А0402000 Pumping cylinder unit
2 1140101427 Straight joint
3 1990200289 Pipe clamp
4 1140101487 Combined T-joint
5 001607518А0002000 High-low pressure control valve block
6 1140101476 Right angle built-up joint
7 001620418А0006000 Mounting bracket of main valve block
8 001619118А0403000 High-low pressure switch valve block
9 1140101513 T-joint
10 1140101480 Elbow joint
11 001618218А0000001 Mounting plate of minor valve block
12 1040000288 Bolt
13 1040300063 Washer
14 001619118А0105000 Vents layout on oil tank
15 1140101737 Right angle built-up joint
16 001607518А0003000 Controller valve unit
17 001620518А0003000 Return multichannel
18 000198930А0200002 Straight joint
19 001618218А0003000 Temperature control valve lock
20 001619118А0104000 Accumulator assembly
21 001620518А0004000 Cooler ASSY.
22 001616318А0002000 Groups of double pumps with output 180
23 001620518А0002000 Cooler multichannel
24 000198930А0100052 Straight joint
25 1081000488 Rhombus seal
26 000198930А0300001 Neighbor joint
27 1140101479 Elbow joint
28 1140101511 Elbow joint
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
