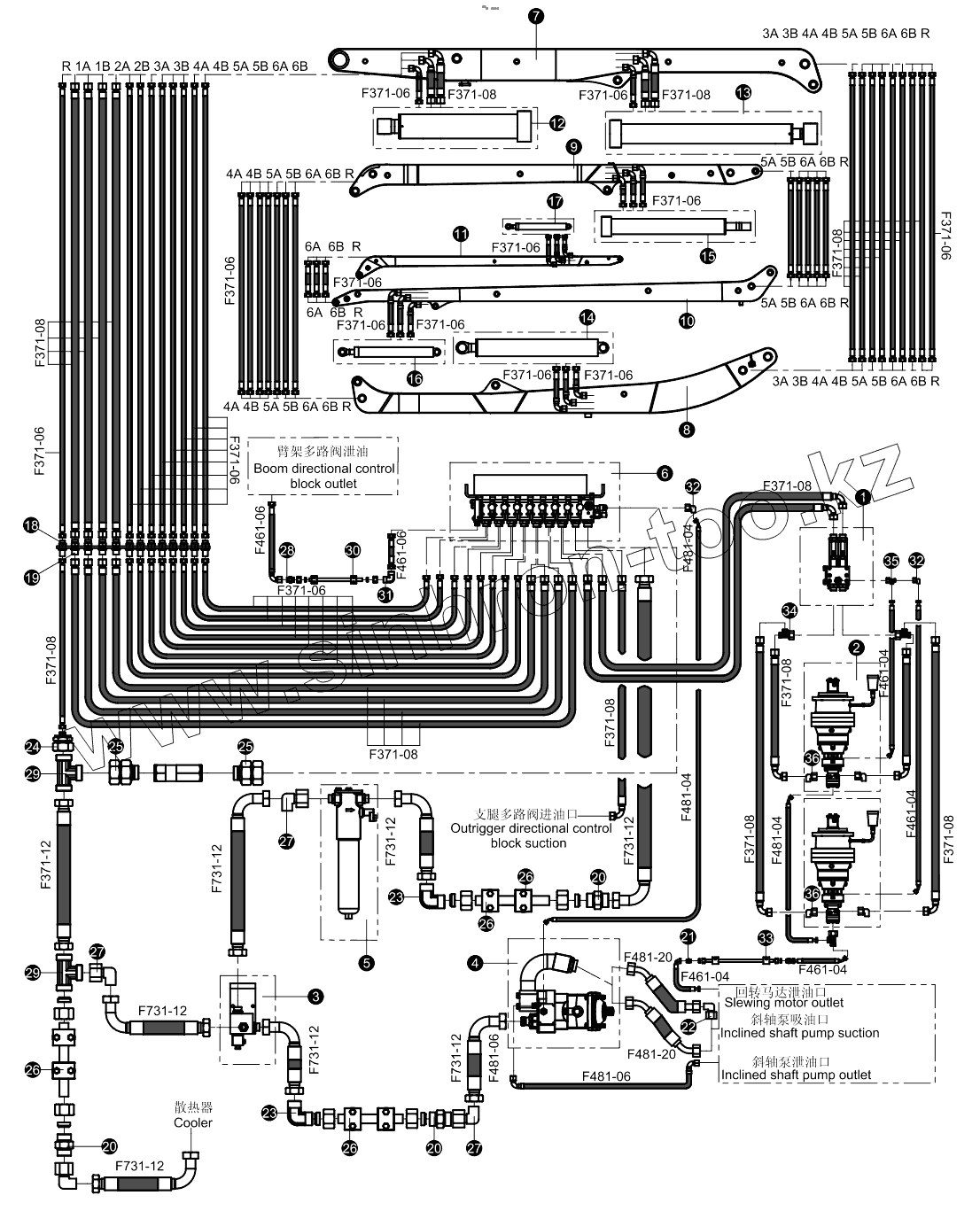

  5. Pipelaying of boom circuit 001621249A0000000

Каталог запасных частей к технике: Zoomlion K56X-6RZ. Pipelaying of boom circuit 001621249A0000000

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
21
22
23
23
24
25
25
26
26
26
26
27
27
27
28
29
29
30
31
32
32
33
34
35
36
36
Позиция на иллюстрации Заводской номер детали Название детали
1 001619549А0000100 Slewing control valve assembly
2 001619549А0000200 Slewing reducer hydraulic assembly
3 001619549А0000400 Pump of placing boom assembly
4 001619549А0000500 Hydraulic oil filter assembly
5 001619049А0000600 Multi-valve of placing boom assembly
6 001621249А0001000 Pipelaying of 1st section
7 001621249А0002000 Pipelaying of 2nd section
8 001621249А0003000 Pipelaying of 3rd section
9 001621249А0004000 Pipelaying of 4th section
10 001621249А0005000 Pipelaying of 5th section
11 001621249А0006000 1st boom cylinder piping
12 001621249А0007000 2nd boom cylinder piping
13 001621249А0008000 3rd boom cylinder piping
14 001621249А0009000 4th boom cylinder piping
15 001621249А0010000 5th boom cylinder piping
16 001621249А0011000 6th boom cylinder piping
17 1140101517 Straight clapboard joint
18 1140101441 Straight clapboard joint
19 1140101508 Straight joint
20 1140101427 Straight joint
21 1140101704 Elbow joint
22 1140101512 Elbow joint
23 1140101515 Radius accomodating Joint
24 1140101532 Straight combined joint
25 1990200284 Pipe clamp
26 1140101534 Right angle built-up joint
27 1140101425 Straight joint
28 1140101514 T-joint
29 1990200052 Pipe clamp
30 1140101510 Elbow joint
31 1140101476 Right angle built-up joint
32 1990200289 Pipe clamp
33 1140101746 Combined T-joint
34 1140101487 Combined T-joint
35 1140101632 Elbow joint
36 001609906А1000002 Hose joint board
