Front left outrigger 001619003A0200000

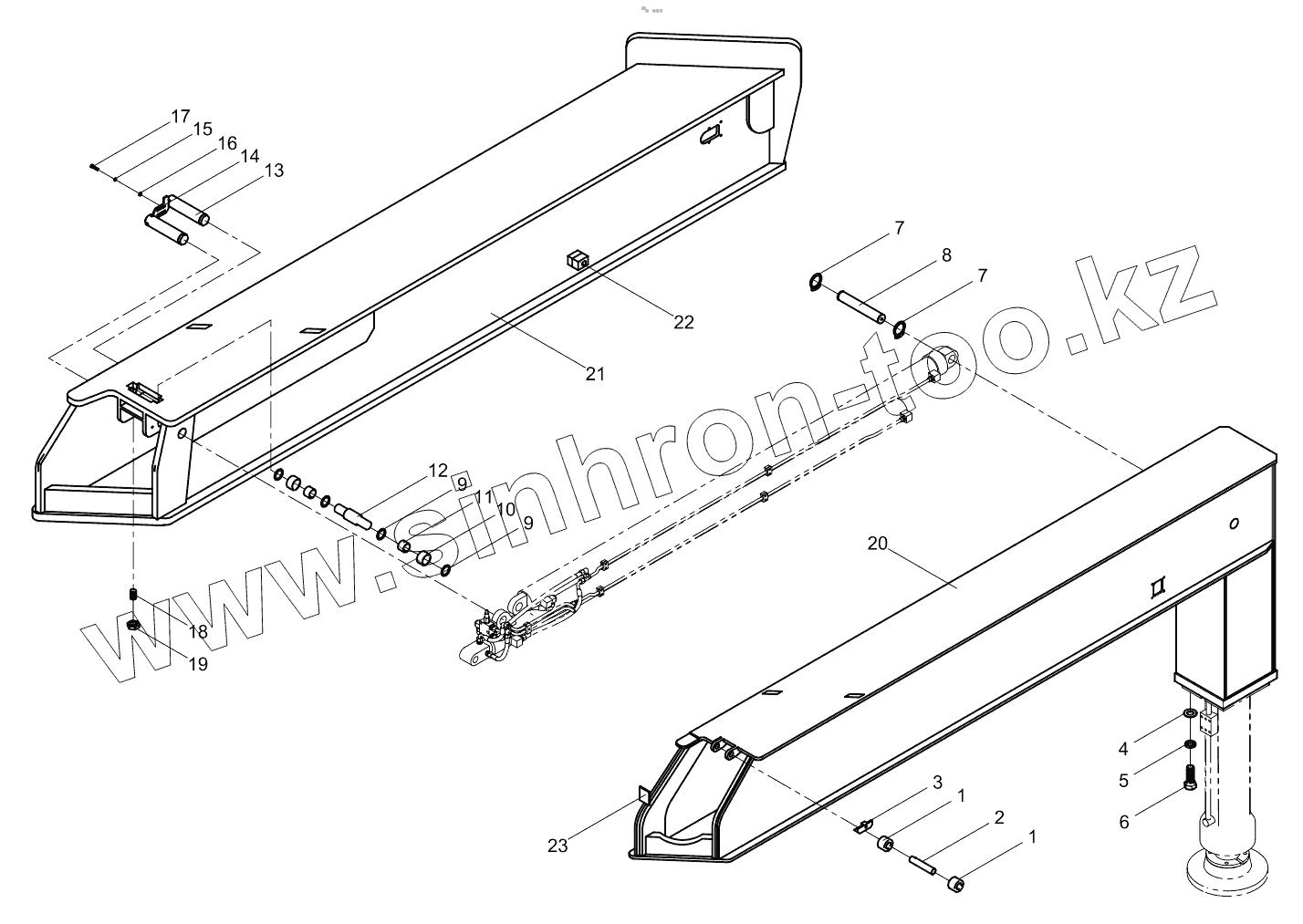

Каталог запасных частей к технике: Zoomlion K56X-6RZ. Front left outrigger 001619003A0200000
