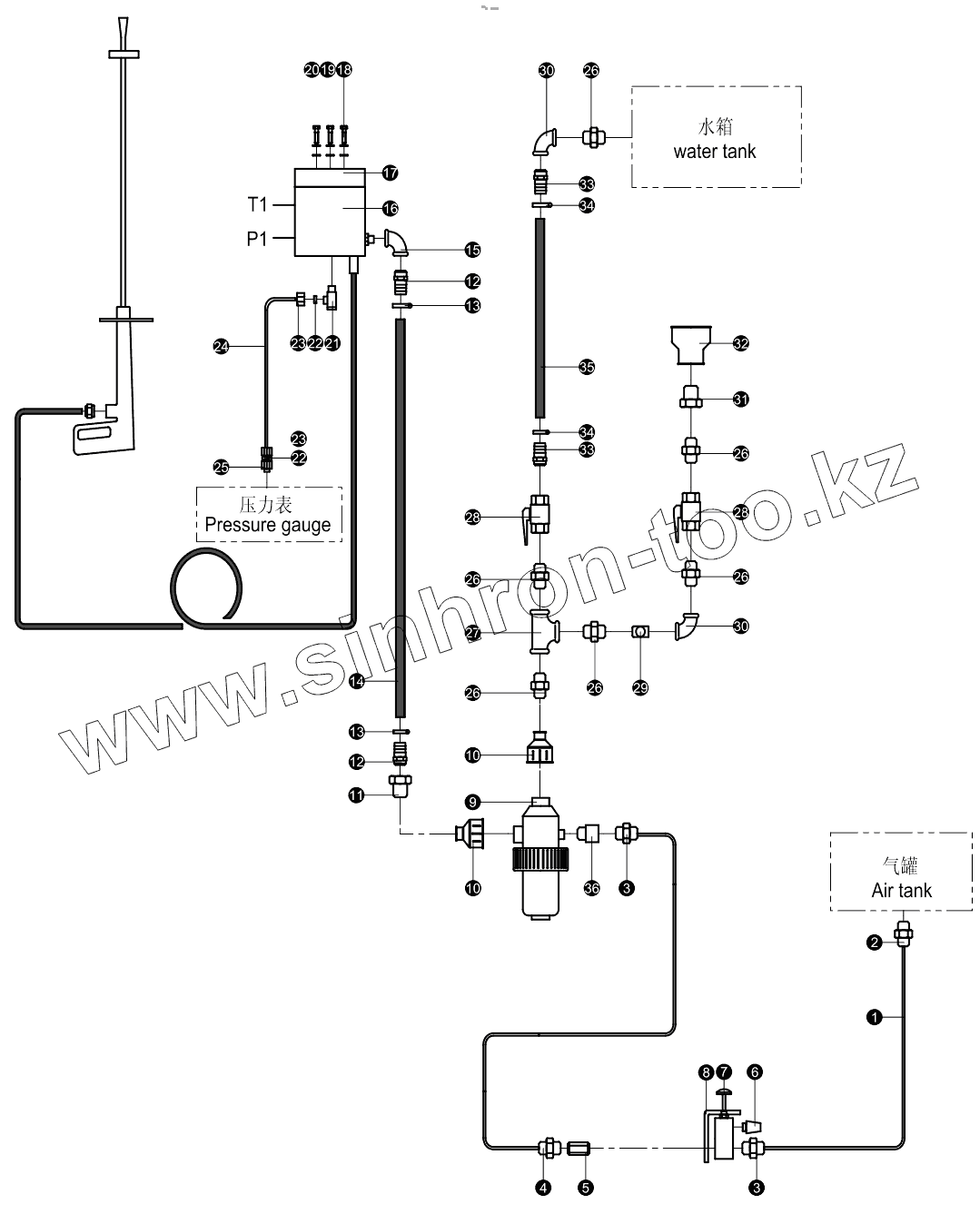

Каталог запасных частей к технике: Zoomlion K56X-6RZ. Cleaning system 001692505A0000000

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
5
6
7
8
9
10
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
26
26
26
26
26
27
28
28
29
30
30
31
32
33
33
34
34
35
36
Позиция на иллюстрации Заводской номер детали Название детали
1 001692506А0000001 Plastic air pipe
2 1140101502 L quick joint
3 1140102321 Quick joint
4 1140101500 Quick joint
5 1010300532 Check valve
6 1000200005 Muffler
7 1070500151 Manual valve
8 001611525А0100002 Mounting plate
9 1010600243 Filter
10 1060300044 Differential femail joint
11 1140102044 Screw
12 001611525А0100003 Hose joint
13 1990200360 Clamp
14 001611525А0200002 Canvas hose
15 1140101603 Elbow
16 1060000039 Water pump
17 001612125А0200001 Mounting plate
18 1040300230 Washer
19 1040300063 Washer
20 1040100073 Screw
21 1140101533 Hinge joint
22 1140101538 PSR cutting sleeve
23 1140101595 Nut
24 001692506А0000002 Steel tube
25 1140101911 Straight female joint
26 1140101560 Inner joint
27 1140101624 T-joint
28 1010300521 Ball valve
29 001609321А0000001 Mounting board of off let port
30 1140101420 Elbow
31 1140101411 Differential mail joint
32 1140101422 Fire joint
33 001611525А0100005 Hose joint
34 1990200361 Clamp
35 001692505А0000002 Canvas hose
36 001610753В0000006 Air valve joint
