Каталог запасных частей к технике: Zoomlion 47X-5RZ. POWER-PUMPS PIPE LINE
1
1
2
2
3
3
4
5
6
7
8
9
10
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
43
44
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

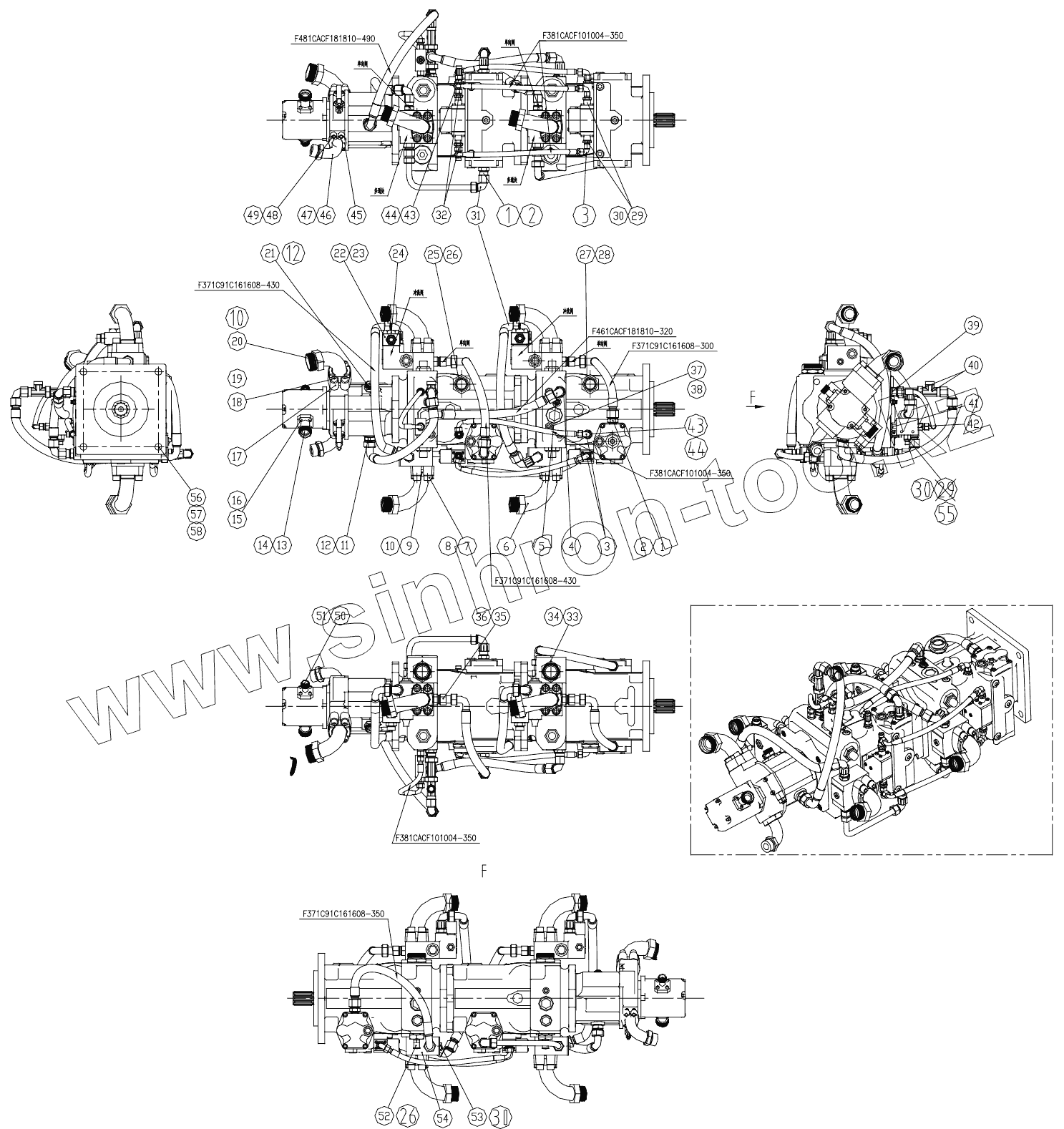

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1140101459 | Straight joint | |
| 2 | 1081000485 | Rhombus seal | |
| 3 | 1140101476 | Right angle built-up joint | |
| 4 | 1140101455 | Straight joint | |
| 5 | 1140101479 | Elbow joint | |
| 6 | 000198931A0600001 | Elbow flange joint | |
| 7 | 1040100361 | Screw | |
| 8 | 1040300068 | Washer | |
| 9 | 000198931A0700002 | High pressure flange haff | |
| 10 | 1081000474 | O-ring | |
| 11 | 000198930A1000009 | Joint | |
| 12 | 1081000484 | Rhombus seal | |
| 13 | 000198930A0600002 | Flange joint | |
| 14 | 1081000529 | O-ring | |
| 15 | 1040100105 | Screw | |
| 16 | 1040300062 | Washer | |
| 17 | 000198930A0700001 | Flange haff | |
| 18 | 1040100408 | Screw | |
| 19 | 1040300054 | Washer | |
| 20 | 000198930A0600007 | Elbow flange joint | |
| 21 | 000198930A0100014 | End straight connector | |
| 22 | 000198930A0520007 | T-joint | |
| 23 | 1081000425 | O-ring | |
| 24 | 000198930A0510006 | Bolt | |
| 25 | 1140101453 | End straight connector | |
| 26 | 1081000487 | Rhombus seal | |
| 27 | 1140101450 | Straight joint | |
| 28 | 1081000488 | Rhombus seal | |
| 29 | 000198930A0100056 | Straight joint | |
| 30 | 1081000480 | Rhombus seal | |
| 31 | 1140101632 | Elbow joint | |
| 32 | 1140101487 | Combined T-joint | |
| 33 | 1140101449 | Straight joint | |
| 34 | 1081000489 | Rhombus seal | |
| 35 | 1140101561 | Straight joint | |
| 36 | 1081000486 | Rhombus seal | |
| 37 | 1140101583 | Screw plug | |
| 38 | 1081000479 | Rhombus seal | |
| 39 | 1140101631 | Straight joint | |
| 40 | 1140101488 | Combined T-joint | |
| 41 | 000198930A1000006 | Joint | |
| 42 | 000198930A1000005 | Joint | |
| 43 | 1140101446 | Straight joint | |
| 44 | 1081000483 | Rhombus seal | |
| 45 | 1140101563 | Flange half | |
| 46 | 000198931A0600006 | Flange joint | |
| 47 | 1081000472 | O-ring | |
| 48 | 1040100407 | Screw | |
| 49 | 1040300067 | Washer | |
| 50 | 000198930A0600003 | Flange | |
| 51 | 1081000476 | O-ring | |
| 52 | 000198930A1200002 | Joint | |
| 53 | 1140101558 | Screw plug | |
| 54 | 001605118A0002001 | Multi-channel | |
| 55 | 1140101468 | Straight joint | |
| 56 | 1040000556 | Bolt | |
| 57 | 1040300106 | Washer | |
| 58 | 1040300038 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
