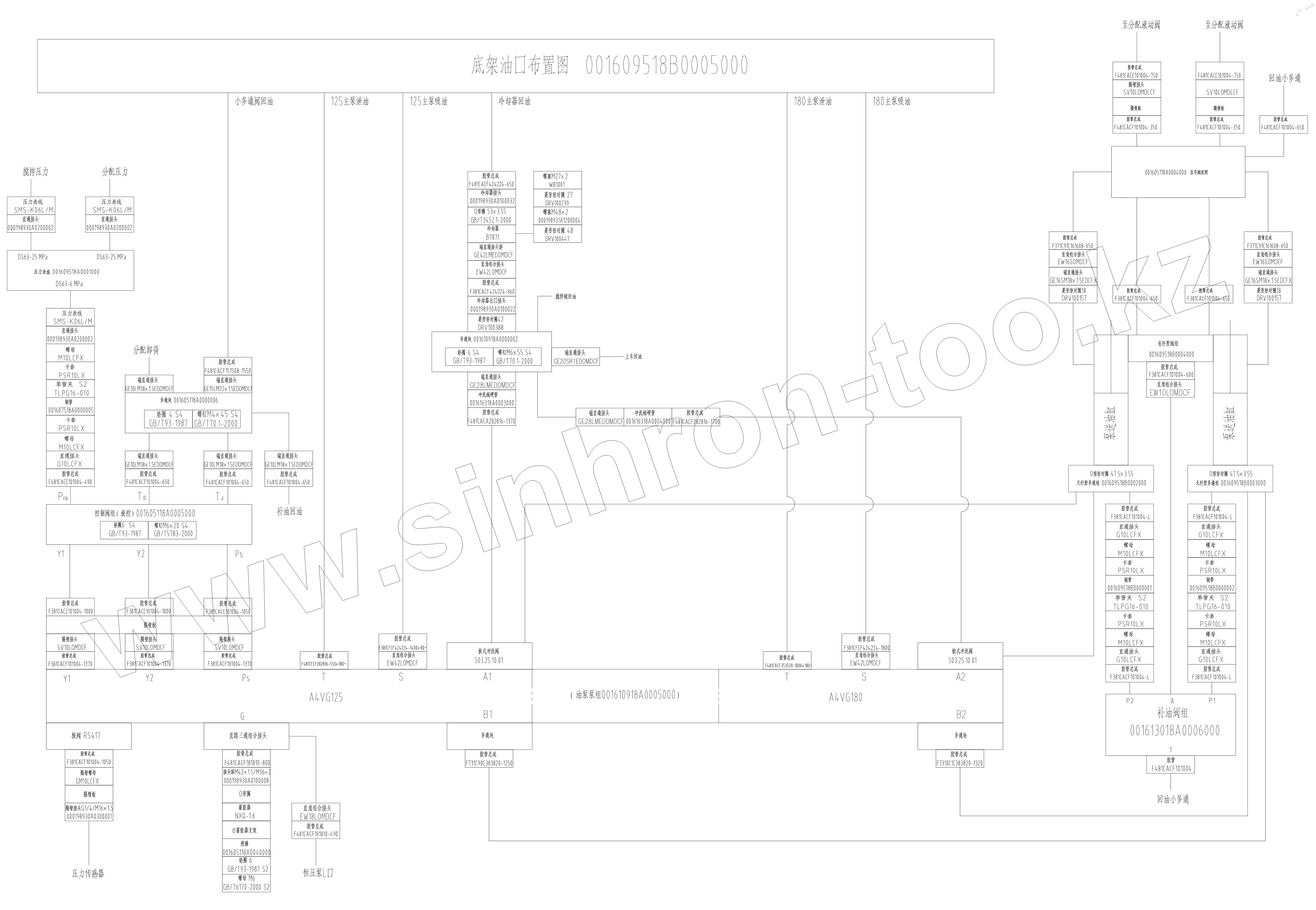

Каталог запасных частей к технике: Zoomlion 47X-5RZ. HYDRAULIC PIPELINE OF PUMPING
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 001609518B0005000 | Arrange plan | |
| 2 | 001610918A0005000 | Power-pump group | |
| 3 | 001613018A0006000 | Charge block | |
| 4 | 001605118A0005000 | Controlling valve group | |
| 5 | 001605118A0004000 | Signal valve group diagram | |
| 6 | 001609518B0004000 | Multi-port block | |
| 7 | 001609518B0002000 | Multi-port block 1 | |
| 8 | 001609518B0003000 | Multi-port block 2 | |
| 9 | 001605118A0000006 | Multi-port block | |
| 10 | 001610918A0000002 | Multi-port block | |
| 11 | 001609518A0001000 | Manometer mounting | |
| 12 | 001605118A0040000 | Small accumulator hoop | |
| 13 | 000198930A0100022 | End straight connector | |
| 14 | 000198930A0100032 | End straight connector | |
| 15 | 000198930A0100008 | Straight joint | |
| 16 | 000198930A0200002 | Straight-through connector | |
| 17 | 000198930A0300001 | Next door connector | |
| 18 | 1140102198 | Straight joint | |
| 19 | 1140101724 | Straight joint | |
| 20 | 1140101458 | End straight connector | |
| 21 | 1140101528 | Straight joint | |
| 22 | 1140101815 | Fitting | |
| 23 | 1140102457 | Straight joint | |
| 24 | 1140101427 | Straight joint | |
| 25 | 1140101516 | Straight-through partition connector | |
| 26 | 1140101598 | Clapboard nut | |
| 27 | 1140101476 | Right angle built-up joint | |
| 28 | 1140101632 | Elbow joint | |
| 29 | 1140101479 | Elbow joint | |
| 30 | 1140101480 | Elbow joint | |
| 31 | 1040300044 | Washer | |
| 32 | 1040300062 | Washer | |
| 33 | 1040000107 | Bolt | |
| 34 | 1040100349 | Screw | |
| 35 | 1040100355 | Screw | |
| 36 | 1040200111 | Nut | |
| 37 | 1081000435 | O-shaped sealing ring | |
| 38 | 1081000436 | O-ring | |
| 39 | 1081000483 | Rhombus seal | |
| 40 | 1081000486 | Rhombus seal | |
| 41 | 1081000488 | Rhombus seal | |
| 42 | 1081000489 | Rhombus seal | |
| 43 | 1140101659 | Screw plug | |
| 44 | 000198931A1200004 | Screw plug m48x2 | |
| 45 | 001607518A0000005 | Steel pipe | |
| 46 | 1140101588 | Nut | |
| 47 | 1140101496 | PSR cutting sleeve | |
| 48 | 1990200289 | Pipe clamp | |
| 49 | 1019900061 | Manometer pipe |
