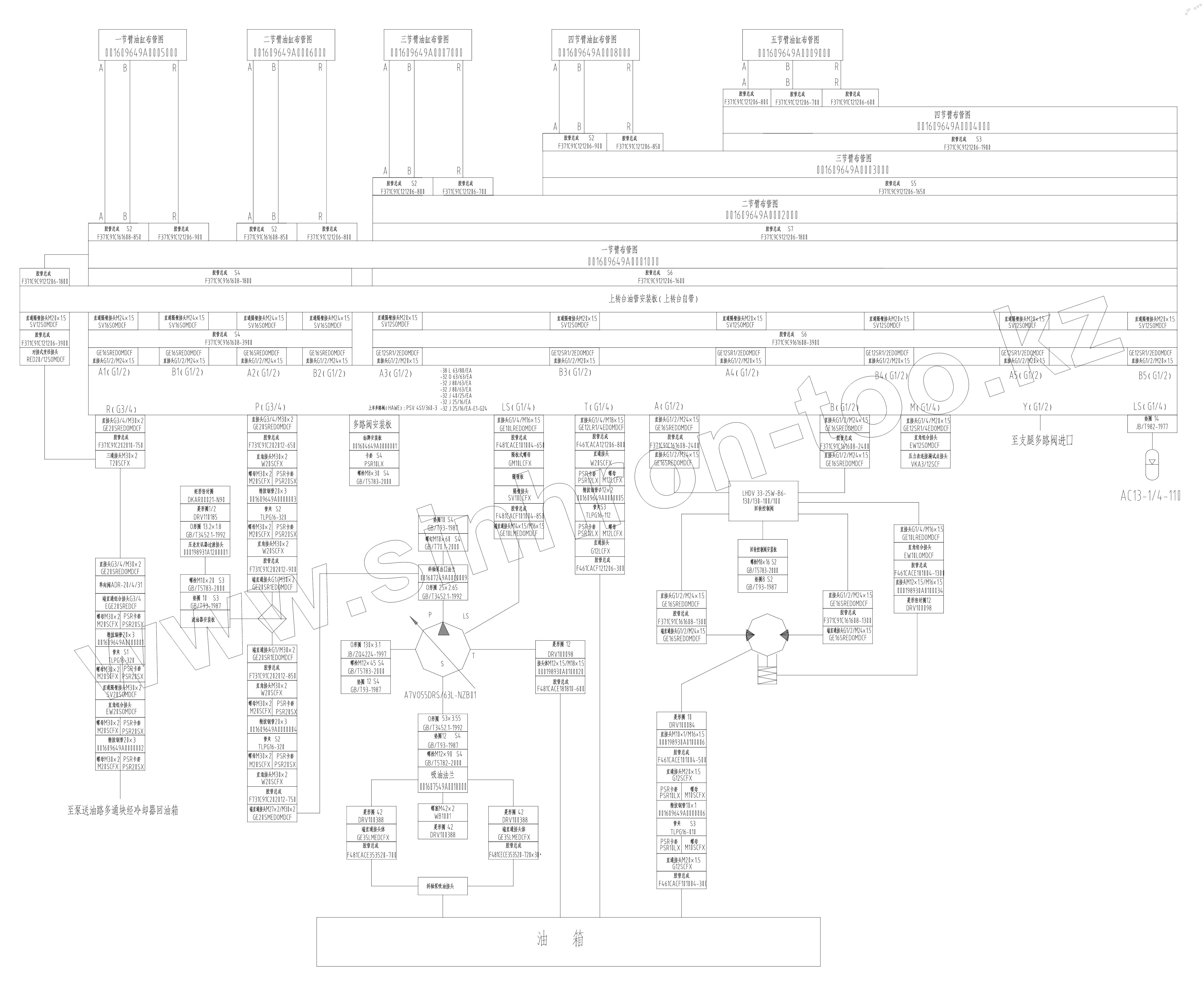

Каталог запасных частей к технике: Zoomlion 47X-5RZ. HYDRAULIC PIPELINE OF BOOM
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 001609649A0000001 | Steel pipe | |
| 2 | 001609649A0000002 | Steel pipe | |
| 3 | 001609649A0000003 | Steel pipe | |
| 4 | 001609649A0000004 | Steel pipe | |
| 5 | 001609649A0000005 | Steel pipe | |
| 6 | 001609649A0000006 | Steel pipe | |
| 7 | 001609649A0001000 | Pipeline of 1st boom | |
| 8 | 001609649A0002000 | Pipeline of 2st boom | |
| 9 | 001609649A0003000 | Pipeline of 3st boom | |
| 10 | 001609649A0004000 | Pipeline of 4st boom | |
| 11 | 001609649A0005000 | Pipeline of 1st cylinder | |
| 12 | 001609649A0006000 | Pipeline of 2st cylinder | |
| 13 | 001609649A0007000 | Pipeline of 3st cylinder | |
| 14 | 001609649A0008000 | Pipeline of 4st cylinder | |
| 15 | 001609649A0009000 | Pipeline of 5st cylinder | |
| 16 | 000198931A1200001 | Joint | |
| 17 | 001607249A0000009 | Flang | |
| 18 | 000198930A0100020 | Straight joint | |
| 19 | 000198930A0100034 | End straight connector | |
| 20 | 000198930A0100006 | End straight connector | |
| 21 | 001607549A0010000 | Suction flang | |
| 22 | 1140101517 | Straight clapboard joint | |
| 23 | 1140101441 | Straight clapboard joint | |
| 24 | 1140101697 | Bulkhead joint | |
| 25 | 1140101524 | Straight joint | |
| 26 | 1140101527 | Straight joint | |
| 27 | 1140101523 | End straight coupling | |
| 28 | 1140101461 | End straight coupling | |
| 29 | 1140101521 | End straight coupling | |
| 30 | 1140101529 | Straight joint | |
| 31 | 1140101528 | Straight joint | |
| 32 | 1140101520 | Straight joint | |
| 33 | 1140101450 | Straight joint | |
| 34 | 1140101662 | Straight joint | |
| 35 | 1140101425 | Straight joint | |
| 36 | 1140101509 | Straight joint | |
| 37 | 1140101598 | Clapboard nut | |
| 38 | 1140101439 | Bulkhead joint | |
| 39 | 1140101514 | T-joint | |
| 40 | 1140101515 | Radius accomodating Joint | |
| 41 | 1140101510 | Elbow joint | |
| 42 | 1140101512 | Elbow joint | |
| 43 | 1140101534 | Right angle built-up joint | |
| 44 | 1140101476 | Right angle built-up joint | |
| 45 | 1140101482 | Elbow joint | |
| 46 | 1140101532 | Straight combined joint | |
| 47 | 1140101574 | Manometer-test point joint | |
| 48 | 1140101588 | Nut | |
| 49 | 1140101496 | PSR cutting sleeve | |
| 50 | 1140101594 | Nut | |
| 51 | 1140101539 | Cover | |
| 52 | 1140101586 | Nut | |
| 53 | 1140101497 | PSR cutting sleeve | |
| 54 | 1081000478 | Rhombus seal | |
| 55 | 1081000490 | Rhombus seal | |
| 56 | 1081000488 | Rhombus seal | |
| 57 | 1081000479 | Rhombus seal | |
| 58 | 1081000570 | Rectangle- seal | |
| 59 | 1990200284 | Pipe clamp | |
| 60 | 1990200289 | Pipe clamp | |
| 61 | 1990200052 | Pipe clamp | |
| 62 | 1081000427 | O-ring | |
| 63 | 1081000436 | O-ring | |
| 64 | 1081000517 | O-ring | |
| 65 | 1081000612 | O-ring | |
| 66 | 1140101559 | Screw plug | |
| 67 | 1040100208 | Screw | |
| 68 | 1040000098 | Bolt | |
| 69 | 1040000116 | Bolt | |
| 70 | 1040000169 | Bolt | |
| 71 | 1040000225 | Bolt | |
| 72 | 1040300063 | Washer | |
| 73 | 1081000528 | Combination seal washer | |
| 74 | 1040300067 | Washer | |
| 75 | 1040300054 | Washer |
