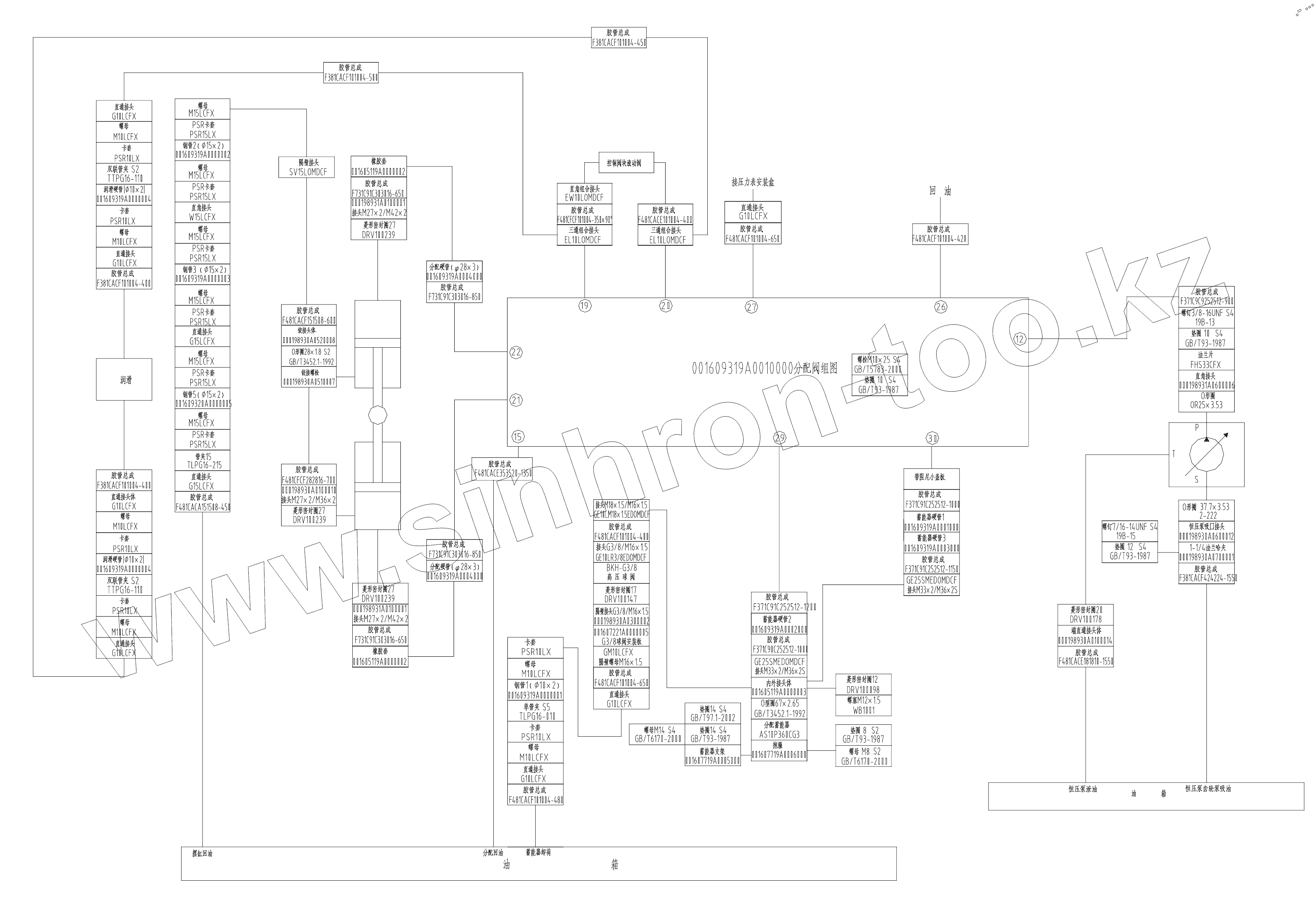

Каталог запасных частей к технике: Zoomlion 47X-5RZ. DISTRIBUTION PIPELINE
12
15
19
20
21
22
26
27
29
30
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 001609319A0000001 | Steel pipe | |
| 2 | 001609319A0000002 | Steel pipe | |
| 3 | 001609319A0000003 | Steel pipe | |
| 4 | 001609319A0000004 | Steel pipe | |
| 5 | 001609320A0000005 | Steel pipe | |
| 6 | 001605119A0000002 | Rubber sleeve | |
| 7 | 000198930A0510007 | Hinge bolt | |
| 8 | 000198930A0520008 | Hinge joint body | |
| 9 | 001609319A0001000 | Steel pipe | |
| 10 | 001609319A0002000 | Steel pipe | |
| 11 | 001609319A0003000 | Steel pipe | |
| 12 | 001609319A0004000 | Steel pipe | |
| 13 | 001609319A0010000 | Distribution block | |
| 14 | 000198930A0300002 | Bulkhead joint | |
| 15 | 001605119A0000003 | Internal and external joints | |
| 16 | 000198930A0600012 | Right angle flange joint | |
| 17 | 000198931A0100001 | End straight connector | |
| 18 | 000198930A0100014 | End straight connector | |
| 19 | 001607719A0005000 | Mounting bracket | |
| 20 | 001607719A0006000 | Hoop | |
| 21 | 000198930A0100010 | End straight connector | |
| 22 | 000198930A0700001 | Flange haff | |
| 23 | 000198931A0600006 | Flange joint | |
| 24 | 001607221A0000005 | Mounting plate | |
| 25 | 1990200289 | Pipe clamp | |
| 26 | 1990200302 | Clamp halves | |
| 27 | 1990200114 | Pipe clamp | |
| 28 | 1040000114 | Bolt | |
| 29 | 1040100407 | Screw | |
| 30 | 1040100408 | Screw | |
| 31 | 1040200192 | Nut | |
| 32 | 1040200112 | Nut | |
| 33 | 1040300063 | Washer | |
| 34 | 1040300067 | Washer | |
| 35 | 1040300054 | Washer | |
| 36 | 1040300068 | Washer | |
| 37 | 1040300055 | Washer | |
| 38 | 1081000479 | Rhombus seal | |
| 39 | 1081000482 | Diamond-shaped ring | |
| 40 | 1081000484 | Rhombus seal | |
| 41 | 1081000486 | Rhombus seal | |
| 42 | 1140101494 | PSR cutting sleeve | |
| 43 | 1140101589 | Nut | |
| 44 | 1140101496 | PSR cutting sleeve | |
| 45 | 1140101588 | Nut | |
| 46 | 1140101476 | Right angle built-up joint | |
| 47 | 1140102198 | Straight joint | |
| 48 | 1140101563 | Flange half | |
| 49 | 1140101427 | Straight joint | |
| 50 | 1140101426 | Straight joint | |
| 51 | 1140101429 | Elbow joint | |
| 52 | 1140101647 | Straight joint | |
| 53 | 1140101941 | End straight connector | |
| 54 | 1140101598 | Clapboard nut | |
| 55 | 1140101438 | Straight-through partition connector | |
| 56 | 1140101487 | Combined T-joint | |
| 57 | 1081000426 | O-ring | |
| 58 | 1081000472 | O-ring | |
| 59 | 1081000474 | O-ring | |
| 60 | 1081000586 | O-ring | |
| 61 | 1140101583 | Screw plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
