Каталог запасных частей к технике: Zoomlion 47X-5RZ. CLEANING SYSTEM

Тип техники

Марка

Модель

Схема

1

2

2

2

2

3

4

5

6

7

8

9

10

10

11

11

11

12

12

12

12

13

14

15

16

17

18

19

20

21

21

21

21

22

23

24

25

26

27

28

29

29

30

30

31

32

33

34

35

36

36

36

37

38

39

40

41

41

42

43

44

45

45

46

46

47

48

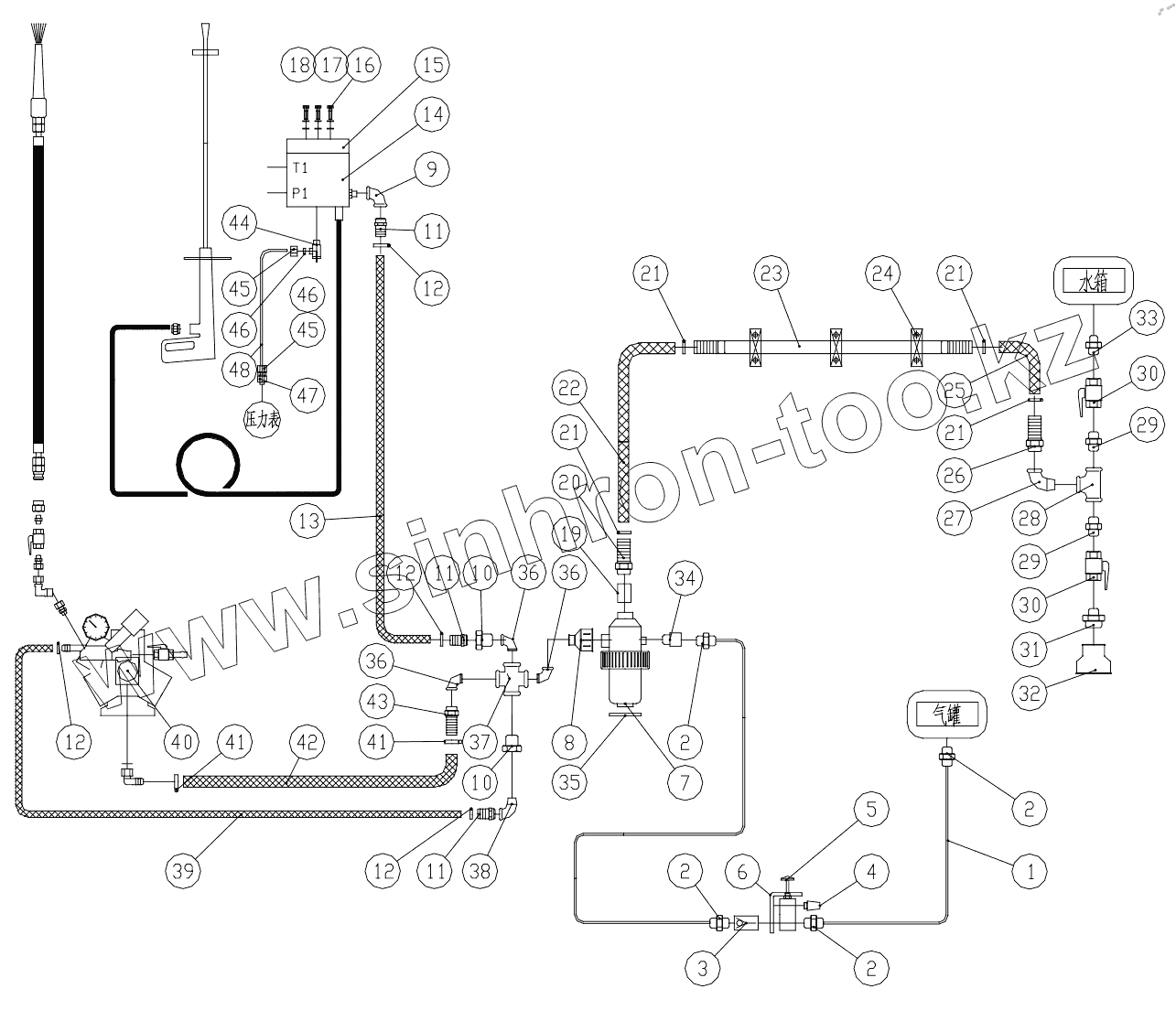

Позиция на иллюстрации	Заводской номер детали		Название детали
1	001692506A0000001		Plastic trachea
2	1140102321		Quick joint
3	1010300532		Check valve
4	1000200035		Muffler
5	1070500151		Manual valve
6	001611525A0100002		Mounting plate
7	1010600243		Filter
8	1140103496		Joint
9	1140101603		Elbow
10	1140102044		Screw
11	001611525A0100003		Leather pipe joint 3/4"x20
12	1990200360		Clamp
13	001611525A0200002		Cloth oil-resistant hose
14	1060000039		Water pump
15	001611525A0200001		Plate
16	1040300230		Washer
17	1040300063		Washer
18	1040100073		Screw
19	1140103495		Joint
20	001692505A0000001		Joint
21	1990200362		Steel clamp
22	001611525A0100008		Rubber pipe
23	001611525A0101000		Steel pipe
24	1990200358		Steel clamp
25	001611525A0100012		Rubber pipe
26	001611525A0100006		Joint
27	1140102022		Joint
28	1140102023		Joint
29	1140102031		Joint
30	1060100002		Water valve
31	1140102032		Joint
32	1140101422		Fire joint
33	1060300042		Joint
34	001610753B0000006		Air valve adapter
35	1140102026		Joint
36	1140102028		Joint
37	1140102020		Joint
38	001611525A0100010		Rubber pipe
39	1060000009		Water pump
40	1990200361		Clamp
41	001611525A0100011		Rubber pipe
42	001611525A0100005		Leather pipe joint
43	001611521A0100003		Water pump pedestal
44	1140101595		Nut
45	1140101538		PSR cutting sleeve
46	1140101533		Hinge joint
47	1140101911		Straight female joint
48	001692506A0000002		Steel pipe
