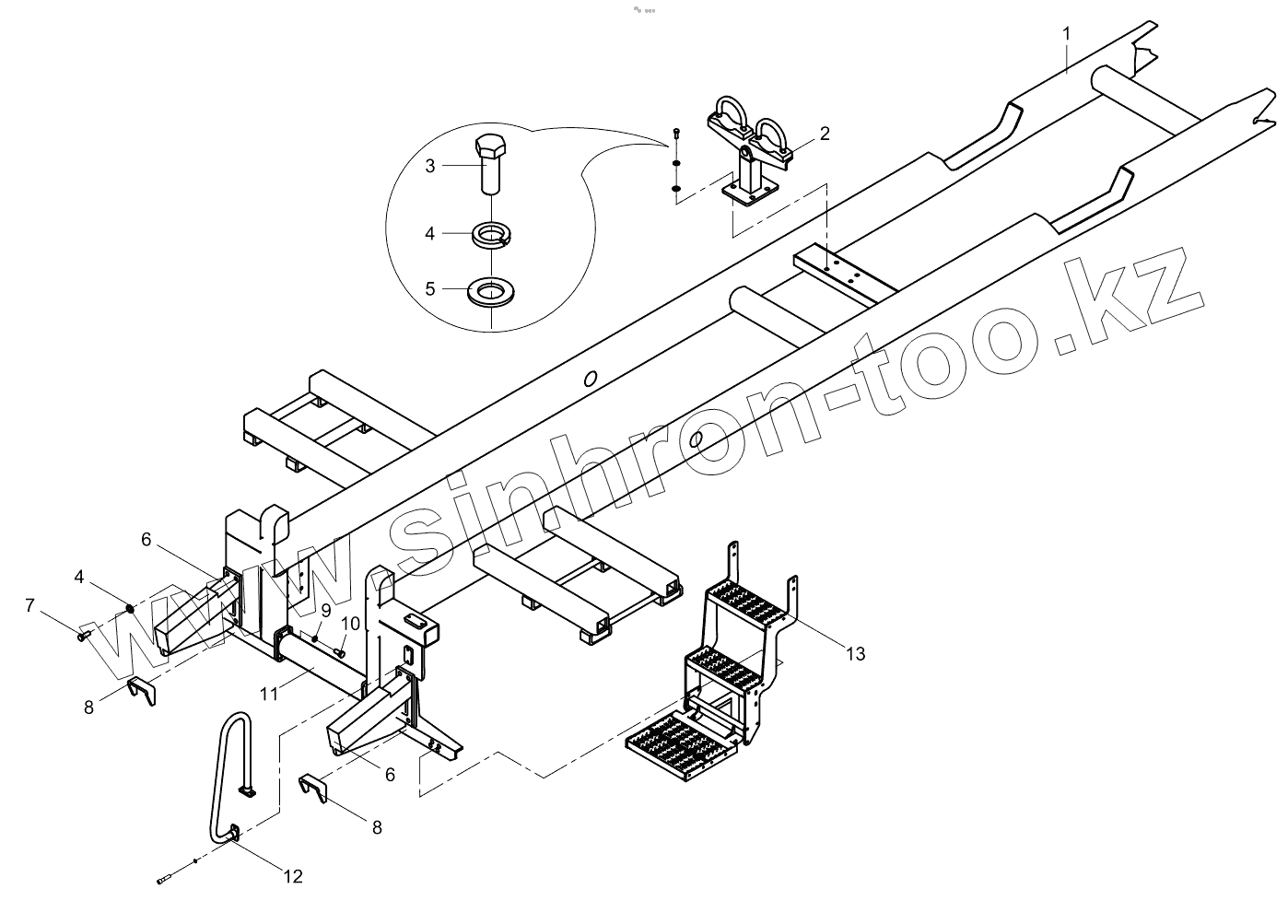

Subframe assembly 001615402G0100000
Каталог запасных частей к технике: Zoomlion 33X-4Z. Subframe assembly 001615402G0100000
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
33X-4Z
47X-5RZ
K56X-6RZ
PL2304 (2021)
QUY260CR-32Y
QY55V53232Z
RN (90-110 л.с.)
RS (2021)
RT-100 (2013)
RT-35 (2013)
RT-55 (2013)
RT-551 (4x4) (2013)
RT-75 (2013)
ZCC1100H (2014)
ZD160T(S,SH, CS)-3 (2012)
ZE205E (2013)
ZLJ5480JQZV3 (2013)
ZLJ5500V3 (2013)
ZLJ5550JQZV3.2 (2016)
ZT20J (2019)
ZT68J (2019)
Схема
>
Не выбрано
Boom assembly 001615406A0000000
One-section arm 001615406A0100000
Two-section arm 001615406A0200000
Three-section arm 001615406A0300000
Four-section arm 001615406A0400000
Rotary assembly 001607105A0000000
Rotary reducer assembly 1030200162
Chassis outrigger assembly 001615403A0000000
Left front leg 001615403A0200000
Right front leg 001615403A0300000
Chassis 001615403A0100000
Rear outrigger 001615403A0400000
Four-arm support 001615403A0800000
Boom cylinder assembly 001615407A0000000
One-section arm cylinder 001615407A0100000
Two-section arm cylinder 001615407A0200000
Three-section arm cylinder 001615407A0300000
Four-section arm cylinder 001615407A0400000
Outrigger cylinder assembly 001615404A0000000
Left front horizontal telescopic cylinder 001615404A0700000
Right front horizontal telescopic cylinder 001615404A0800000
Rear horizontal telescopic cylinder 001615404A0900000
Outrigger vertical cylinder 001615404A0300000
Pumping unit 001615401A0000000
Hopper assembly 001690107A0000000
Mixing mechanism 001690401A0000000
Distribution valve assembly 001690201A0000000
Distribution valve assembly 001690201A0000000
Distribution valve assembly 001690201A0000000
S tube assembly 001690201A0200000
Left swing cylinder 000190201A0200000
Right swing cylinder 000190201A0300000
Pumping mechanism 001690307A0000000
Concrete piston 001696901A0000000
Pumping cylinder assembly 001696101A0000000
Left cylinder 001696101A1000000
U-shaped tube 1 001696101A0100000
Oil cylinder 001696101A0200000
U-shaped tube 2 001696101A0300000
Right cylinder 001696101A2000000
U-shaped tube 1 001696101A0100000
Oil cylinder 001696101A0200000
U-shaped tube 2 001696101A0300000
Boom conveyor pipe assembly 001615406A1100000
Get off the conveyor pipe assembly 001615402A0200000
Chassis modification 001615453J0000000
Power take-off box assembly 001615453E0100000
Pneumatic device 001605153A0600000
Frame and protection assembly 001615402D0000000
Subframe assembly 001615402G0100000
Walking platform and accessories 001615402A0400000
Boom support assembly 001615402A0500000
Cushion frame assembly 001610902A0700000
Tool box assembly 001604402A0600000
Pumping hydraulic schematic diagram 001615417A0000000
Oil suction filter 1010600039
Oil return filter 1010600052
Cooler 1010400026
Mixing motor 1010100059
Electromagnetic reversing valve 1010300527
Electromagnetic reversing valve 1010300582
Accumulator 1010800017
Electromagnetic reversing valve 1010300555
Accumulator 1010800027
Oil suction filter 1010600435
Absorbent filter 1060200000
Electromagnetic reversing valve 1010300526
Pumping oil circuit layout diagram 001615418A0000000
Chassis oil port layout diagram 001615418A0001000
Main valve block mounting frame 001615418A0002000
High and low pressure switching valve set 001614718A0002000
Rexroth open type 190 pump set 001607118A0103000
Rod multi-pass block group 001609118A0003000
Signal valve group diagram 001605118A0004000
Oil replenishment valve set 001607118A0104000
Rodless cavity multi-pass group 001605118A0006000
Distribution oil circuit layout diagram 001615419A0000000
Distribution valve block mounting frame 001615419A0001000
Distribution valve set 001605119A0010000
Mixing and cleaning oil circuit layout diagram 001615420A0000000
Mixing and cleaning valve set 001607220A0010000
Chassis hydraulic schematic diagram 001615458A0000000
Chassis layout diagram 001615457A0000000
Chassis layout diagram 001615457A0000000
Left front outrigger cloth tube diagram 001615457A0002000
Right front outrigger cloth tube diagram 001615457A0003000
Rear outrigger cloth tube diagram 001615457A0004000
Left front horizontal telescopic cylinder layout diagram 001615457A0005000
Right front horizontal telescopic cylinder layout diagram 001615457A0006000
Rear horizontal telescopic cylinder layout diagram 001615457A0007000
Hydraulic schematic diagram of boom 001615450A0000000
Oil suction filter 1010600435
Multi-way valve assembly (six-in-one) 001607150A0010000
Terminal block 1010300584
Boom layout diagram 001615449A0000000
One-section arm cloth tube diagram 001615449A0001000
Two-section arm cloth tube diagram 001615449A0002000
Three-section arm cloth tube diagram 001615449A0003000
One-section arm cylinder layout diagram 001615449A0004000
Two-section arm cylinder layout diagram 001615449A0005000
Three-section arm cylinder layout diagram 001615449A0006000
Four-section arm cylinder layout diagram 001615449A0007000
Cleaning system 001692505A0000000
Lubrication system 001692401A0000000
Pneumatic lubrication pump set 1070000000
Mesh filter 1010600044
Chassis wiring harness 001600027309B3A00
Chassis signal adapter wiring harness 001600027160A3B00
Multi-way valve wiring harness 001600027303J3A00
Main valve block wiring harness 001600027304L3A00
Wiring harness near the turntable 001600027305A3D00
Wiring harness near hopper 001600027306E3A00
Outrigger control box wiring harness 001600027301B3C00
Small support wiring harness 001600027315D3A00
Remote control and bus wiring harness 001600027302G3A00
Filter element and sensor wiring harness 001600027307G3A00
Proximity switch wiring harness 001600027313B3A00
Pneumatic lubrication arm limit wiring harness 001600027314B3B00
Fan level wiring harness 001600027316A3C00
Boom electric flute wiring harness 001600027321A3A00
Boom height indicator wiring harness 001600027322A3B00
Outrigger operation box and integrated control box 001615427330A1AT2
Encoder and sensor 001615427330A1AT3
Proximity switch 001615427330A1AT4
Limit switch 001615427330A1AT5
Valve block assembly 001615427330A1AT6
Pump truck lamps, electric flute assembly 001615427330A1AT7
Main control cabinet 001615427330A1AT8
Remote control 0016RMD1020201126
1
2
3
4
4
5
6
6
7
8
8
9
10
11
12
13
Позиция на иллюстрации
Заводской номер детали
Название детали
1
001615402G0110000
Subframe welding body
2
001605102A0102000
Pumping support
3
1040000129
Bolt
4
1040300038
Washer
5
1040300106
Washer
6
001615402A0100200
Hopper bracket
7
1040000232
Bolt
8
001615402A0100001
Unloading block
9
1040300068
Washer
10
1040000164
Bolt
11
001615402A0100100
Connecting beams
12
001612702A0102000
Armrest
13
001615402A0101000
Stair assembly
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
